USED 2003 NAKAMURA-TOME SUPER NTJ
Overview
Specifications
| # Axis | 9 | 9 |
|---|---|---|
| Swing | 26" | 660.4 mm |
| Machining Length | 24.41" | 620.01 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 7.48" | 189.99 mm |
| Tailstock | No | No |
| Control | CNC (Fanuc 18i-T) | CNC (Fanuc 18i-T) |
| Dimensions | 156″ x 94″ x 89″ Height | 156″ x 94″ x 89″ Height |
| Weight | 27,500 lbs Approx | 27,500 lbs Approx |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

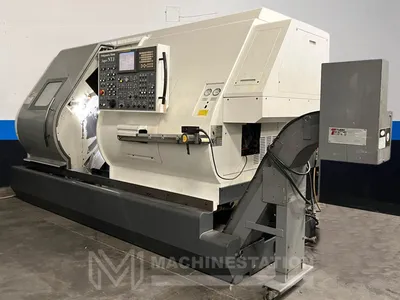

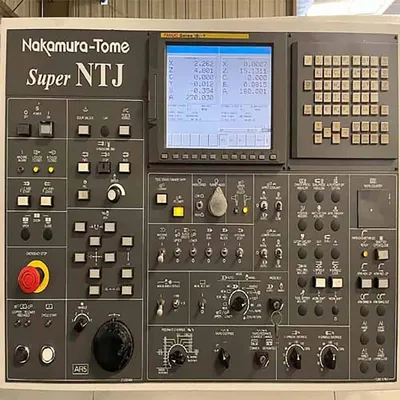

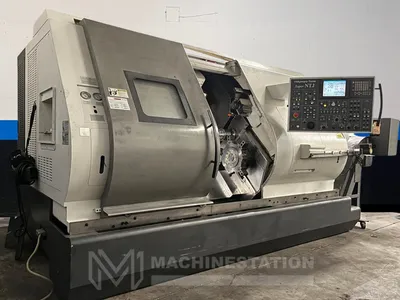

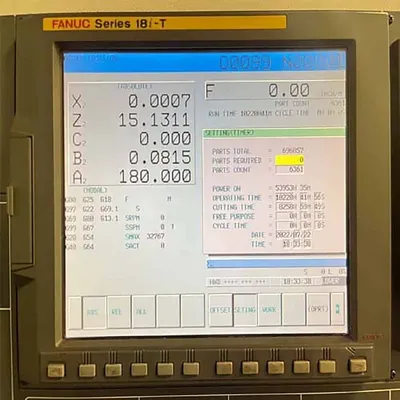

Fanuc 18i-T CNC Control
8,258 Hours Cutting Time
Both Spindle Synchronization
Coolant Tank
Capacity:
Max Turning Diameter Upper Turret : 7.48″
Max Turning Diameter Lower Turret : 7.48″
Max Swing : 26.0″
Max Swing with Cross Slide: 7.48″
Max Turning Length: 24.41″
Max Bar Capacity Main Spindle : 2.56″
Max Bar Capacity Sub Spindle : 2.00″
Distance Between Spindle Centers: 8.27″ – 38.19″
Travels:
X1 Axis Travel : 13.58″
X2 Axis Travel : 6.59″
Z1 Axis Travel : 48.82″
Z2 Axis Travel : 26.97″
Y Axis Travel: 3.54″( +/- 1.77″)
B1 Axis Indexing (Upper Turret): 182 Degree( +/- 91 Degree)
B2 Axis Travel (Sub Spindle) : 29.52″
C Axis: 360° (0.001°)
Feedrate: Rapid Traverse
X Axis: 630 IPM Rapid Traverse
Y Axis: 236 IPM Rapid Traverse
Z Axis: 1575 IPM Rapid Traverse
Spindle:
Main Spindle Bore: 3.15″
Sub Spindle Bore: 2.48″
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 4500 RPM
Sub Spindle Speed: 5000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 15 HP
Turret:
Upper Turret Capacity: 12 Stations – – 24 Positions
Lower Turret Capacity: 12 Stations – – 24 Positions
Live Milling Speed: 6000 RPM
Live Milling Motor: 7.5 HP
Turret Index Time (Tool to Tool): 0.2 sec
Tool Holders Type: BMT
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Bar Feeder: 93″ X 48″ X 59″ Height
Chip Conveyor & Coolant Tank: 200″ X 63″ X 66″ Height
High Pressure Pump: 45″ X 24″ X 40″
Machine Dimensions: 156″ x 94″ x 89″ Height
Machine Weight: 27,500 lbs Approx
Equipped With
Collet Chuck on Main Spindle (Capable 6″ Chuck)
Collet Chuck on Sub Spindle (Capable 6″ Chuck)
Servo Controlled Full C-Axis on Both Spindles
Twin Turrets with Live Tools
Radial and Axial Live Tooling on Both Turrets

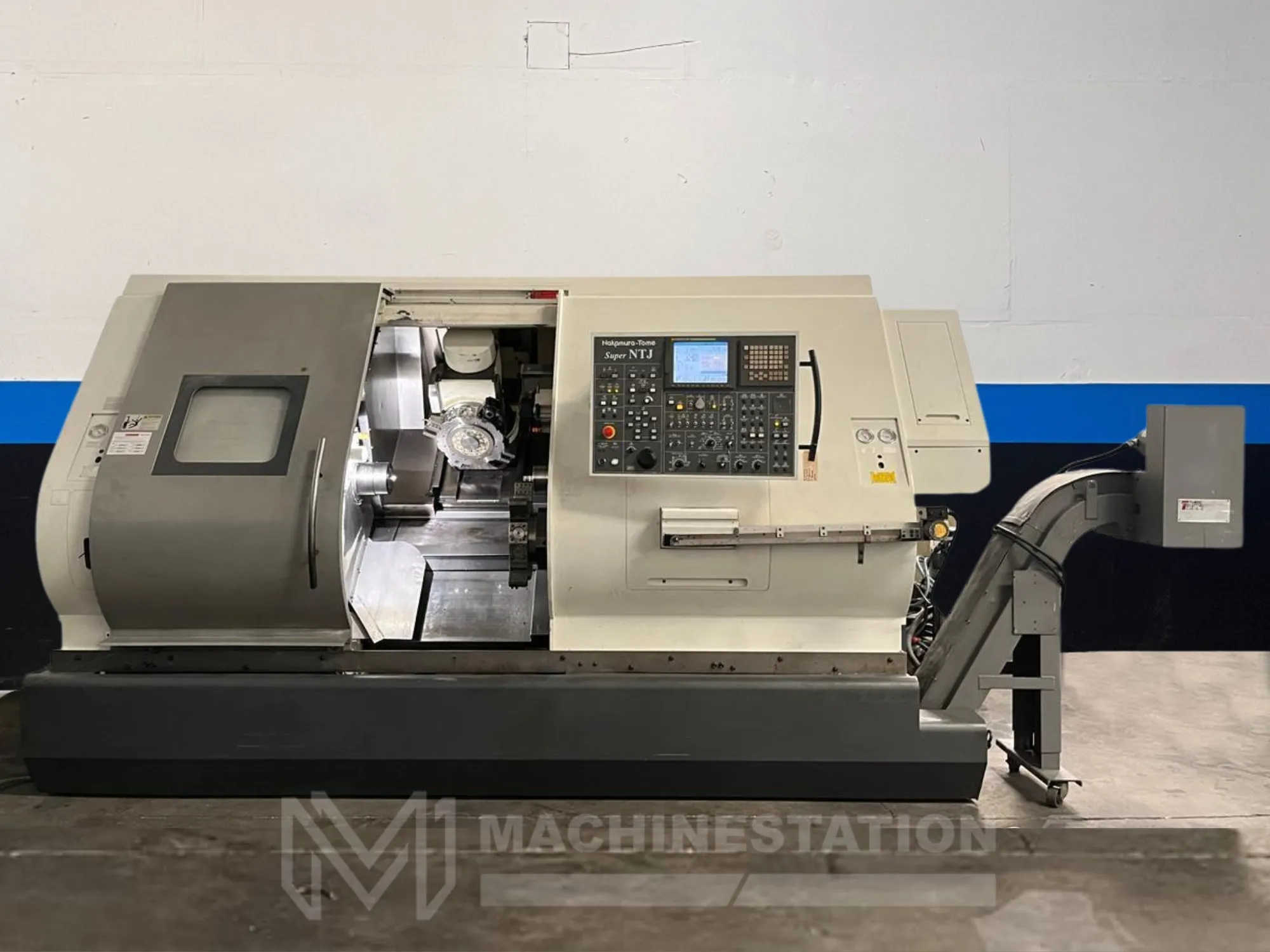

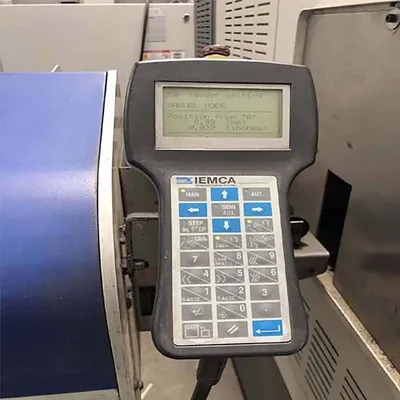

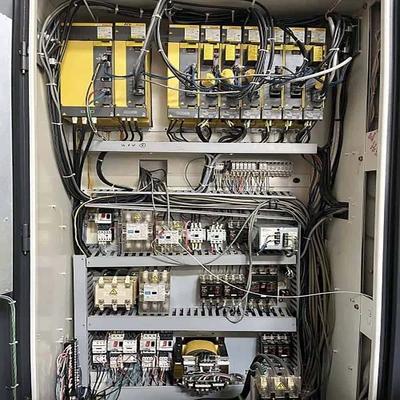

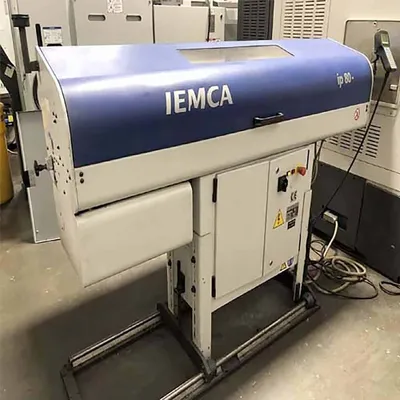

Comes with IEMCA VIP-80E Bar Feeder
12 Station Upper Turret – 24 Positions
12 Station Lower Turret – 24 Positions
Y Axis Capability on Upper Turret
Auto Parts Catcher
High Pressure Coolant System
Foot Switches
Chip Conveyor
Parts Conveyor
Books and Manuals

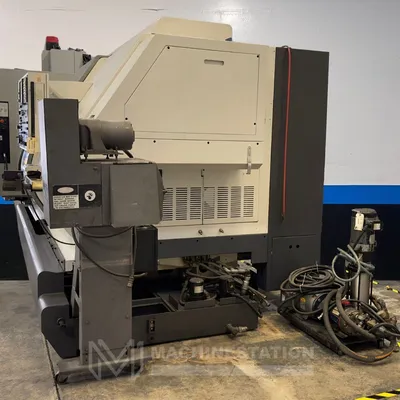

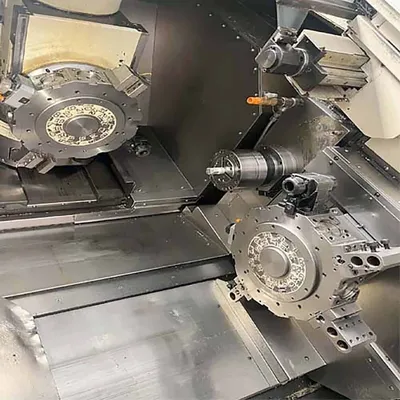

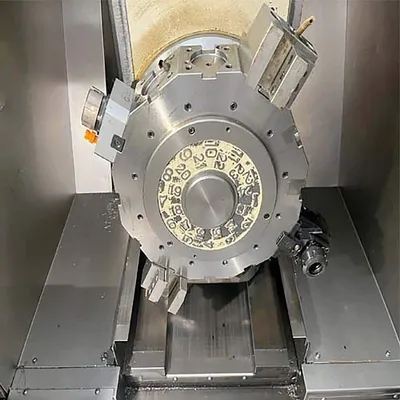

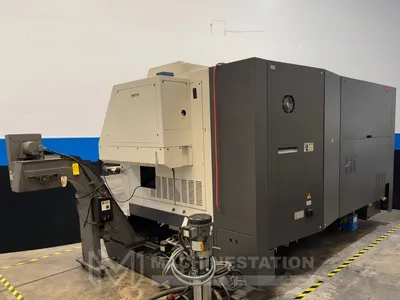

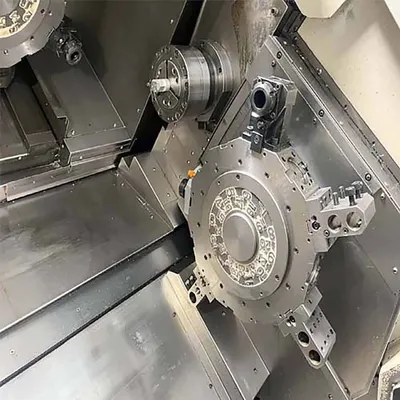

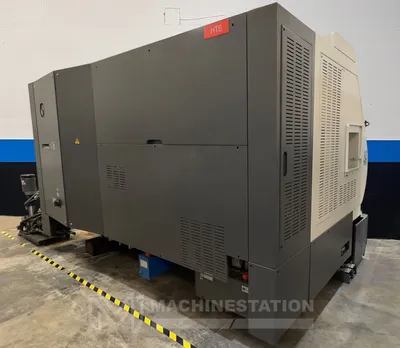

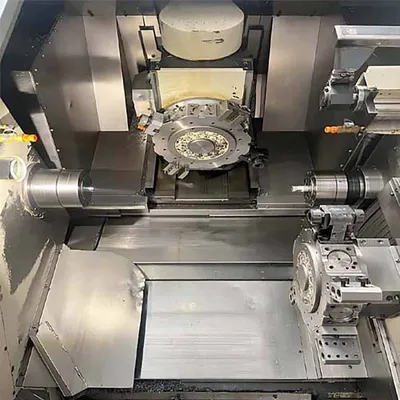

Misc. Tool Holders (Mounted on Turrets as shown in the images)
