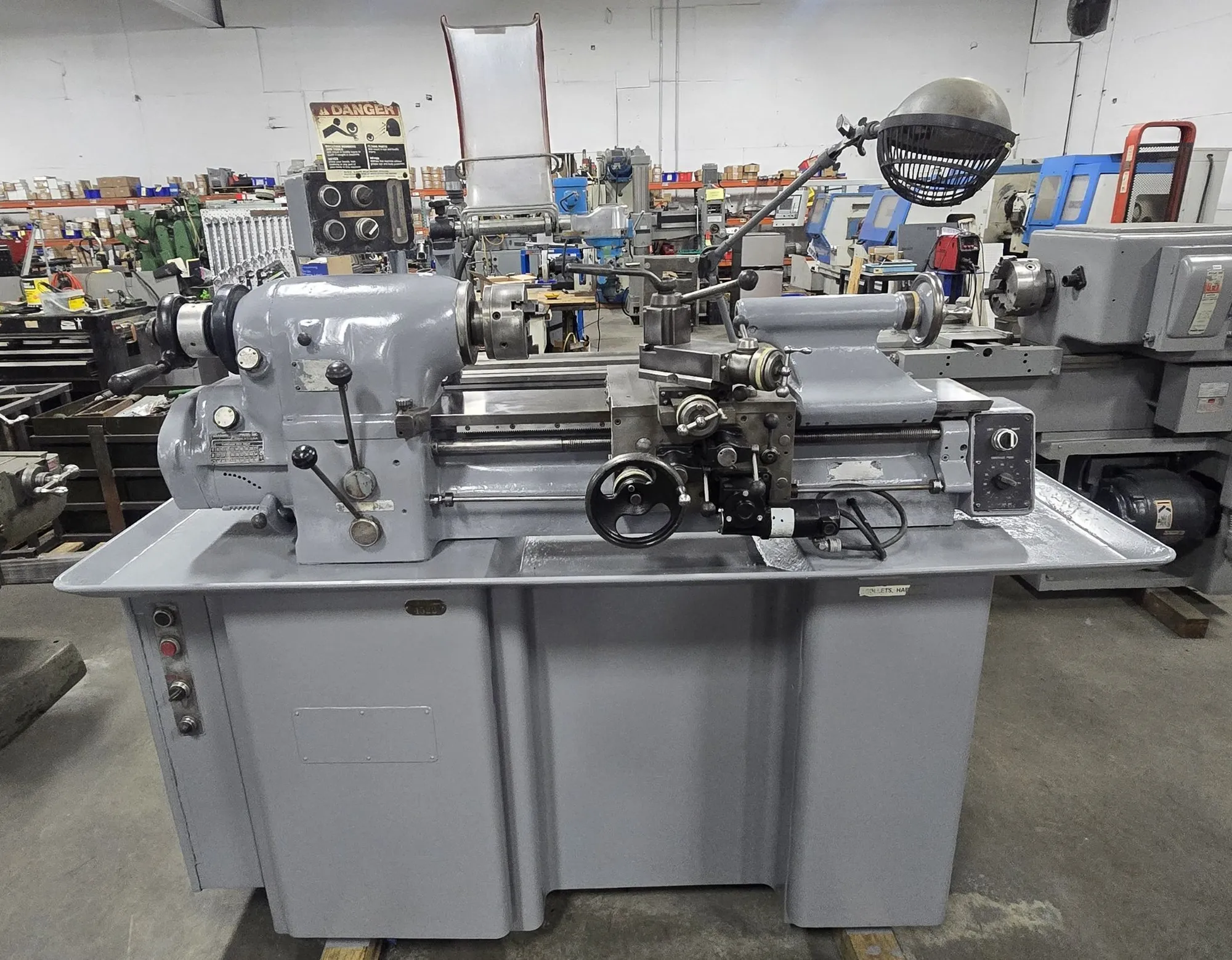

11" x 18" Hardinge HLV-H Wide Bed Lathe, ideal for toolroom use. Features: 1.5 HP, 3000 RPM, 11" swing, 20" centers, 1.25" spindle bore. Comes with inch threading, tailstock, tool post, 5C collet closer, and 6" 3-jaw chuck.
| Swing | 11" | 279.4 mm |
| Centers | 20" | 508 mm |
| Spindle Bore | 1.25" | 31.75 mm |
| Power | 1.5 hp | 1.1 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Swing Over Cross Slide | 5.75" | 146.05 mm |
| Dimensions | 6 Ft. x 3 Ft. x 5 Ft. | 6 Ft. x 3 Ft. x 5 Ft. |
Hardinge HLV-H Wide Bed Tool Room Lathe
SPEC SHEET
Max Swing Over Bed: 11″
Max Swing Over Carriage: 9″
Max Swing Over Cross Slide: 5.75″
Compound Slide Travel: 3″
DISTANCE BETWEEN CENTERS
– Tailstock Flush: 18″
– Tailstock Overhung: 20″
Power Feed Range: 0.25 IPM – 7 PM
Longitudinal Feed Rate: 0.31 IPM – 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75″
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25″
1.5 HP Variable speed,
Spindle Speeds (Variable): 125 – 3000 RPM
Spindle Nose: Hardinge Tapered
Power 440 Volts / 60 Hertz / 3 Phase ,
Dimensions 6 Ft. x 3 Ft. x 5 Ft.
Hardinge HLV-H Wide Bed Tool Room Lathe
Inch Threading,
Tailstock,
Tool Post w/Holders,
Power Feeds,
5C Collet Closer, w/collets
Trava-Dial,
6” 3-Jaw Chuck
