JUST SOLD. Reach out to us to review inventory and verify current availability so we can secure the right unit for you.
| Max Profile Width | 49" | 1,244.6 mm |
| Minimum Profile Width | 2.375" | 60.325 mm |
| Max Profile Height | 20" | 508 mm |
| Minimum Profile Height | 0.375" | 9.525 mm |
| Layout Marking | Yes | Yes |

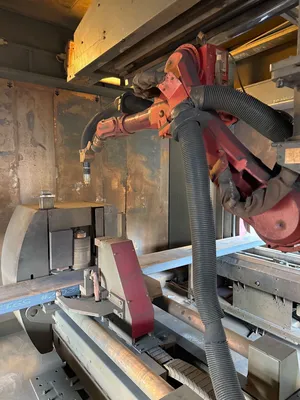

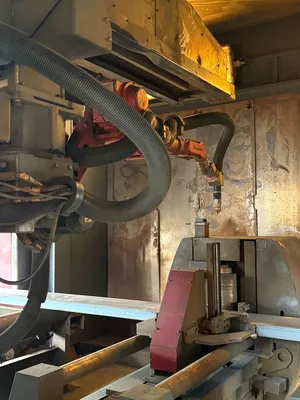

| Power Source | Hypertherm XPR300 Core | Hypertherm XPR300 Core |
| Amps | 300 | 300 |
| Bevel | Yes | Yes |
| Material Thickness | 3.125" | 79.375 mm |
| In-feed Conveyors | 61' | 18,593 mm |
| In-feed Transfers | 13' | 3,962.4 mm |
| Out-Feed Conveyors | 62' | 18,898 mm |
| Out-Feed Transfers | 13' | 3,962.4 mm |

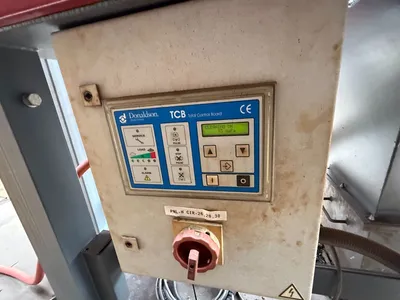

| Dust Collector | Donaldson DFPRO 8 Downflow dust extraction unit. | Donaldson DFPRO 8 Downflow dust extraction unit. |

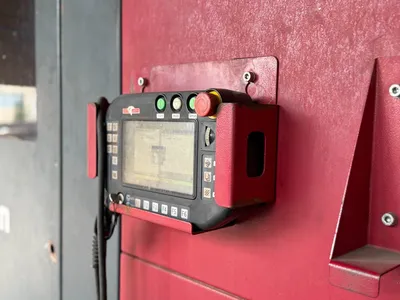

| Control | CNC (VACAM Control) | CNC (VACAM Control) |
| Weight | 24,200 Ibs | 24,200 Ibs |
Machine orientation: From Left to Right or from Right to Left
Machine Running: 48,374.43
Production Time: 2,446.59 hrs

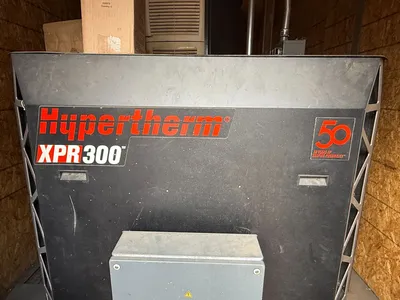

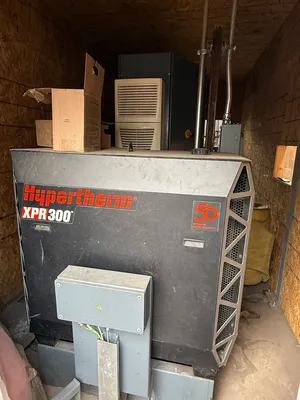

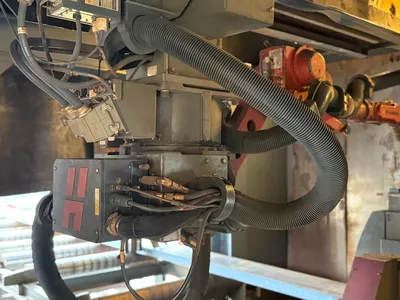

● Hypertherm XPR300 Core

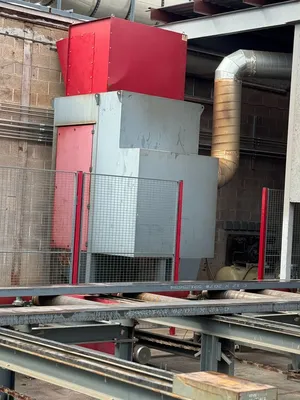

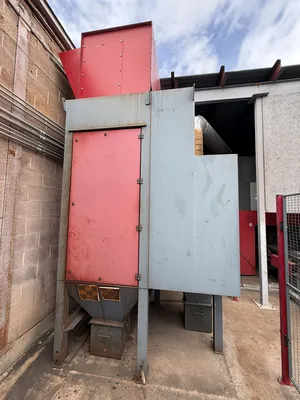

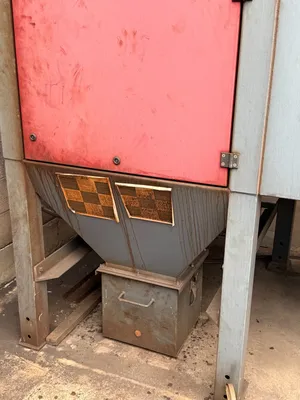

● Donaldson DFPRO 8 Downflow dust extraction unit.

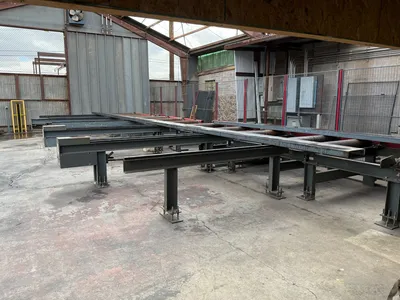

Infeed and Outfeed Components:
● Telescopic roller conveyor outfeed side (1 pcs, for automatic outfeed till 4-1/2 ft)

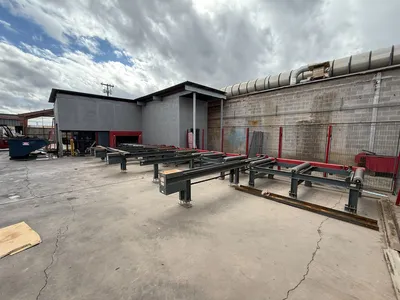

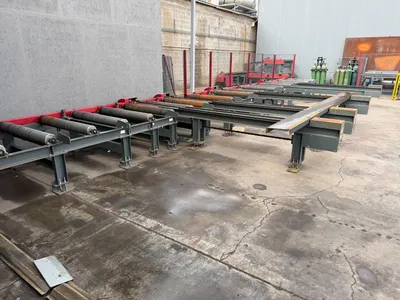

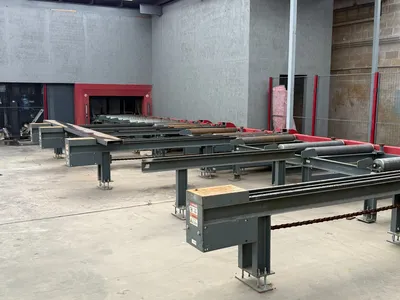

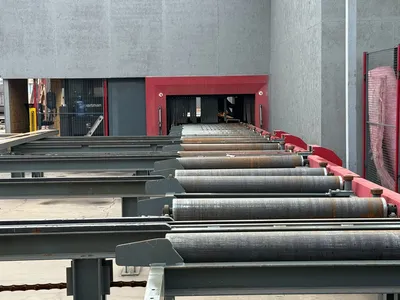

● Infeed Roller Conveyor (RC1):
○ Lengths up to 61 ft (min. 8-1/4 ft), Weight: 270 lbs/ft.
○ Width: 50", Roll Diameter: 6-1/4".

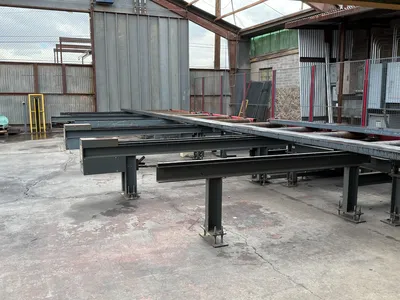

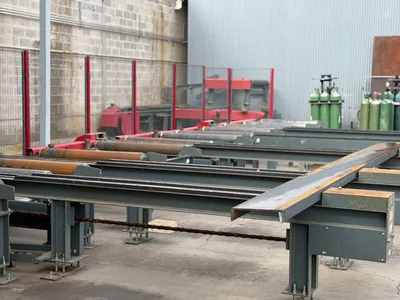

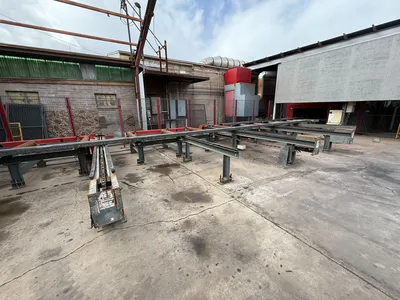

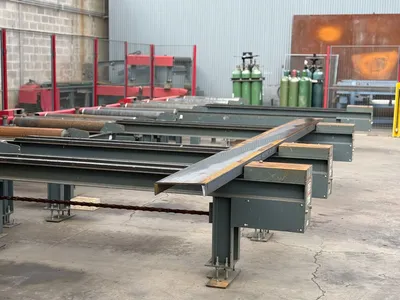

● One-Way Infeed Cross Transport (CT1):
○ Equipped with mechanical drag-dogs.
○ Length: 13 ft with 4 supports.
○ Fully loaded transport capacity: Profiles up to 270 lbs/ft.

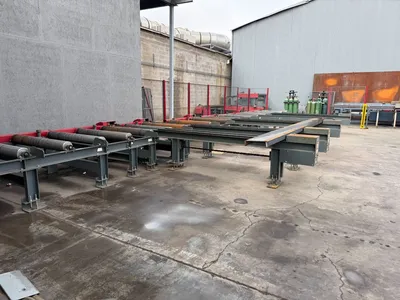

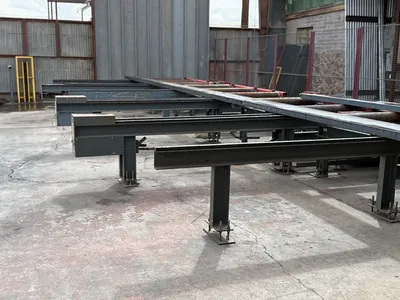

● Outfeed Roller Conveyor (RC2):
○ Lengths up to 31 ft (min. 4-1/2 ft), Weight: 270 lbs/ft.
○ Width: 50", Roll Diameter: 6-1/4".

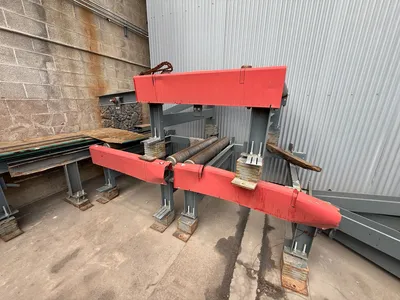

● One-Way Outfeed Cross Transport (CT2):
○ Equipped with mechanical drag-dogs.
○ Length: 13 ft with 4 supports.
○ Fully loaded transport capacity: Profiles up to 270 lbs/ft.
● Outfeed Roller Conveyor (RC3):
○ Lengths up to 31 ft (min. 4-1/2 ft), Weight: 270 lbs/ft.
○ Width: 50", Roll Diameter: 6-1/4".

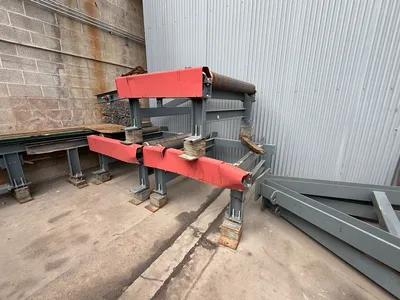

● One-Way Outfeed Cross Transport (CT3):
○ Equipped with mechanical drag-dogs.
○ Length: 13 ft with 4 supports.
○ Fully loaded transport capacity: Profiles up to 270 lbs/ft.

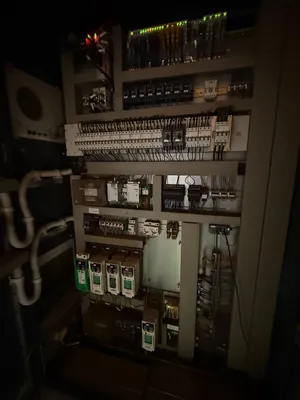

● Air Conditioning for Switch Panel:
○ Designed to maintain optimal operation in ambient air temperatures up to 131°F.
● Safety Devices:
○ Safety fencing and integrated light curtain systems.

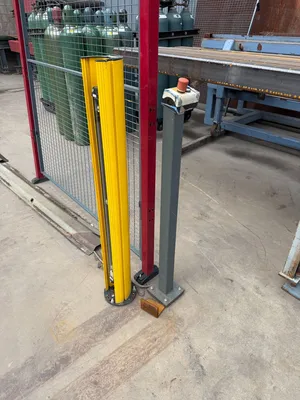

● Outdoor Light Curtain (1 pc):
○ Includes a heating device in columns to prevent lens fogging, optimized for
outdoor placement
