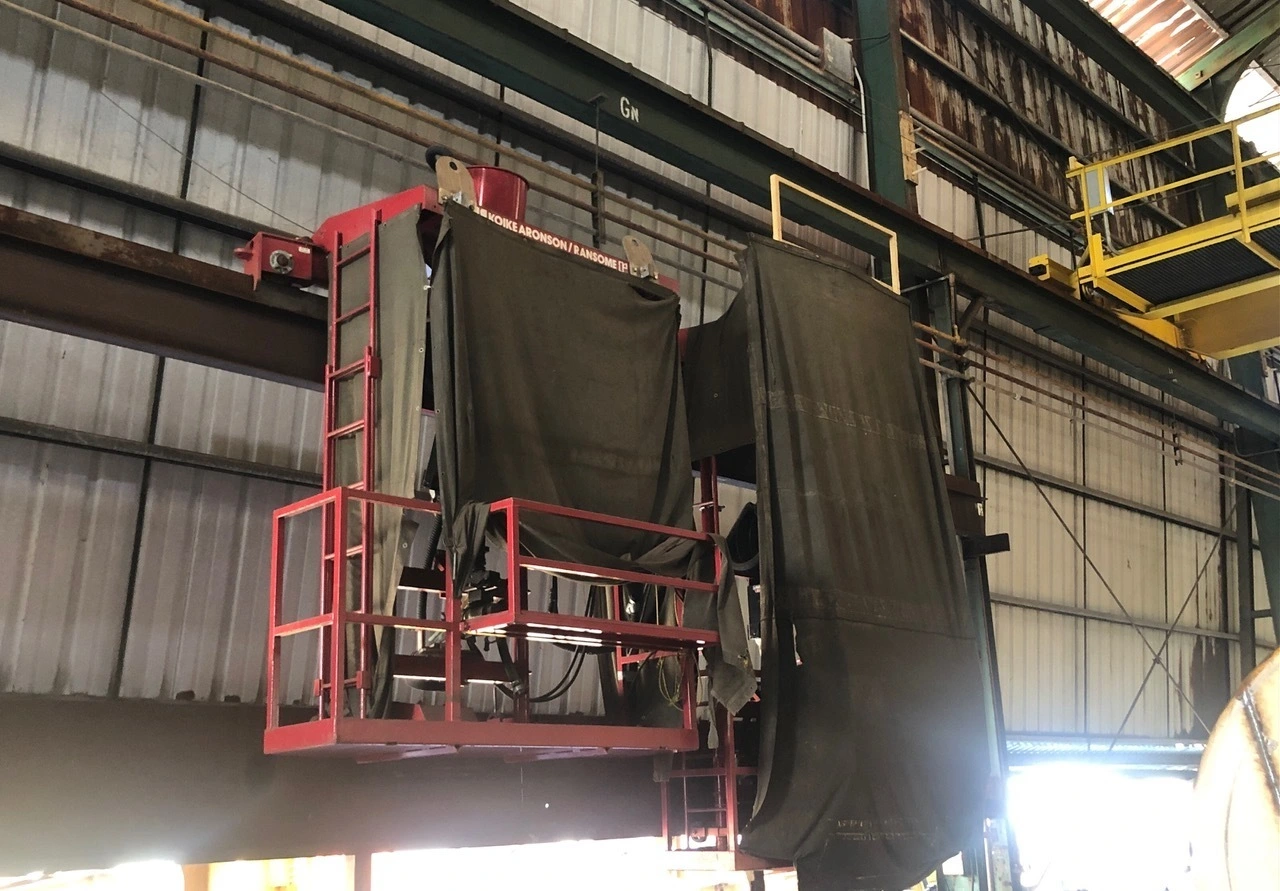

USED 2017 KOIKE ARONSON AGW-I

Available Immediately. This machine is now in storage. A factory-trained technician can be provided at extra cost for installation & operator training.

Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.

Specifications:

Adjustable tubular frame for plates 6 ft to 10 ft tall (1.8 m - 3.05 m)
Minimum 20 ft (6.1 m) to unlimited tank diameter range
Travel speeds: 4-105 IPM (0.10-2.67 m/min)
Speed, direction, and rapid travel select controls
750 lbs. weight capacity
Average welding speed: approximately 30 IPM (0.762 m/min) with a deposition rate of 1 lb per minute

Welding Capabilities:

Welds the horizontal seam around a tank using the SAW process.
Includes all necessary equipment except flux and wire to begin welding.

Components:

Operator's platform with seat
Lincoln NA-3 wire feeder and control
Lincoln DC-600 power source
Vertical and horizontal adjusters
Flux belt assembly
Flux recirculating system
Lincoln Tiny Twin wire kit
Pre-heat torch
Service skid with main disconnect
Tropicalized controls
Weather curtain set
Globe work light mounted above work area

Accessories:

200 feet of control cable assembly
Loading safety wheel set
Operator's manual
Tool kit
