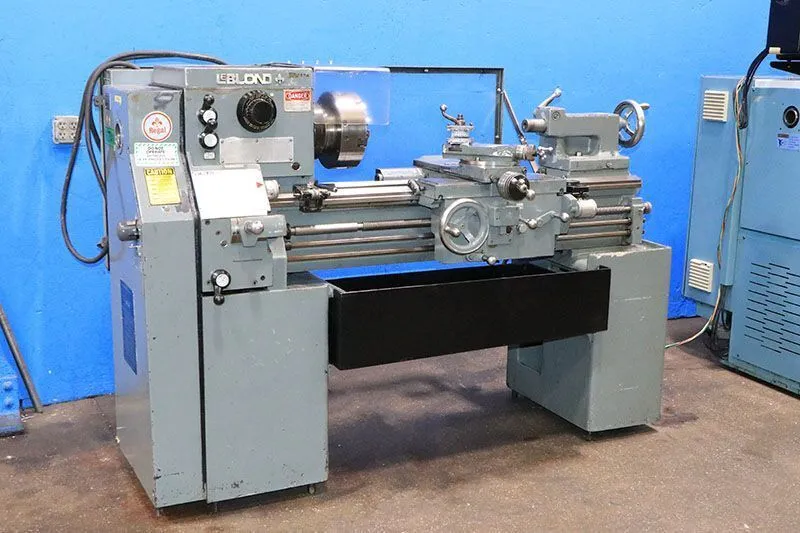

1980 LeBlond 15x30 Servo Shift Engine Lathe, used. Features include 15.5" swing over bed, 30" centers, 2.25" spindle bore, 1,800 RPM speed, L1 spindle nose, 5 hp motor. Equipped with 10" 6-jaw Buck Chuck, coolant system, and more. Ready for purchase.
| SWING OVER BED | 15.5" | 393.7 mm |
| DISTANCE BETWEEN CENTERS | 30" | 762 mm |
| SPINDLE BORE | 2.25" | 57.15 mm |
| SPINDLE MOTOR | 5 hp | 3.7 kW |
| SPINDLE SPEED | 1,800 RPM | 1,800 RPM |
| SWING OVER CROSS SLIDE | 9.5" | 241.3 mm |
| SPINDLE NOSE | L1 | L1 |
| TAILSTOCK TRAVEL | 5" | 127 mm |
| TAILSTOCK TAPER | 4MT | 4MT |
| Dimensions | 80"L X 40"W X 51"H | 80"L X 40"W X 51"H |
10" 6-JAW BUCK CHUCK
THREAD DIAL INDICATOR
JACOBS DRILL CHUCK
TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
MICROMETER CARRIAGE STOP
COOLANT SYSTEM WITH REMOVEABLE CHIP PAN
MACHINE IS AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE
