2010 Betenbender 6-70T Hydraulic Press Brake, 70-ton, 6' length, used with minimal hours. Features include a 4-way die, punch, multi-switch control panel, adjustable backgauge, and digital readout. Durable all-steel construction, ideal for precision work.
| Tonnage | 70 T | 63.503 t |
| Type | HYD | HYD |
| Overall Length | 6' | 1.8 m |
| Between Housings | 64.5" | 1.6 m |
| Stroke | 8" | 203.2 mm |
| Dimensions | 87 x 45 x 96-104 | 87 x 45 x 96-104 |
| Weight | 8000 | 8000 |

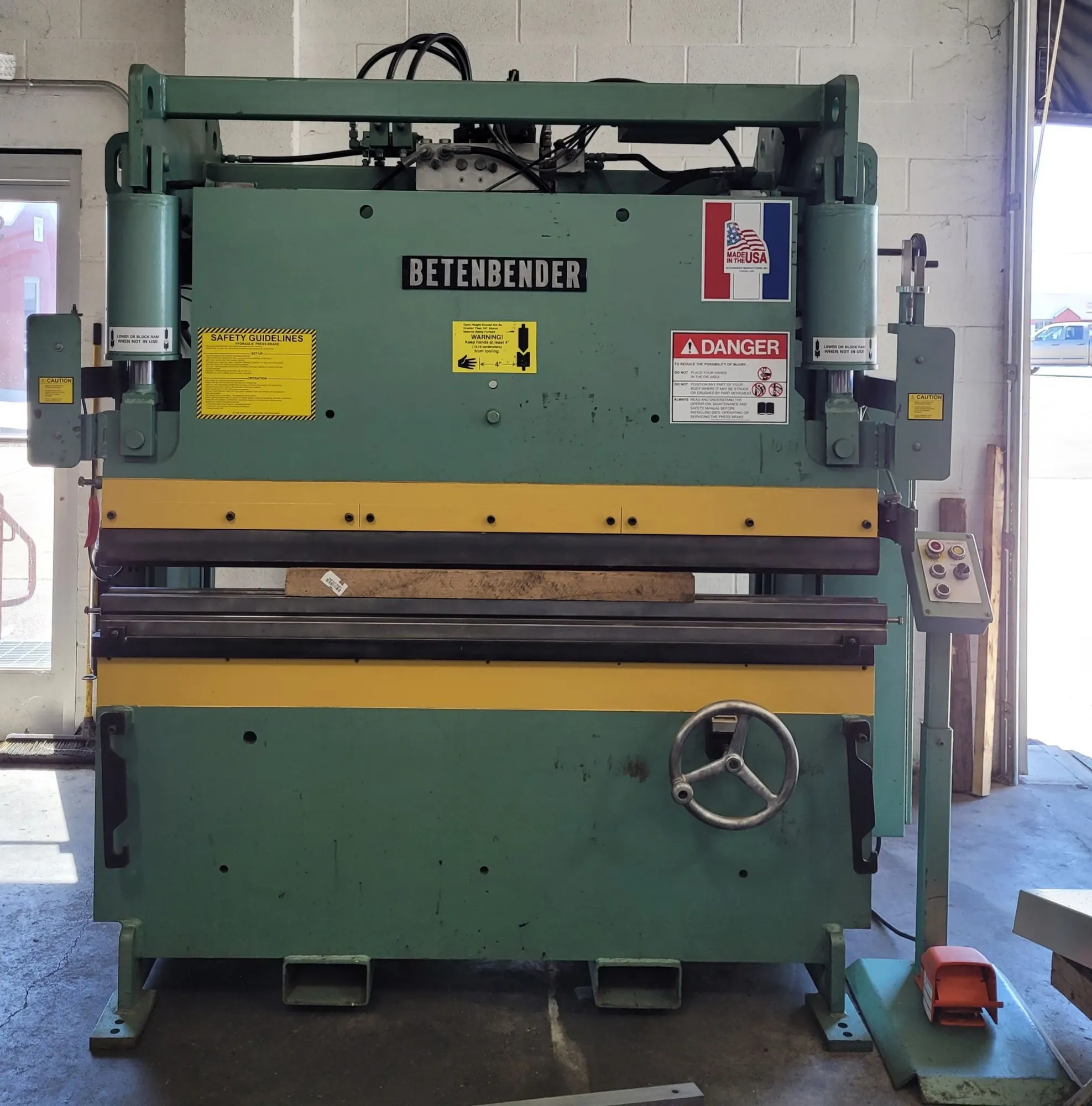

70 Ton Betenbender 6-70T Hydraulic Press Brake w/4 Way Die & Punch
Only 219 Hours
New 2010
Key Specifications
Capacity: 70 Tons
Working Length: 6 ft (72 inches)
Between Housing: 64.125 inches
Throat Depth: 8 inches
Ram Travel: 8 inches (adjustable)
Open Height: 14 inches
Closed Height: 6 inches
Ram Speed (Press): 0-44 IPM (Inches Per Minute)
Rapid Approach Speed: 44 IPM
Return Speed: 63 IPM
Motor: 10 HP, 220/440V, 3-Phase
Weight: Approx. 8,000 lbs
Overall Dimensions (L x W x H): Approx. 87" x 45" x 96-104"
Standard Features
Control: Multi-switch control panel & 3-position foot pedal
Backgauge: Manual, adjustable X, Y, Z
Depth Stop: Digital Readout
Ram Adjustment: Manual handwheel for .001" depth
Ram Tilt: Micrometer adjustment for parallelism/angle
Construction: All steel, American-made motor & valves
