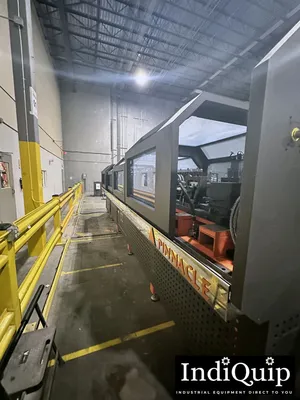

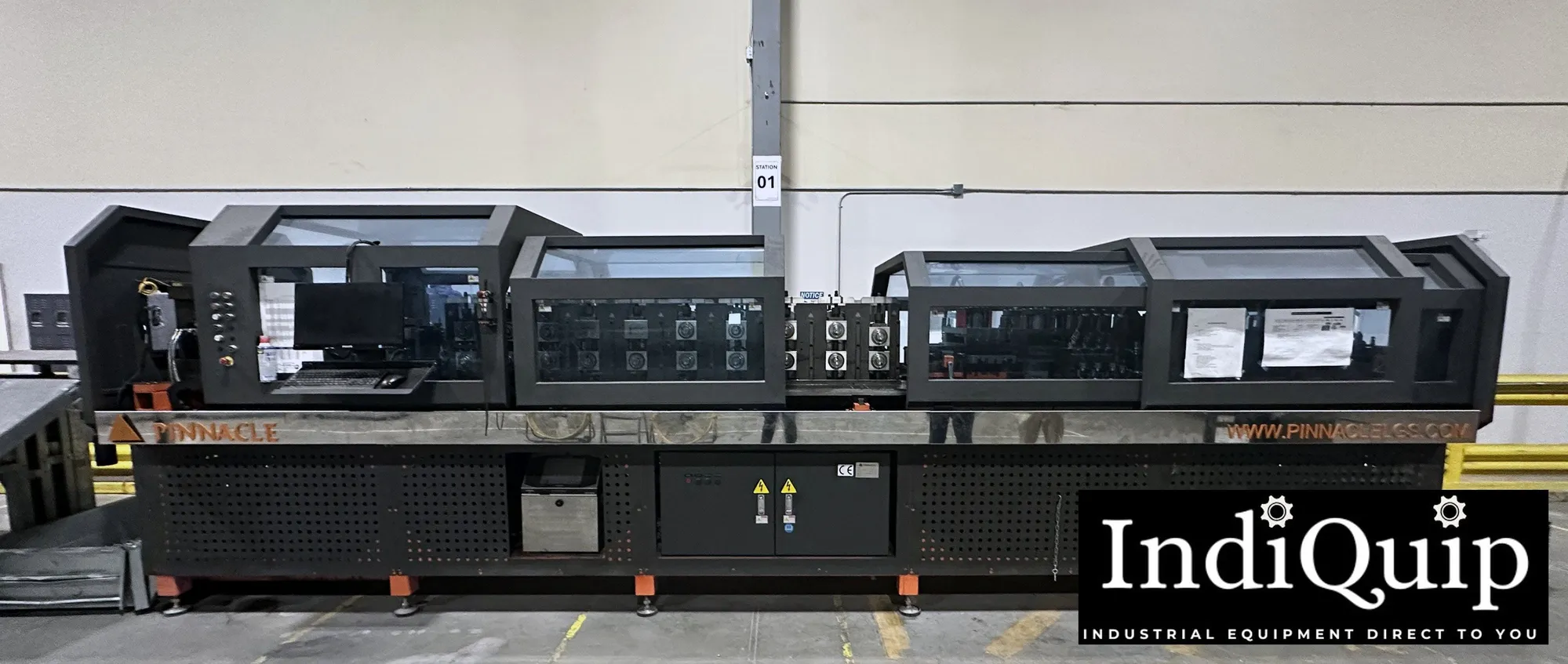

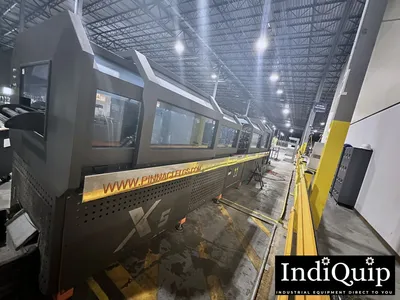

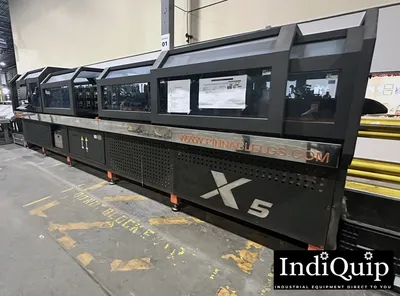

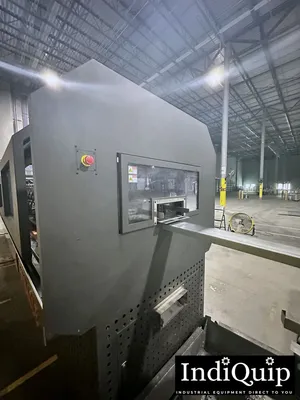

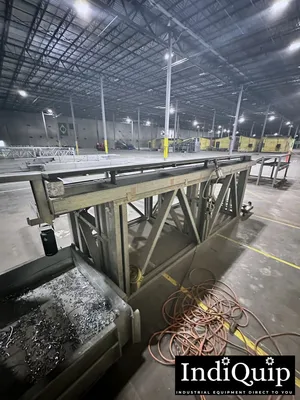

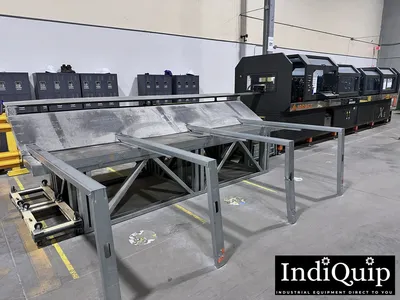

USED PINNACLE Framer X5

PinnacleFRAMER X5 cold-formed steel framing and truss roll former with servo drive, integrated punching, auto changeover, and high-speed production for stud, truss, and floor joist manufacturing.

Profile Capability:

Unlimited profile sizes with automatic changeover
Changeover time: < 10 minutes (including web size and punch tools)
Dedicated web sizes: 3″ to 10″
Supported configurations:
C + C
C + U
Back-to-Back C + C (2-ply)
U + C + C + U (4-ply)

Standard Profile Sizes (Imperial):

3″ × 2″ (350S200)
3.5″ × 2″ (350S200)
3.625″ × 2″ (362S200)
4″ × 2″ (400S200)
6″ × 2″ (600S200)
8″ × 2″ (800S200)
10″ × 2″ (1000S200)

Material Thickness Range:

24 gauge to 14 gauge

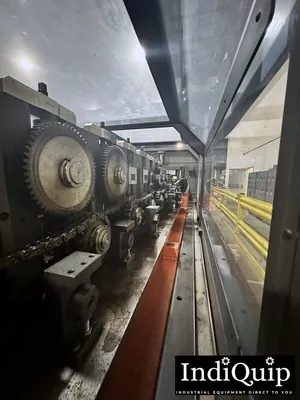

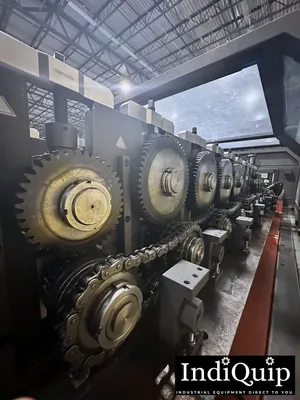

Roll Forming Section:

10 roll-forming stations
Automatic gauging adjustment

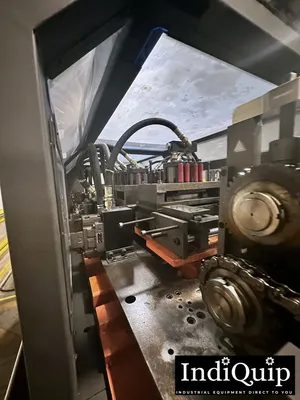

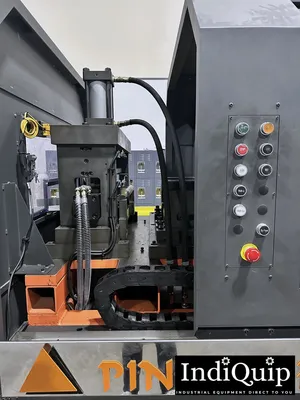

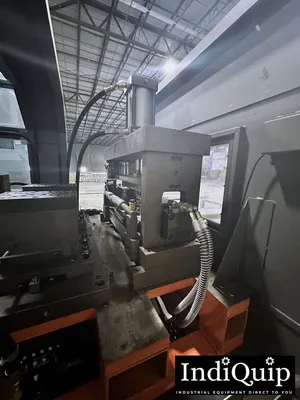

Integrated Punching Operations:

Truss index hole punch
PinnacleTRUSS punch
Service hole punch
Flag bolt hole punch
Web bolt hole punch
Lipped service hole punch (7″)
Left / right lip notch punch
Web notch punch
Truss end cut punch
Flange dimple connection hole
Dimple slot
Shear cut
End crimp punch
Automatic swaging

ID Marking:

Fully integrated inkjet ID printing system

Production Output (Typical):

Wall frames: 1,640 – 2,950 linear ft/hr
Roof trusses: 980 – 1,640 linear ft/hr
Floor joists: up to 5,440 linear ft/hr

Maximum Line Speed:

Up to 6,890 linear ft/hr

Drive System:

Servo-driven high-speed system

Hydraulic System:

High-power, high-speed, all-temperature design

Machine Dimensions (L × W × H):

299″ × 59″ × 83″

Machine Weight (Approx.):

24,000 lbs

Electrical Requirements:

3-Phase, 380 VAC
40 kW / 60 kVA (configurable per installation)

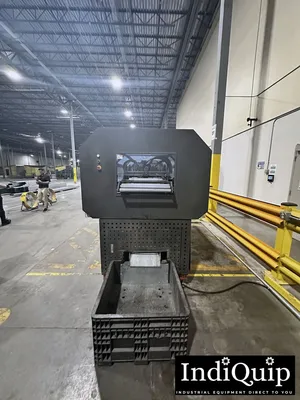

Coil Handling System:

Powered variable-speed decoiler
Capacity: 6,600 lbs

Coil Size Capacity:

Maximum coil width: 15.7″
Inner diameter: 17.7″ – 20.5″
Maximum outer diameter: 59″
