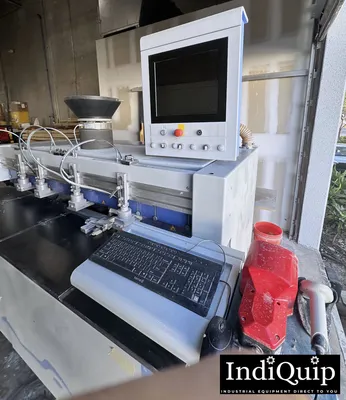

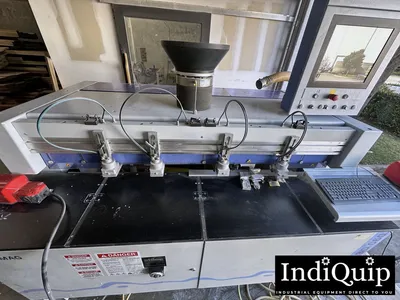

USED 2016 WEEKE Optimat ABD 060/12/NA

2016 Weeke Optimat ABD 060/12 vacuum clamping and assembly table. Compact footprint, precise workpiece positioning, 4.5 kW connected load, ideal for CNC nesting, drilling, and panel assembly workflows.

Workpiece length: 0.8″ – 49.2″
Workpiece width: 0.8″ – 31.5″
Workpiece thickness: 0.4″ – 2.4″
Compressed air connection: 1/2″
Compressed air supply: Minimum 7 bar (≈ 100 PSI)
Total connected load: Approximately 4.5 kW
Supply voltage (control): 10 A
Extraction connection diameter: 3.15″
Required extraction air speed: 98 FPM
Machine width: 56.6″
Machine length: 101.1″
Machine height: 79.2″
Total machine weight: Approximately 2,425 lbs
