USED 2019 IRONWOOD S134RRK
Overview
Description

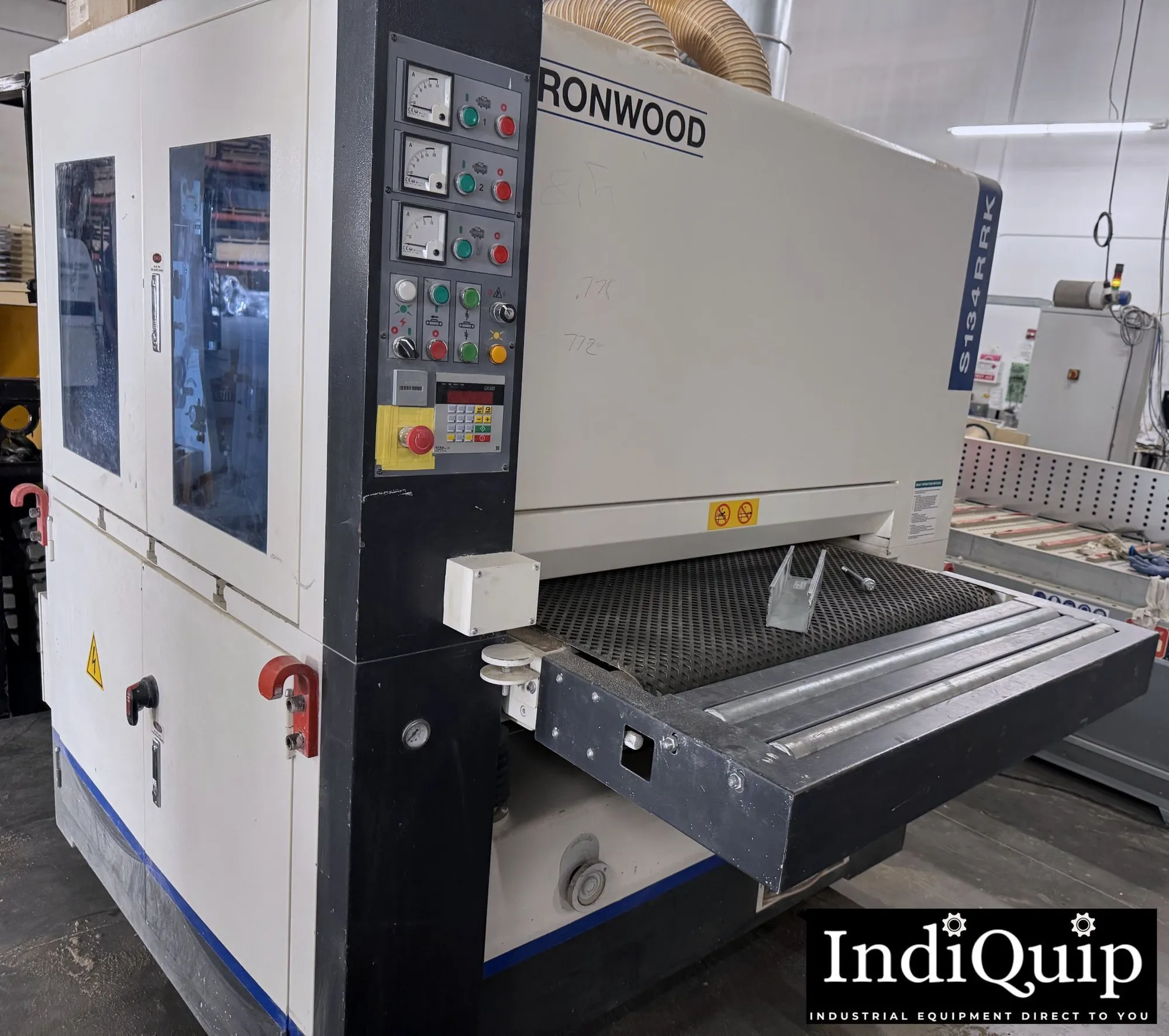

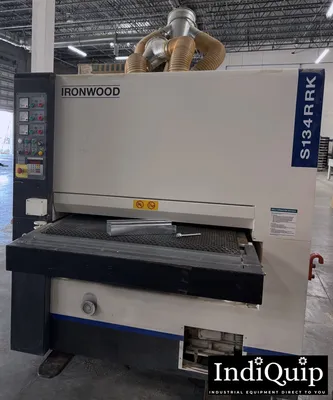

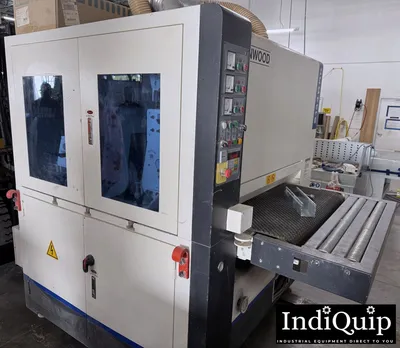

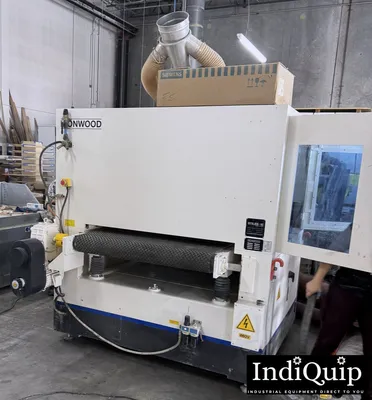

The 2019 Ironwood S 134 RRK wide belt sander is a heavy-duty, three-head sanding solution featuring a 42″ working width with roller, rubber contact roller, and combination platen heads for precision calibration and finish sanding. With up to 55 HP of sanding power, variable feed speeds up to 46 FPM, and a rigid industrial frame, this machine is built for demanding cabinet, furniture, and millwork production environments requiring consistent thickness control and high-quality surface finishes.
Specifications
| Dimensions | 104″ × 86″ × 89″ | 104″ × 86″ × 89″ |
|---|---|---|
| Weight | 8,470 lbs | 8,470 lbs |
Maximum working width: 42″
Conveyor belt width: 43″
Abrasive belt width: 43″
Abrasive belt length: 75″
Minimum workpiece thickness: 1/8″
Maximum workpiece thickness: 5.9″
Minimum workpiece length: 17.5″
Variable conveyor speed: 12 – 46 FPM
Feed motor: 3 HP
Table rise/fall motor: 0.5 HP

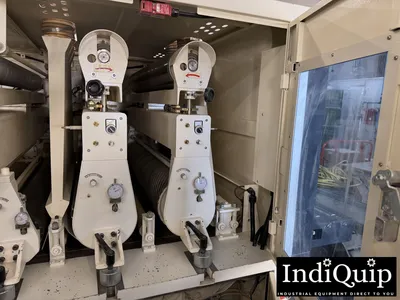

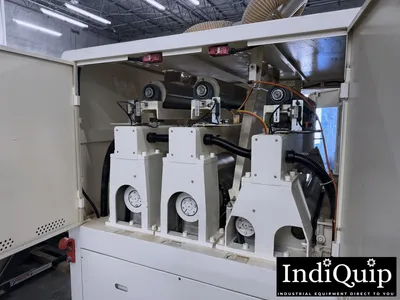

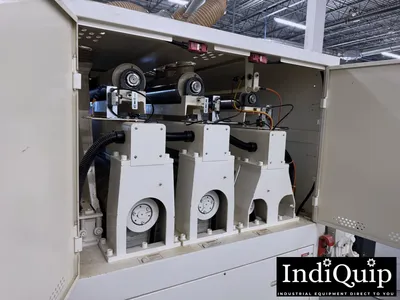

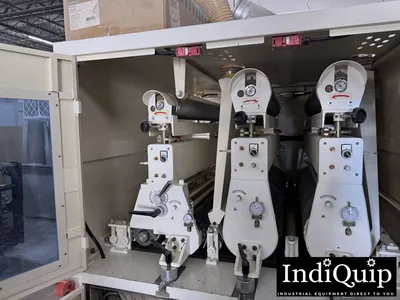

Head #1: 250 mm steel contact roller, 20 HP, 65 FPS belt speed; Rotation: Against the feed
Head #2: 250 mm rubber contact roller (85 Shore), 20 HP, 65 FPS belt speed; Rotation: With the feed
Head #3: Combination head with 140 mm rubber roller (65 Shore) and felt pad, 15 HP, 40 FPS belt speed; Rotation: Against the feed

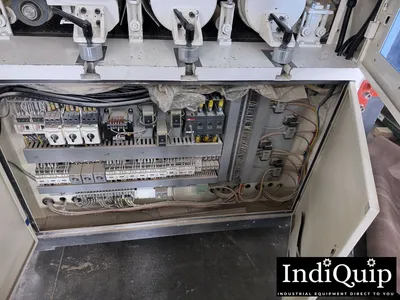

Electrical connection: 230 / 460V, 3-Phase, 60 Hz
Amperage: 150 amps @ 230V / 75 amps @ 460V
Required airflow: 3,070 CFM
Dust outlets – Head #1: (2) × 5″
Dust outlets – Heads #2 & #3 (shared): (3) × 5″
Compressed air requirement: 90 PSI
Air consumption per cycle: 4 CFM
Air jet belt cleaning consumption: 24 CFM
Net weight: 7,805 lbs
Gross shipping weight: 8,470 lbs
Shipping dimensions (L × W × H): 104″ × 86″ × 89″
