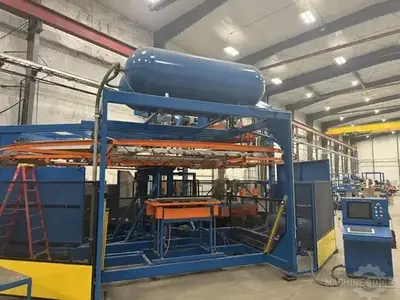

USED MODERN MACHINERY 6X9 223RP
Overview
Description
Thick Gauge 3-Station Rotary Pressure Former
Specifications
Request a Quote
Add to Cart
Max Mold Capacity: 9' x 6'
Top Platen Stroke: 72"
Bottom Platen Stroke: 50"
Platen Drives: Electric Motors (Top & Bottom)
Sheetline Height: 100"
Indexing/Shuttling: New Electric SEW Rotate
Clamp Frames: New (4) Way Adjustable
Top Oven: New Ceramic Elements
Top Oven Zones: (77) Top Oven Zones (3" x 9" 650 Watt Heaters)
Bottom Oven: New Ceramic Elements
Bottom Oven Zones: (77) Bottom Oven Zones (3" x 9" 650 Watt Heaters)
New Oven Safety System: New Oven Air Jet Safety System
Oven Heat Detectors: SSR Heat Controls / IR Sensor / Sag Eye
Control: SSR Heat Controls / IR Sensor / Sag to SSR Heat Controls
Completion Date - 8 Weeks: Eight (8) Reconditioned Cooling Fans
Reconditioned Electric 4-Post Load Table: Reconditioned Full Perimeter Safety Guarding and Gate Switches along with a Load Area guarded with New Light Curtains
Reconditioned Valving / Dual Loop Upper and Lower Vacuum and Blow Circuit: Two (2) 500 Gallon Tanks / Reconditioned 10 HP Busch Vacuum Pump
