USED 2026 MODERN MACHINERY 5X6 SS
Overview
Description

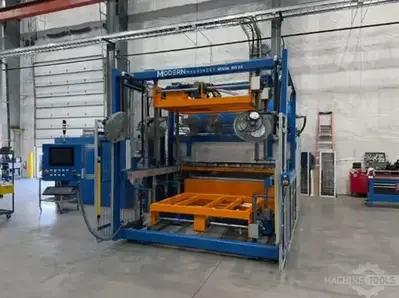

Thick Gauge Single Station Thermoformer
Specifications
Request a Quote
Add to Cart
Max Mold Capacity: 5' x 6'
Top Platen Stroke: 48"
Bottom Platen Stroke: 24"
Platen Drives: Electric Motors (Top & Bottom)
Sheetline Height: 44"
Indexing/Shuttling: Electric Motor
Clamp Frames: (4) Way Adjustable
Top Oven: Quartz Elements
Top Oven Zones: (42) Top Oven Zones (3" x 5" 400 Watt Heaters)
Bottom Oven: Quartz Elements
Bottom Oven Zones: (42) Bottom Oven Zones (3" x 5" 400 Watt Heaters)
Oven Heat Detectors: Hetronik Heat Controls / IR Sensor / Sag Eye
Control: Allen Bradley Compact Logix PLC Control System
500 Gallon Vacuum Reservoir / Upper and Lower Vacuum Valve Tree / 2” Valves: Completion Date - 8 Weeks
Eight (8) Cooling Fans: Full Perimeter Safety Guarding and Gate Switches along with Load/Form Area Guarded with Light Curtains
