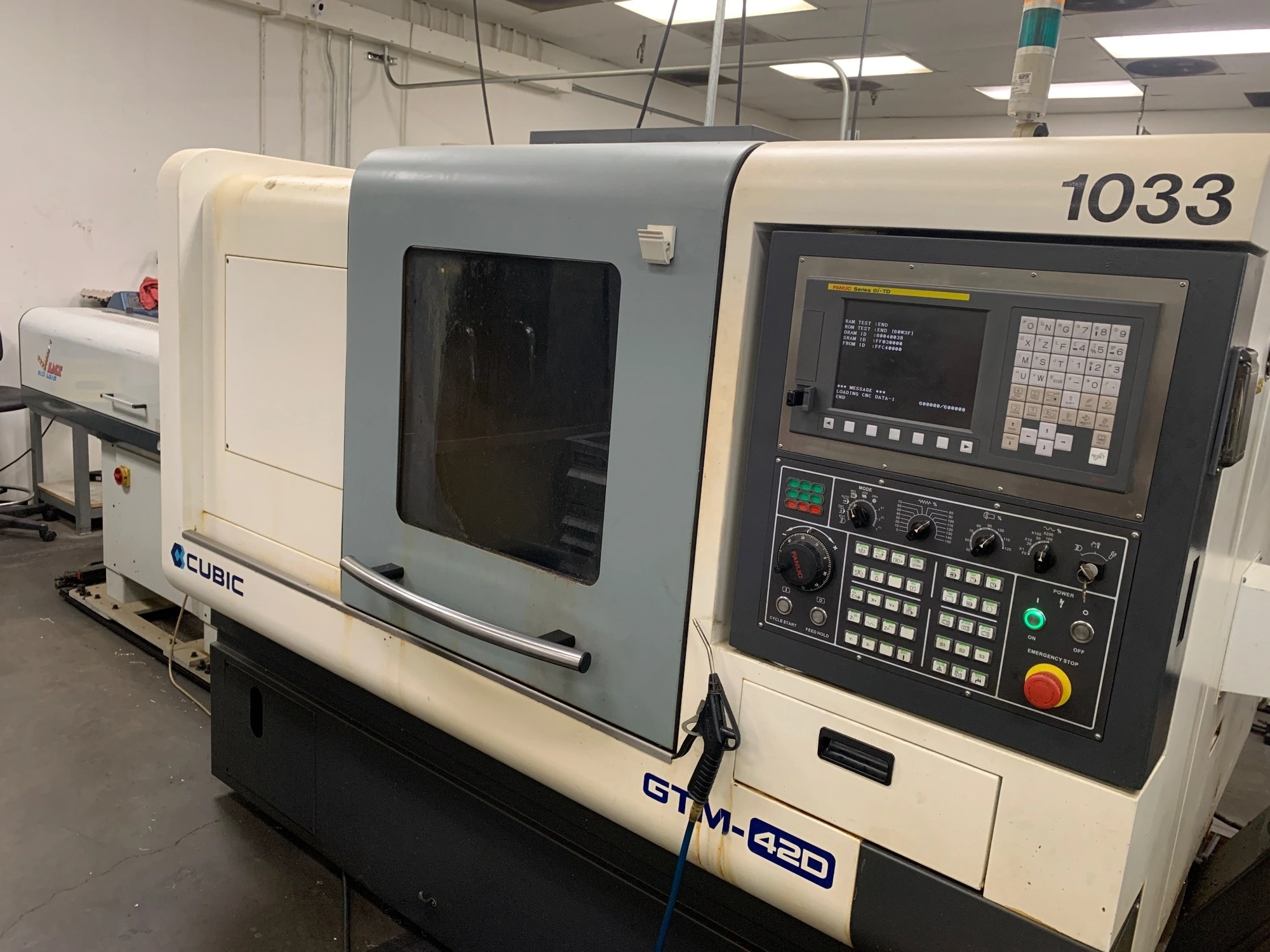

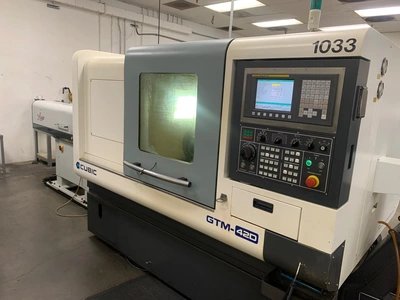

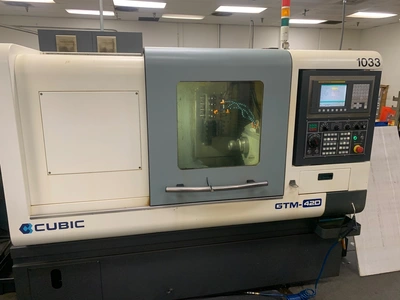

Low Hours, 7 Axes, High Productivity Machine.
| Machining Length | 6.3" | 160.02 mm |
| Bar Capacity | 42 mm | 1.6535" |
| Power | 10 hp | 7.5 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 5.12" | 130.05 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |

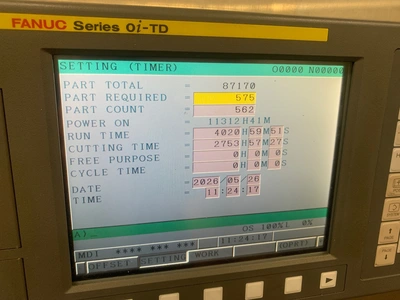

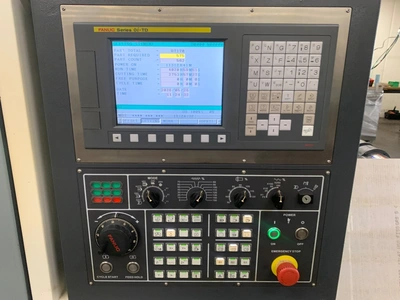

| Control | CNC (Fanuc Oi-TD) | CNC (Fanuc Oi-TD) |
| Weight | 7,000 lbs | 7,000 lbs |
Sub Bar Capacity: 1 in 26mm

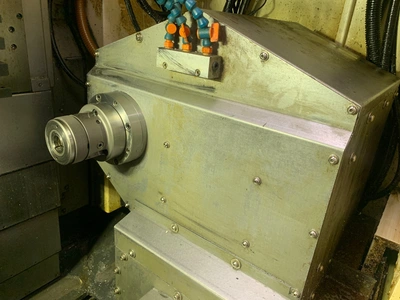

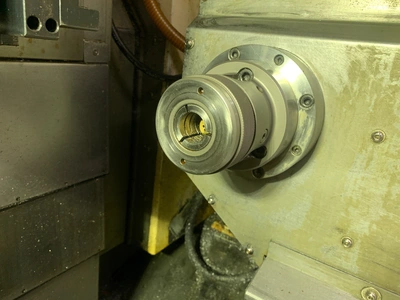

Sub Spindle Nose: A2-4
Sub Spindle Speed: 40-4000 Rpm
Sub Spindle Power: 4 HP
Number of Fixed Tools: 8 Turning + 7 id
Turning Tool Diameter: 16 and 20 mm
Boring tool: 25 mm
Number of Live Tools: 11 (ER20)
Live Tool Speed: 3,000 rpm
Live Tool Motor: 2 Hp 1kw
Rapid Traverse:590 ipm
Coolant Tank Capacity: 48 Gallon
Coolant Pump: 1 Hp
Machine Weight: 7,700 lb
Fauna 0iTD Control with 7 axis Capacity

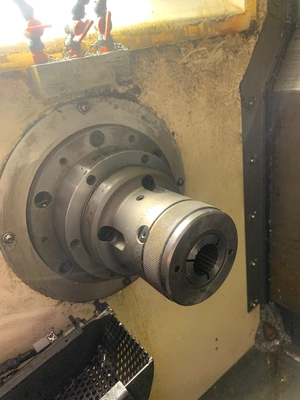

Fanuc Spindles with C positioning function

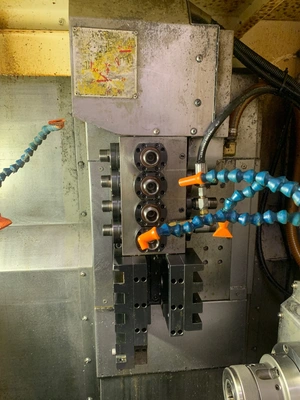

4 End Working Live Tools
4 ID Tools for Main Spindle
5 OD Turning tools
4 Live Tools for OD work
3 end Working Live Tools for Sub Spindle
3 ID Tools For Sub Spindle
3 OD Tools for Turning Tools for Sub Spindle
Parts Catcher
Work Light
Coolant System
Hydraulic Disc Brake on Both Spindles

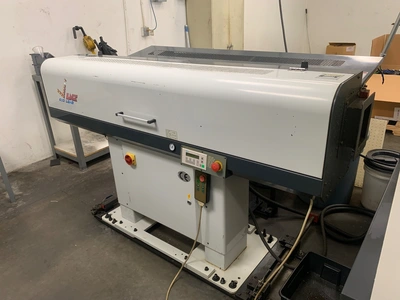

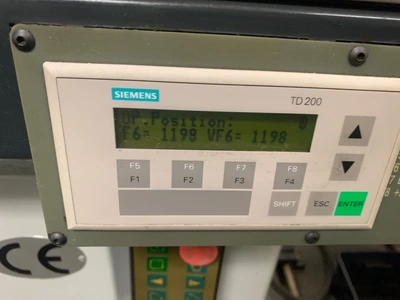

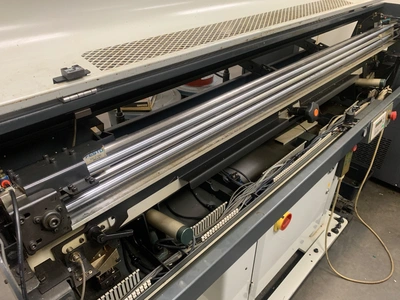

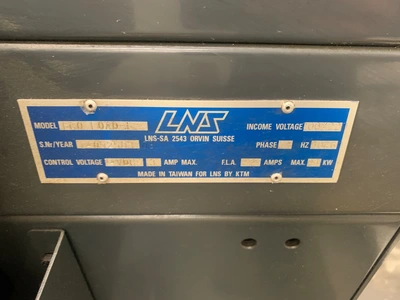

Bartered Interface and LNS Barfeeder
Chip Conveyor
