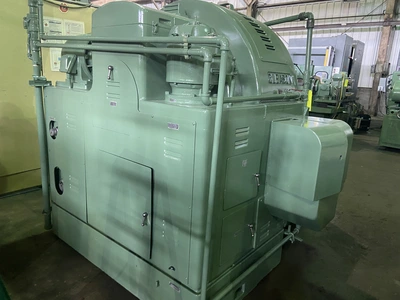

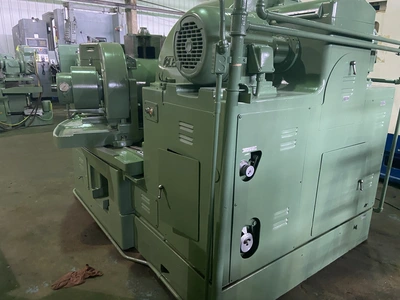

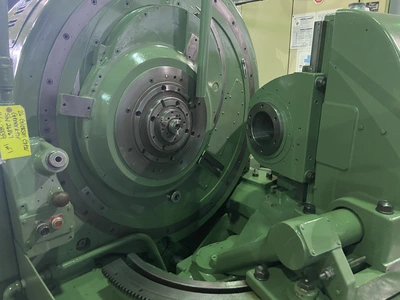

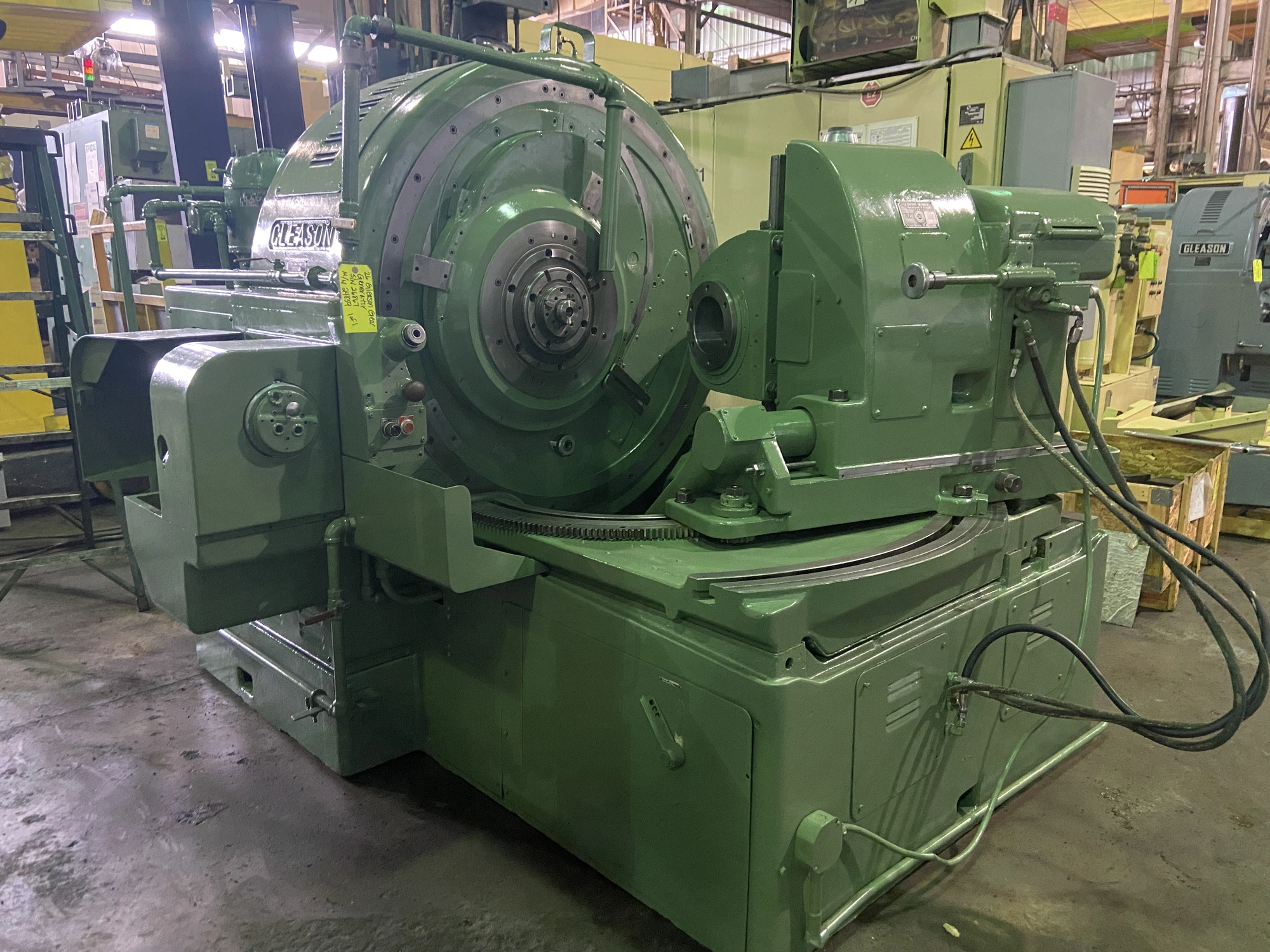

USED GLEASON 26
Overview
GLEASON 26 SPIRAL BEVEL GEAR GENERATOR
Specs
Specifications:
Maximum Diameter Gear: 33"
Cone Distance Max (30 deg. and 18" Cutter): 16 1/2"
Max. Pitch Angle:Shaft at 90 Deg.: 84 Deg. 18'
Min. Pitch Angle: 5 Deg., 42'
Extreme Ratio: 10:1
Max Face Width: 4"
Diametral Pitch: 1 1/2
Diameter of Taper Hole at Large End: 6" 152mm
Taper Per Foot: 3/4" 19mm
Depth of Taper: 6", 152mm
Diameter of Hole Through: 5" 127mm
Spindle Nose to Machine Center: 9 1/4", 235mm
Cutter Diameter: 9", 12", 16", 18"
Max Offset Above Center: 4 1/2"
Max Offset Below Center: 4 1/2"
Max. Distance from Machine Center to Nose of Spindle: 23 1/2"
Min. Distance from Machine Center to Nose of Spindle: 5"
Cutter Speeds-Feed Per Minute: 35 - 200
Feed (sec./tooth): 23 - 333
Main Motor - 2 Speed: 7 1/2 HP
Floor Space: 132" x 101"
Net Weight: 25,300 lbs.
Equipped With
Hydraulic Chucking Unit, Less Draw-In Bar & Nut
Modified Roll
Power Forced Lubriction System
Full Complement of Electrics (Motors/Controls)
Self-Contained Coolant System
Self-Contained Hydraulic System
Guards
Covers
Assortment of Change Gers For Roll, Ratio of Roll, Index, Feed
and Cutter Speed
