NEW SENFENG SF4020N
Overview

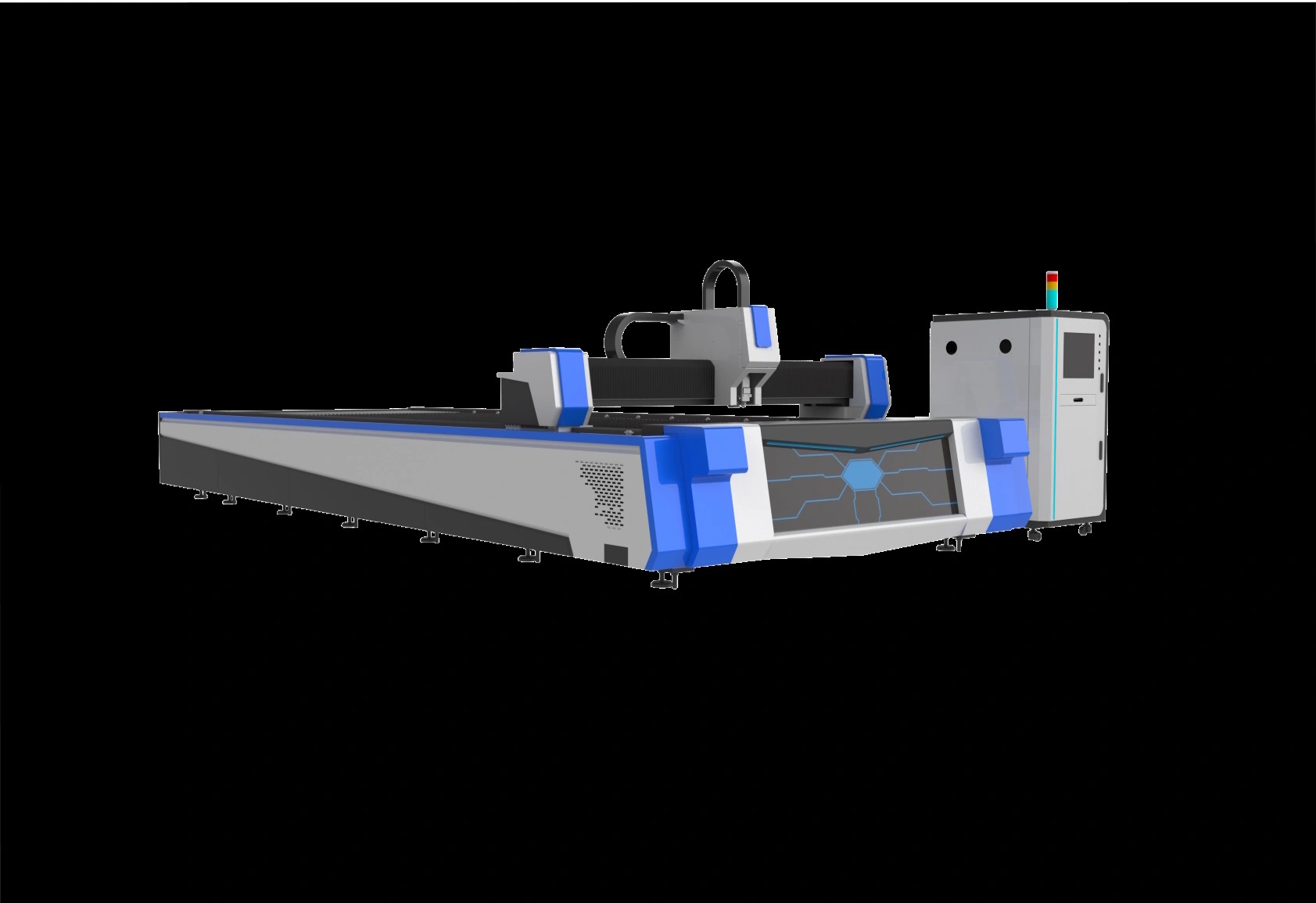

Senfeng Model SF-4020 G Laser With 6'X13' Table
SF4020G Fiber Laser Cutting Machine Sheet Metal Cutting System
Table Size：6’×13’
Max Laser Source, 6kW
Raytools Auto Focus Cutting Head
6Kw Water Chiller
Transformer-Laser wired for 380V-3Phase.
Operational Software FSCUT 2000
Nesting Software CYPCUT
2 Year Warranty
(Everything Except Consumables) (Customer's responsibility to offload machine from delivery truck and put at the proper location)
(Customer's responsibility to get the proper power for machine according to local standards)
Onsite Installation Onsite Training
(Training 2-3 days at customer shop)
Specs
Work area (Length X Width)....................6’x 13’
Maximum load..................................2,755lbs.
X-axis travel.................................79”
Y-axis travel.................................159”
Z-axis travel.................................8”
X/Y-axis positioning accuracy.................±0.05mm/0.001”
X/Y-axis repeated positioning accuracy........±0.02mm/0.0007”
Maximum speed.................................100m/min/3,937”/min
Maximum acceleration..........................1.0G
Weight........................................11,464lbs.
Maximum load..................................2,755lbs.
Dimensions (length x width)...................R-L 233”x F-B 123”
Height........................................82"
Phase........................................Three phase
Rated voltage of power supply................380V
Frequency....................................50Hz
Power supply protection grade................IP54
6000W laser source...........................Max
Laser cutting head...........................Senfeng TYRFING
Machine tool · host
Transmission system..........................Taiwan LAPPING/Senfeng
Machine tool and accessories.................Senfeng
Reducer......................................France MOTOREDUCER
Electrical and pneumatic systems.............France SCHNEIDER
.............................................Japan SMC & Taiwan AIRTAC
AC servo motor and driver....................Taiwan DELTA/France SCHNEIDER
Water chiller................................HANLI
CNC control system...........................Senfeng Mimir LS3000
Materials......Thickness......Cutting Speed......Gas
Stainless Steel
...............0.0393.........45-55..............N2/Air
...............0.0787.........30-35..............N2/Air
...............0.1181.........18-22..............N2/Air
...............0.1574.........10-14..............N2/Air
...............0.1968.........8.0-10.............N2/Air
...............0.2356.........4.3-5.0............N2/Air
...............0.3149.........3.0-4.0............N2/Air
...............0.3937.........1.8-2.5............N2/Air
...............0.4724.........1.0-1.5............N2/Air
...............0.5511.........0.8-1.2............N2/Air
...............0.6299.........0.6-1.0............N2/Air
...............0.7874.........0.4-0.7............N2/Air
Carbon Steel
...............0.0393.........40-45..............N2/Air
...............0.0787.........20-28..............N2/Air
...............0.1181.........12-17..............N2/Air
...............0.1574.........8.0-10.............N2/Air
...............0.2356.........2.5-3.3............O2
...............0.3149.........2.3-3.0............O2
...............0.3937.........2.0-2.5............O2
...............0.4724.........1.8-2.2............O2
...............0.5511.........1.4-1.7............O2
...............0.6299.........1.0-1.6............O2
...............0.7874.........0.6-1.2............02
...............0.9842.........0.5-0.7............O2
...............1.1811.........0.4-0.6............O2
Brass
...............0.0393.........40-45..............N2/Air
...............0.0787.........20-25..............N2/Air
...............0.1181.........12-15..............N2/Air
...............0.1968.........5.0-6.0............N2/Air
...............0.2356.........3.0-4.0............N2/Air
...............0.3149.........1.5-2.5............N2/Air
...............0.3937.........1.0-1.5............N2/Air
...............0.4724.........0.8-1.0............N2/Air
Aluminum
...............0.0393.........50-55..............N2/Air
...............0.0787.........25-30..............N2/Air
...............0.1181.........13-16..............N2/Air
...............0.1574.........10-13..............N2/Air
...............0.2356.........3.0-4.0............N2/Air
...............0.3149.........2.0-3.0............N2/Air
...............0.3937.........1.0-2.0............N2/Air
...............0.4724.........0.7-1.2............N2/Air
...............0.6299.........0.5-1.0............N2/Air
...............0.7874.........0.4-0.6............N2/Air
Advantage Laser Cutting
Items..................Plasma..........Laser.............Laser Advantages
Positioning accuracy...0.4 mm..........0.14 mm...........High Precision
(especially 10m bed)
Section taper..........5MM.............0.4...............No need for fine processing
(especially 40mm thick)
Kerf...................4-6.0mm.........0.2-1.6 mm........Save 6-9% of materials
Bleed and co-edge......10 mm...........3-4.mm............Save 6-9% of materials
Heat affected zone.....0.5-2.0 mm......0.1-0.4 mm........Less heat absorption,
.........................................................less deformation
Cutting effect.........Average.........Excellent,........No need for sanding
.......................................less slags
Cutting speed..........Average.........Very fast.........High production efficiency
Piercing..............Can't cut........Diameter-depth
......................small holes......ratio of 10-20%...Save drilling and handling
Working environment...Smokey...........Clean.............Healthy and environmentally
.........................................................friendly
