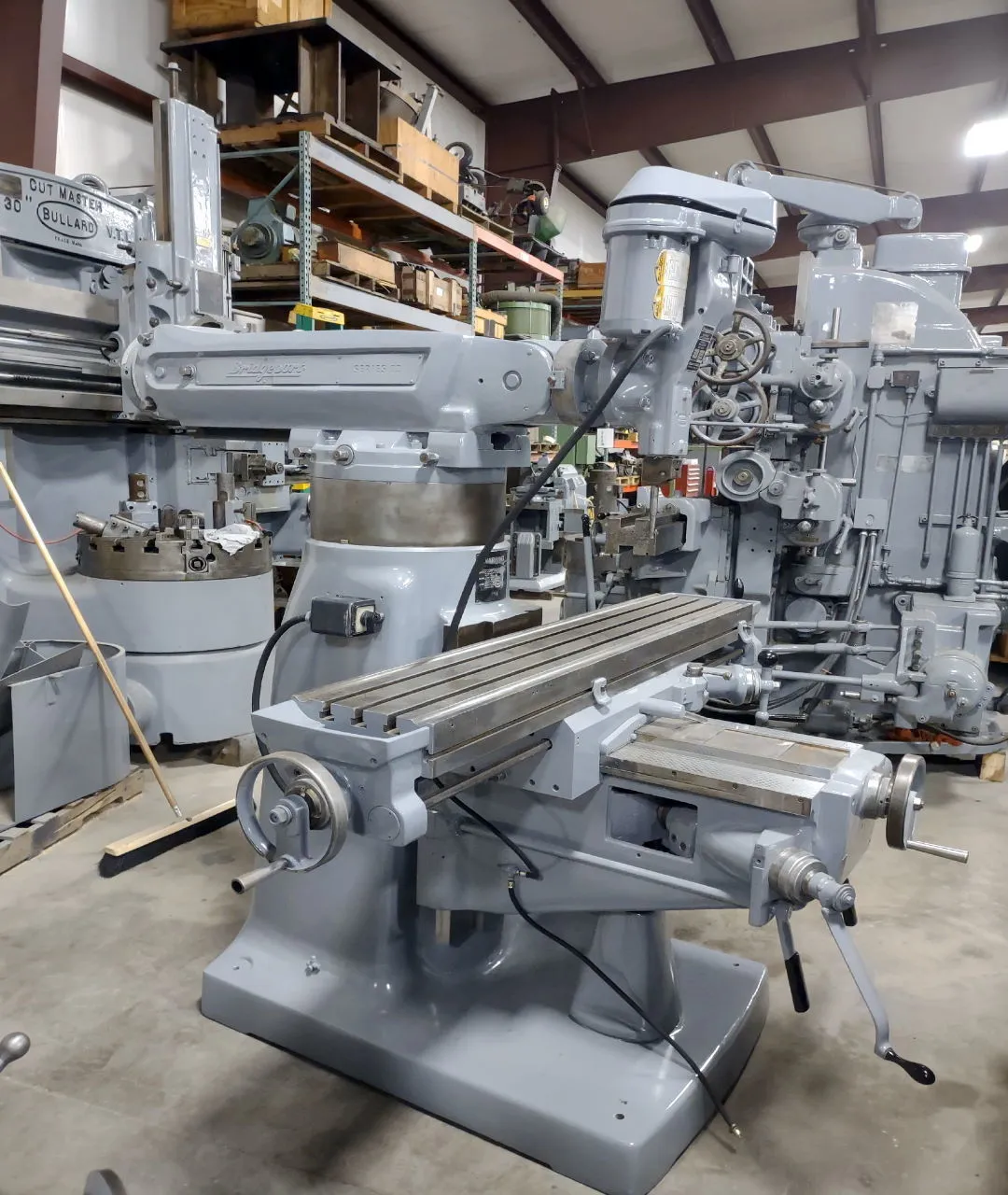

Bridgeport Series ll Base And Table With Slotting Attachment Only
| Stroke | 4" | 101.6 mm |
| Power | 13 hp | 9.7 kW |
| Dimensions | R-L 78 X F-B 74" X 100" High | R-L 78 X F-B 74" X 100" High |
| Weight | 5,000 Lbs. | 5,000 Lbs. |
Bridgeport Series ll Base With Slotting Attachment
Table-W..............................................11"
Table-L..............................................58"
Travel-Long..........................................33.5"
Travel-Cross.........................................14"
Table Size...........................................11" X 58"
Table Load...........................................1,500 Lbs.
Table T-Slots........................................2-1/2"
Table T-Slott Size...................................5/8"
Table Height above Floor.............................48-3/4"
Bridgeport Slotting Attachment
Stroke speeds (6)....................................70, 100, 145, 205, 295, 420 S.P.M.
Stroke...............................................4"
Main Motor...........................................1/3 Hp.
Dimensions...........................................R-L 78 X F-B 74" X 100" High
Weight...............................................5,000 Lbs.
Bridgeport Riser.....................................6"
Note: Machine has been cleaned, painted and cycled.
