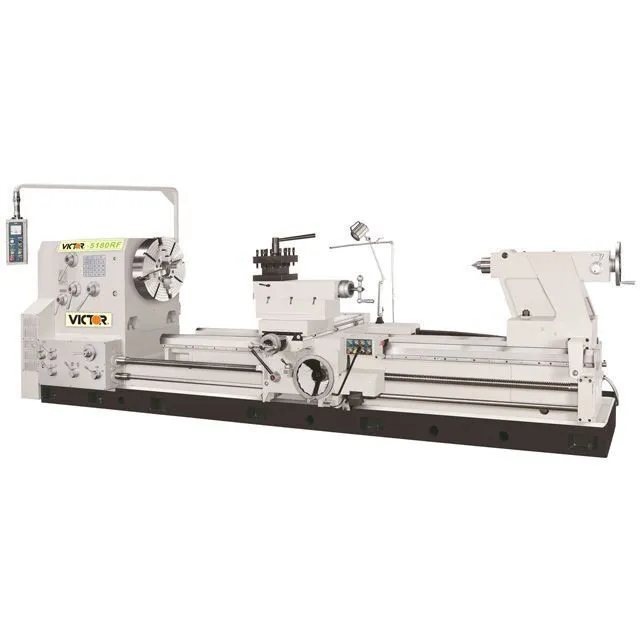

Victor 5100RF series lathe is designed to provide outstanding performance and structural rigidity with large 6.02" spindle bore suitable for turning and cutting a large workpiece.
| Lathe Type | Big Bore | Big Bore |
| Swing Over Bed | 51" | 1,295.4 mm |
| Distance Between Centers | 157.48" | 4,000 mm |
| Spindle Bore | 6.02" | 152.91 mm |
| Spindle Nose | A2-11 | A2-11 |
| Number Of Spindle Speeds | 12 Steps | 12 Steps |
| Range Of Speeds | 4 ~ 400 rpm | 4 ~ 400 rpm |
| Number of Inch Threads | 1/4 ~ 30 TPI x 70 kinds | 1/4 ~ 30 TPI x 70 kinds |
| Motor | 30 hp | 22.4 kW |
| Phase | 3 | 3 |
| Dimensions | 260" x 80" x 80" | 260" x 80" x 80" |
| Weight | 24,920 lbs. | 24,920 lbs. |
*9.06" or 12.20" Optional Spindle bore diameter
*Spindle nose Optional 9.06" or 12.20" bore is A2-20
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
9” spindle bore (A2-15) upgrade
12” spindle bore (A2-20) upgrade
15” 3-jaw chuck (A2-11)
15” zero-set 3-jaw chuck with A2-11 back plate
20” 3-jaw chuck (A2-11)
21” zero-set 3-jaw chuck with A2-11 back plate
20” 4-jaw chuck (A2-11)
25” 4-jaw chuck (A2-11)
25” 4-jaw steel body independent chuck (A2-11)
32” 4-jaw steel body independent chuck (A2-11)
Steady rest w/ rollers 11.80” capacity
Steady rest w/ rollers 23.50” capacity
Follow rest
40” face plate with 4-jaw (A2-11)
Micro carriage stop
Taper turning attachment
Full length splash guard
Quick change tool set 1-1/2” (one tool post and 4 holders, #1,2,4D,7)
