| Dimensions | 53" x 59" | 53" x 59" |
| Weight | 4,500 Lbs | 4,500 Lbs |
Specifications:
Max. Diameter of Gear: 20"
Speed of Drive Spindle: 1200 rpm
Max. Offset of Gear Spindle Above or Below Center of Pinion Spindle: 3 1/2"
Max. Distance from Center of Gear Spindle to Nose of Pinion Spindle: 12"
Min. Distance from Center of Gear Spindle to Nose of Pinion Spindle: 4 3/4"
Max. Distance from Center of Pinion Spindle to Nose of Grear Spindle: 10 3/4"
(Hydraulic Machine has 3" Additional Movement for Withdraw of the Head)
Min. Distance from Center of Pinion Spindle to Nose of Gear Spindle: 3 1/2"
Belt (3 Required "V" Type): No. B75
Horse Power of Motor Required: 5
Floor Space: 53" x 59"
Net Weight (Approximately): 4,500 lbs

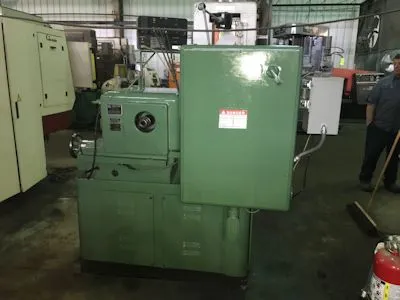

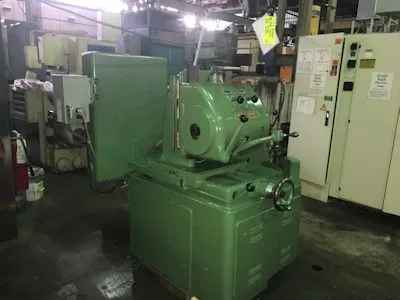

The 17M Hypoid Tester is designed for testing the running qualities of
straight bevel, spiral bevel, zerol bevel and hypoid gears whose shafts
intersect at 90 degrees. There is a pre-set backlash control mechanism to
assure increased accuracy and production of testing.
ACURITE Digital Readout
Backlash Setting Dial 0.001
Draw Rods
Worklight
Automatic Lube

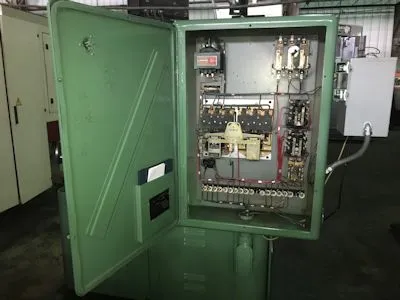

Electrical Schematic
Sequence of Operations
