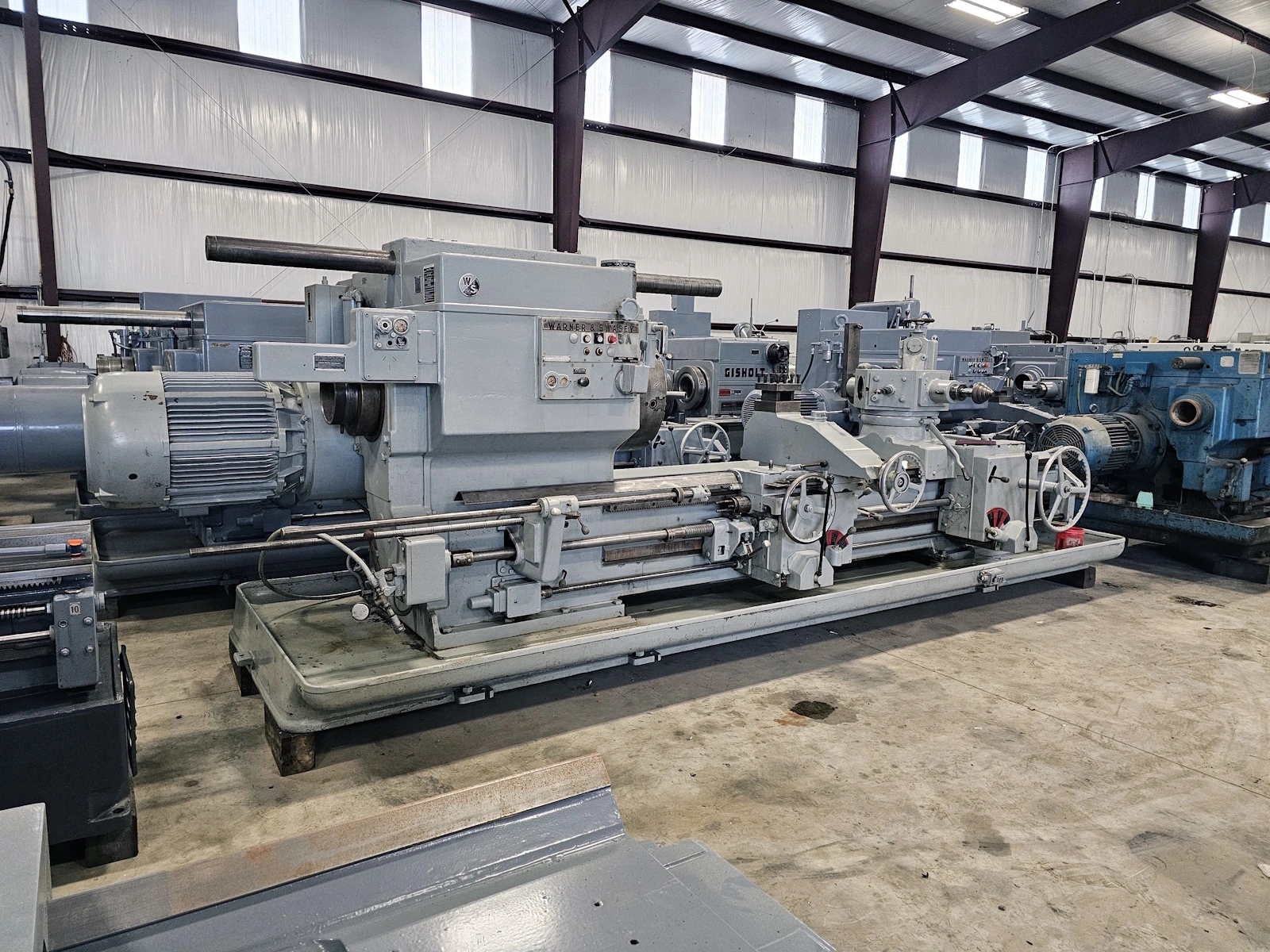

USED 1966 WARNER & SWASEY 5 A M-3870 Lot 5

5 A Used Warner & Swasey Square Head Saddle Type Turret Lathe

Swing Over Bed Ways.........................36"
Center Distance.............................96"
Swing Over Cross Slide Carriage.............32-3/4"
Spindle Hole................................9-1/4"
Spindle Speeds..............................10 To 281 Rpm's
Spindle Nose................................A-15
Chuck Size..................................24" 4 Jaw
Feeds Cross.................................0.0035 To .167 I.P.R.
Feeds Long..................................0.005 To .167 I.P.R.
Main Motor..................................2 Speed 30 / 60 Hp. 480
Floor Space.................................R-L 291" X F-B 90"
Height......................................90"
Weight......................................26,000 Lbs.
Slide Tool Holder...........................1
Flange Holders..............................2
Taper Attachment Front Apron................Yes
Tool Post 4 Way On Front....................Yes
Rapid Traverse Front And Rear...............Yes
Fixed Rear Turret...........................Yes
Chip Pan....................................Yes
Coolant.....................................Yes

Note Reconditioning:
Machine's front and rear aprons reconditioned.
Front & rear rapid traverse boxes will be reconditioned.
Rapid traverse drive box reconditioned.
New bearings in main motor.
New feed and rapid shafts.
Headstock cleaned and flushed, new filters and oil.
New lockdown pin and bushing in hex turret and square turret.
New nut and screw in front cross slide.
Gibs reworked and refitted.

It is recommended that you rebore the flange tool holders on the rear
turret to ensure they are on center once the machine is level.

Reconditioning will take 16 To 20 weeks after receipt of P.O.

Price after reconditioning $149,500.00

Optional:
New 32" 4-Jaw Gator Heavy-Duty Chuck...........$17,350.00
