200212

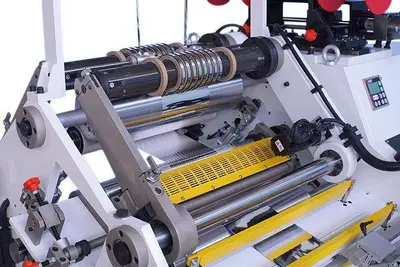

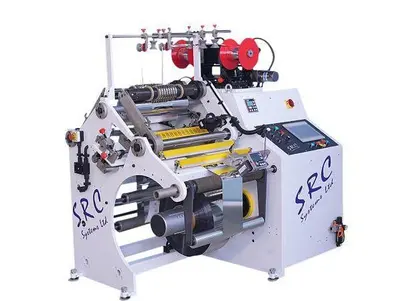

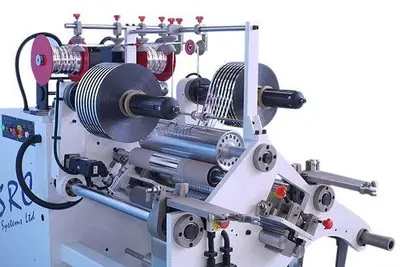

One (1) New SRC Systems Ltd. Model 645CS Narrow Web Slitter Rewinder
Maximum roll width: 20" (500mm)
Unwind type: Shafted
Maximum roll diameter: 24" (600mm)
Unwind shaft: 3" (76mm) diameter steel lug type air shaft
Core size ability: 3" (76mm); 6" (152mm) with adaptor
Tension control: Driven with pneumatic dancer arm
Tension range: 10- 100 Newton's
Guiding system: BST Ekr500 ultrasonic sensor for edge control
Guider traverse: +/- 2.5" (65mm)

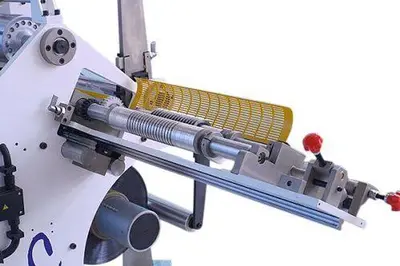

Slitting Section:
Slitting type: Pre-ground rotary shear with removable razor comb attachment
Minimum slit width: .2" (5mm)
Main dive:
Drum roller: 150mm dia Hard Chromed drive roller with pneumatic nip drive
Rewind section:
Rewind type: Centre surface
Rewind shafts: Cantilevered interchngable air shafts
Core size: 3" (76mm)
Maximum rewind diameter: 20" (500mm)
Gap/ contact winding: SRC electronic/ pneumatic positioning system
Tension control: Lock core winding
Operator interface: 10" colour touch screen
SRC has over 25 years experience.
Est. 1994 in Ipswich, U.K.
SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
