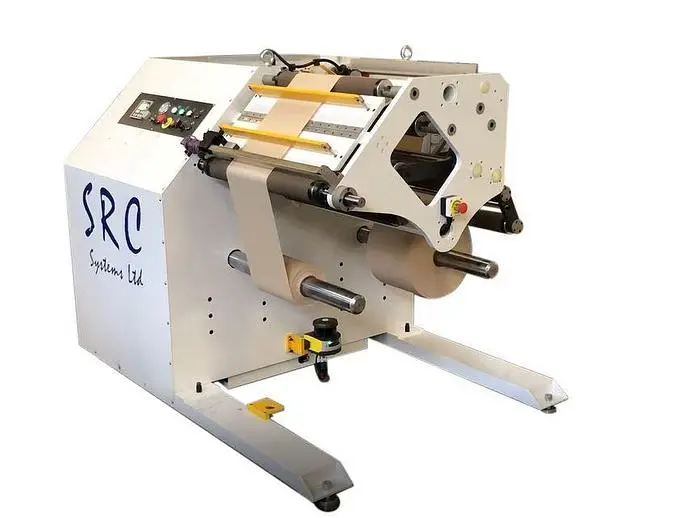

USED SRC SYSTEMS LIMITED 606 DOCTOR

200104
One (1) New SRC Systems Ltd. Model 606 Cantilevered Doctor Machine
Reversible direction winding.
Max Web width; 24" (600mm)
Parent roll max. diameter; 24" (600mm)
Parent roll max weight; 330Lb (150Kg)
Winding shafts: 3" (76mm) pneumatic shafts
Tension control: Pneumatic dancer arm
Tension range; 4.4 - 44Lb (2 - 20Kg)
Unwind lay-on arm: Pneumatic
Splice table: Full width aluminum table wtih pneumatic clamps
Guiding system: BST Ekr500 edge guide
Web guide; +/- 2.55" (65mm)
Slitting; Razor in air
Machine speed; 1350fpm (400mpm)
Rewind diameter: 24" (600mm)
Rewind lay-on arm: Pneumatically controlled
10" color touch screen
Optional:
Trim winder/ vacuum blower
Spreader Roll
SRC has over 25 years experience.
Est. 1994 in Ipswich, U.K.
SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
