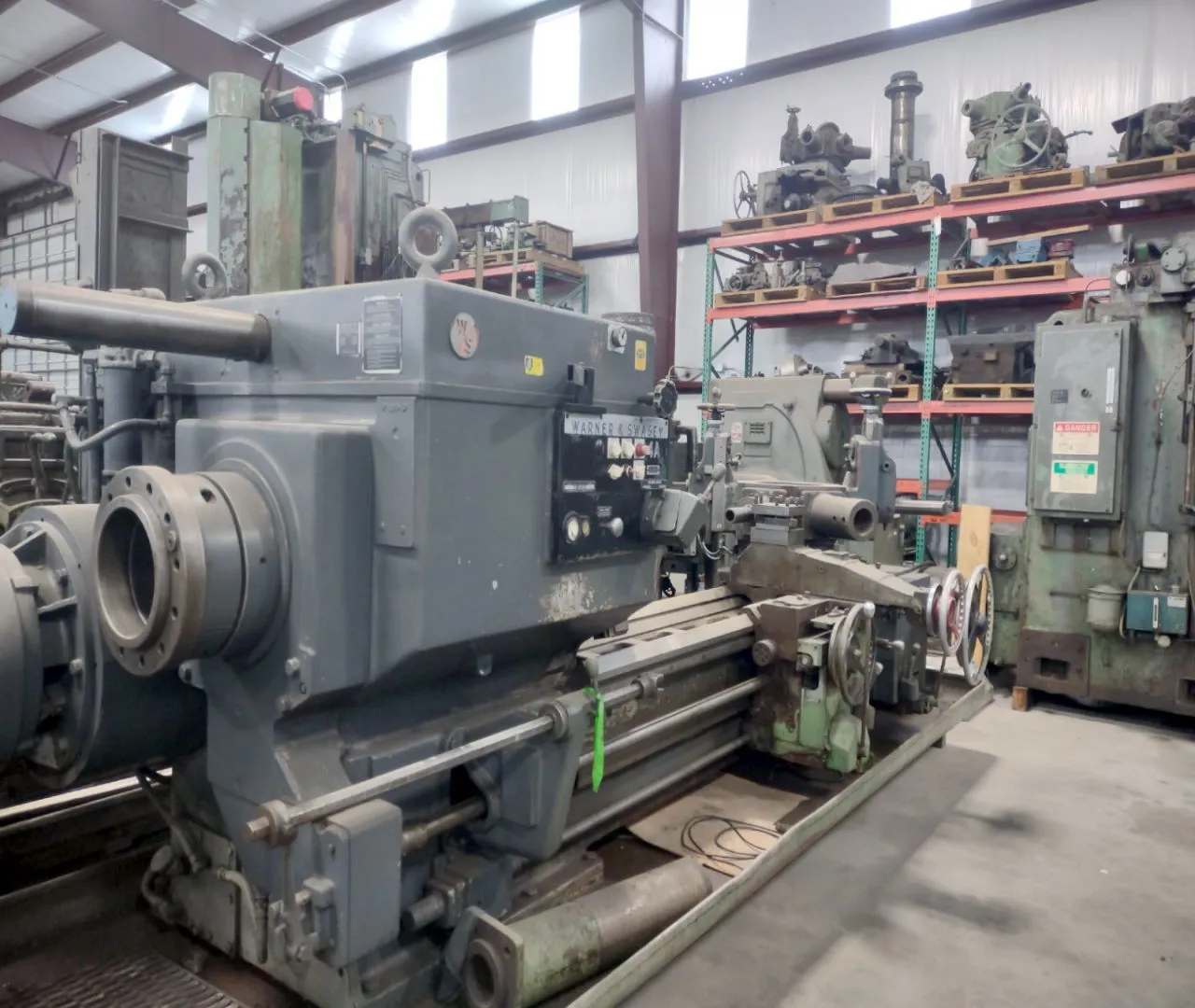

USED 1969 WARNER & SWASEY 4A M-3550 Lot 46

4 A Used Warner & Swasey Square Head Saddle Type Turret Lathe

Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 62"
Spindle Hole 9-1/4"
Spindle Nose A-15
Chuck Size 24" 4-Jaw
Spindle Speeds 20 To 526 Rpm's
Feeds Long. .005 To .167 I.P.R.
Feeds Cross .004 To .090 I.P.R.
Main Motor 60/30 Hp.
Floor Space Front To Back 7'
Floor Space Right To Left 20'
Machine Height 84"
Weight 22,000 Lbs.
Slide Tools 2
Flange Holders 3
Full Chip Pan And Coolant Yes
Fixed Rear Turret Yes
Rapid Traverse Front And Rear Yes
Tool Post 4 Way On Front Yes
Power Wrench Not Included

Note: Machine will be cleaned, painted, and cycled.
In good running condition.

Note Reconditioning: Machine will have front & rear aprons and rapid traverse box reconditioned. Rapid traverse drive box reconditioned, new bearings in main motor. New feed and rapid shafts. Headstock cleaned and flushed, new filters and oil. New lockdown pin and bushing in hex and square turret. New nut and screw in cross slide. Gibs reworked and refitted. New 25"4-jaw Gator chuck with reconditioning. It is recommended that you re-bore the flange tool holders on the rear turret to ensure they are on center once the machine is level. Machine will be cleaned, painted, and cycled. Machine may be seen under power with proper notice.
Price: $124,500.00 for the above work completed.
If you would like the machine reconditioned, the above work
will be started once the PO and deposit are received.
Estimated time frame eight weeks
