200202

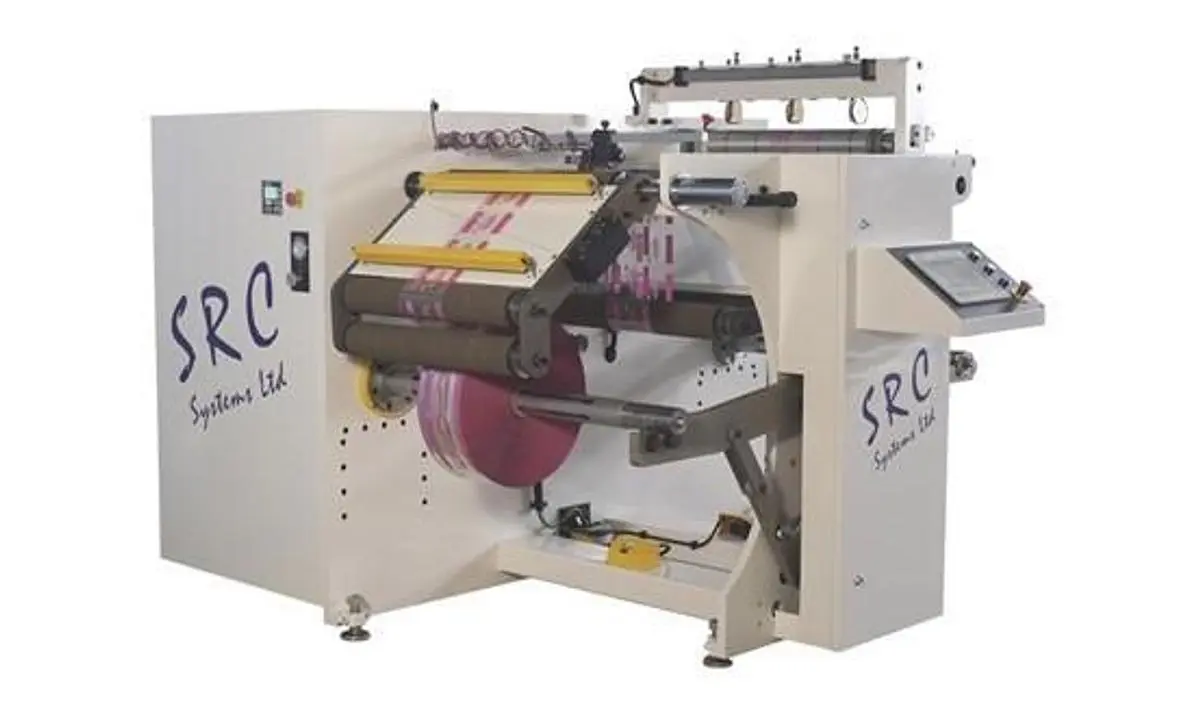

One (1) New SRC Systems Model 6100 Reversible Doctor Machine - Stock Machine
Lead time: Ready to ship out of the UK
Unwind/Rewind type: Cantilevered (supports during winding)
Unwind/Rewind maximum roll diameter: 40” (1000mm)
Unwind/Rewind maximum roll width: 24” (600mm)
Unwind/Rewind shaft size: 3” (76mm diameter)
Unwind/Rewind shaft type: Strip type air shaft
Guiding system: BST Ekr500 edge control
Guider traverse: +/- 65mm
Splice table: Full width aluminum table with 2 x pneumatic clamps
Shaft support: Pneumatically controlled
Tension control: Pneumatic dancer arm
Tension range: 20 – 200 Newton’s
Slitting type: Rotary shear/ Razor incorporating Mario Cotta PPJ knife holders for edge trim.
Two Mario Cotta pneumatic knifeholders included in price.
Banana roller: Fitted to the lay-on arm for web separation. Slitting is material dependent, and limited to number of slits possible.
Lay-on arm system: Pneumatically controlled lay-on for high-speed reverse direction control
Maximum machine speed: 1800 ft/minute (material & application dependent).
------------------------------------------------------------
Omron PLC
Yaskawa drives/Innovance inverters
Schneider control gear
Mindman pneumatics
Omron PLC
BST Edge guide
-------------------------------
SRC Systems, Ltd. Est. 1994 in Ipswich, U.K.
SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
