200223

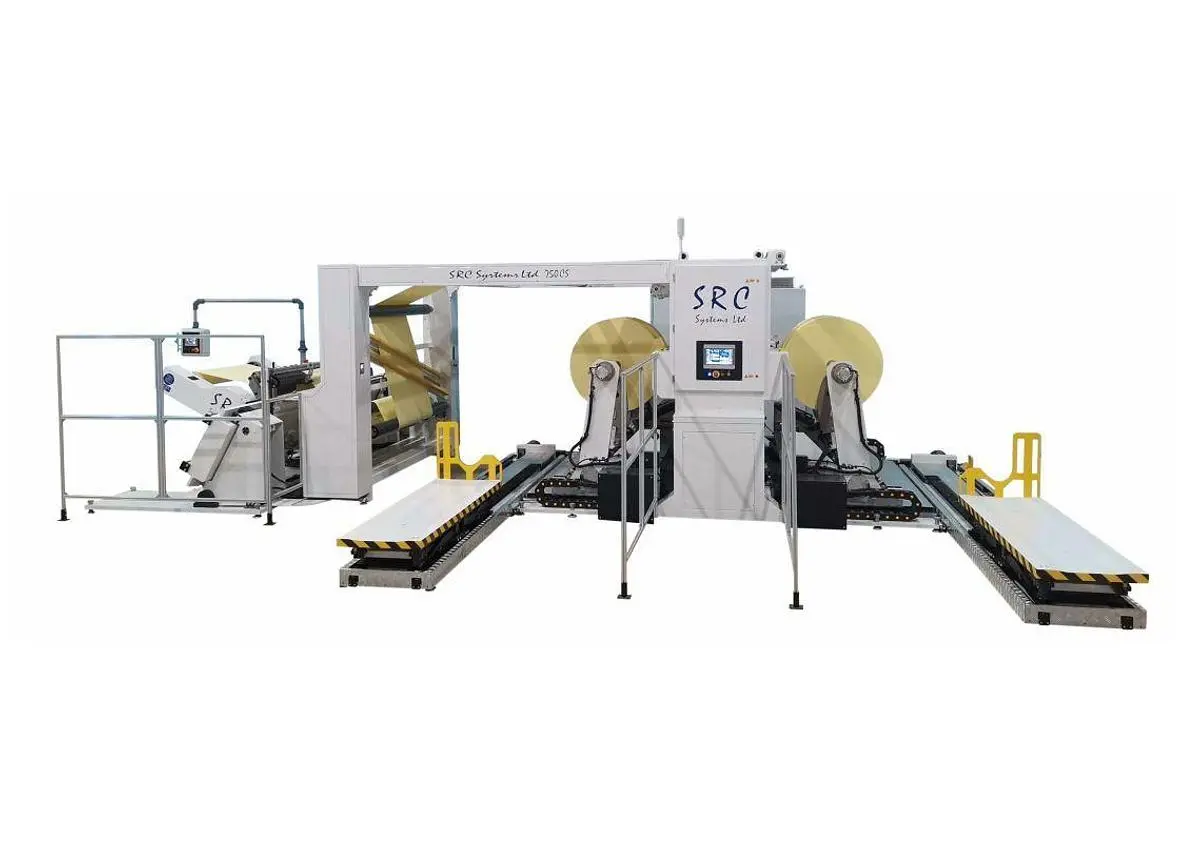

One (1) New 84" Wide SRC Systems Model 750CS Center Surface Slitter Rewinder with Unloading
Center surface driven
Max working width: 84"
Max unwind diameter: 70"
Max parent roll weight: 10,000 lbs
BST Edge guide
Speed: 2600 ft/minute
Rotary shear slitting: shaft-driven male and female knives. Positioning systems for both male and female included. Optional upgrade to Mario Cotta knife holders X50 is available as well upon request.
Max rewind diameter: 50"
Laser core positioning included.
Unloading is a push off system which transfers the rolls onto a sliding trolley. The trolley is mounted to two sliding carriages which move the rolls away from the machine and to a safe off-loading area. The unloading system is included in the price
Available options:
Dual oscillating trim winders
Kongskilde trim blower
SRC has over 25 years experience.
Est. 1994 in Ipswich, U.K.
SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
