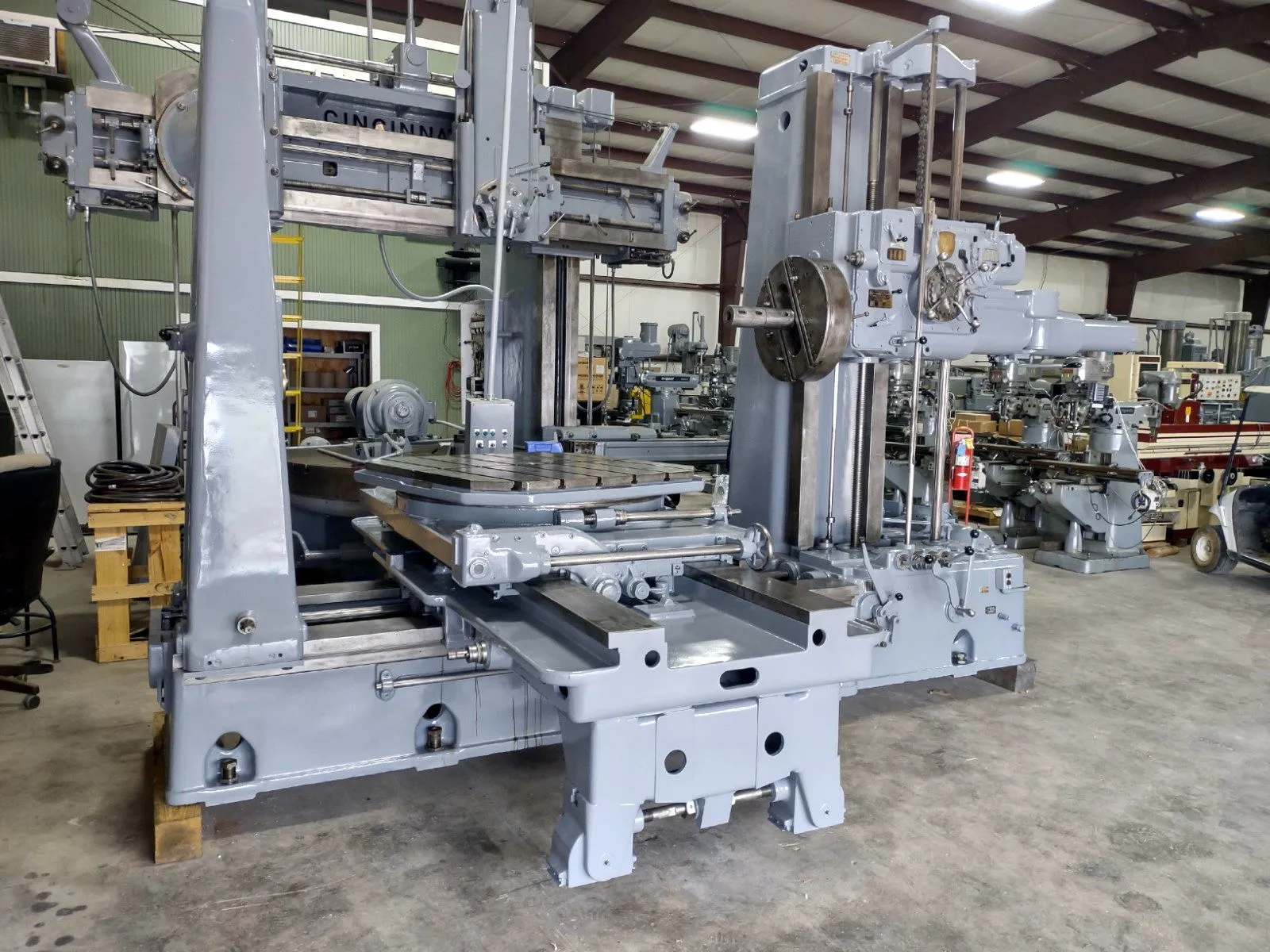

4" Used Giddings & Lewis Model 340 RT Table Type Horizontal Boring Mill
| Spindle Size | 4" | 101.6 mm |
| Spindle Tvl. | 22" | 558.8 mm |
| Y-Vert Tvl of Head | 48" | 1,219.2 mm |
| X-Horiz Tvl of Table | 49" | 1,244.6 mm |
| Table-W | 48" | 1,219.2 mm |
| Table-L | 48" | 1,219.2 mm |
| Dimensions | R-L 20' X F-B 8' X Height 10' | R-L 20' X F-B 8' X Height 10' |
| Weight | 34,000 Lbs. | 34,000 Lbs. |
Spindle Size........................................4"
Spindle Taper.......................................# 5 Morse
Spindle Speeds Main.................................10 To 600 Rpm's
Spindle Feeds.......................................0.005 To 250 IPM
Spindle Travel Main.................................22"
Spindle Taper Auxiliary.............................#4
Spindle Size Auxiliary .............................2"
Spindle Travel Auxiliary............................7"
Spindle Speed Aux. .................................32 To 2,000 Rpm's
Spindle Head Travel Up & Down.......................48"
Saddle Travel In & Out With Tail Stock..............48"
Rotary Table Size...................................48" X 48"
Table Travel Cross..................................49"
Saddle And Table Feeds..............................0.05 To .250
Main Motor..........................................20 Hp.
Floor Space.........................................R-L 20' X F-B 8'
Machine Height......................................10'
Machine Weight......................................34,500 Lbs.
Built In Rotary Table...............................Yes
Tailstock...........................................No
Optional Cost:
Newall 3 Axis D.R.O System Vertical, Cross & Long...$15,500.00
20" Facing Head With Engagement Clutch..............$19,500.00
Tail Stock And Shaft................................$15,750.00
Note: Machine has been cleaned, painted and cycled.
Headstock and gearboxes drained and flushed.
