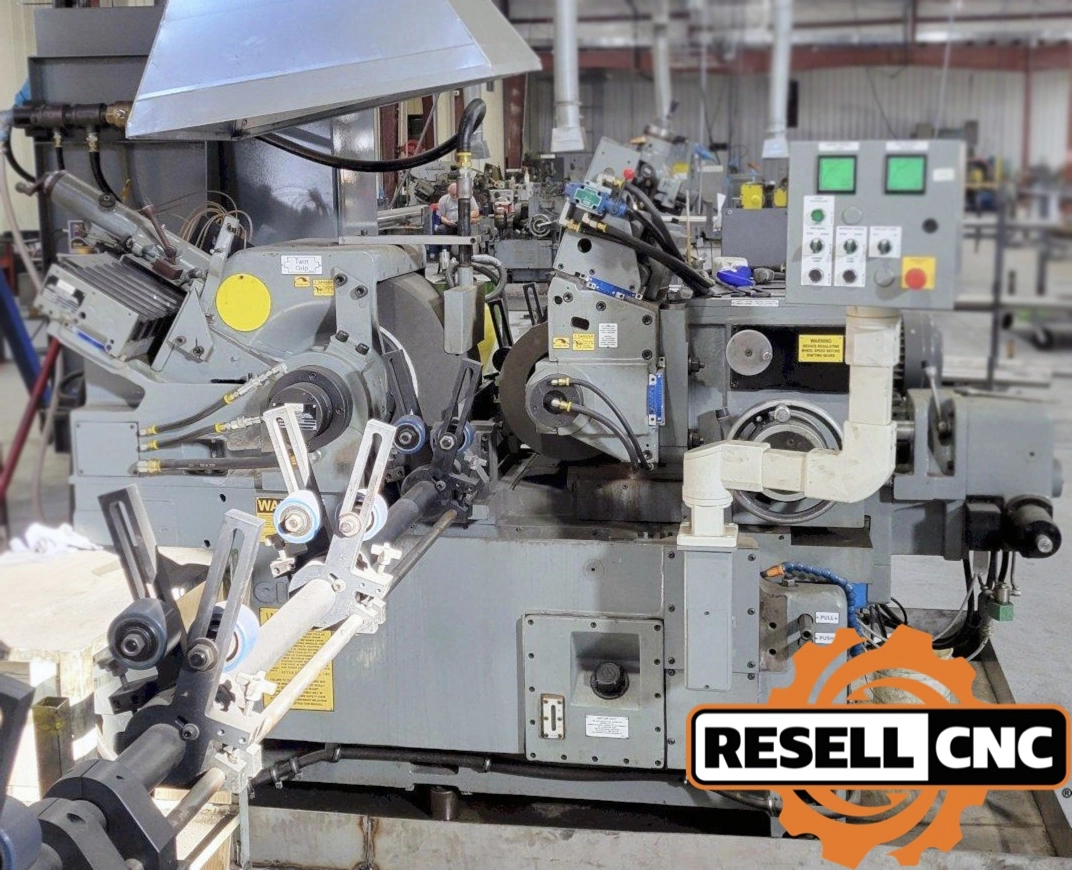

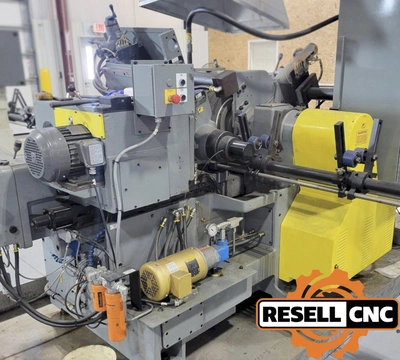

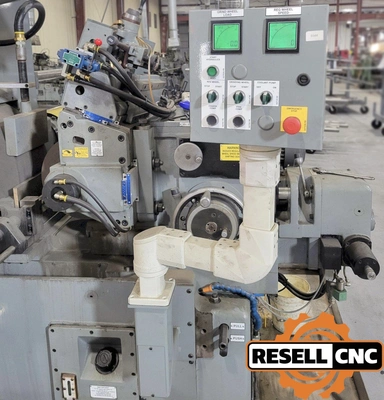

USED 2023 Cincinnati 230-10

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Hydraulic Grinding Wheel Profile Truing Unit – Automatic Truing w/ Diamond Advance

Hydraulic Regulating Wheel Profile Truing Unit

Front Infeed Handwheel – Micrometer Type

Electro-Hydraulic Automatic Infeed Attachment – Electro-Hydraulically Operated Without Hydraulic Ejector

Loading Dwell w/ Electro-Hydraulic Automatic Infeed Attachment

Compensating Devices for Infeed Operations – Used w/ Electro-Hydraulic Automatic Infeed Attachment – Push Button

Barnes MPE-15 Coolant System

In & Out Long Bar Attachment



Specs:

Capacity: 1/4-inch – 4-inch dia.

Wheels: Grinding – widths up to 10-inch, 12-inch hole 24-inch dia.

Regulating – widths up to 10-inch, 5-inch hole w/ 2-inch C.B. in back and 1.5-inch C.B. in front 12-inch dia.

Wheel speeds – infinitely variable: 11 – 300 RPM

Sizing adjustments – hand wheel graduated: 0.000050-inch

B Axis: false
C Axis: false
Grinder Type: Centerless
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 30
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
