USED GLEASON 15
Overview

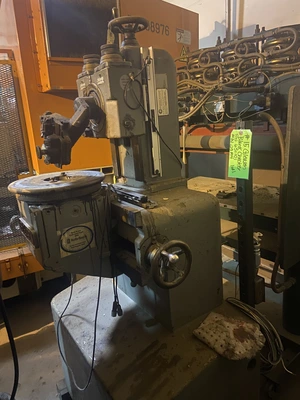

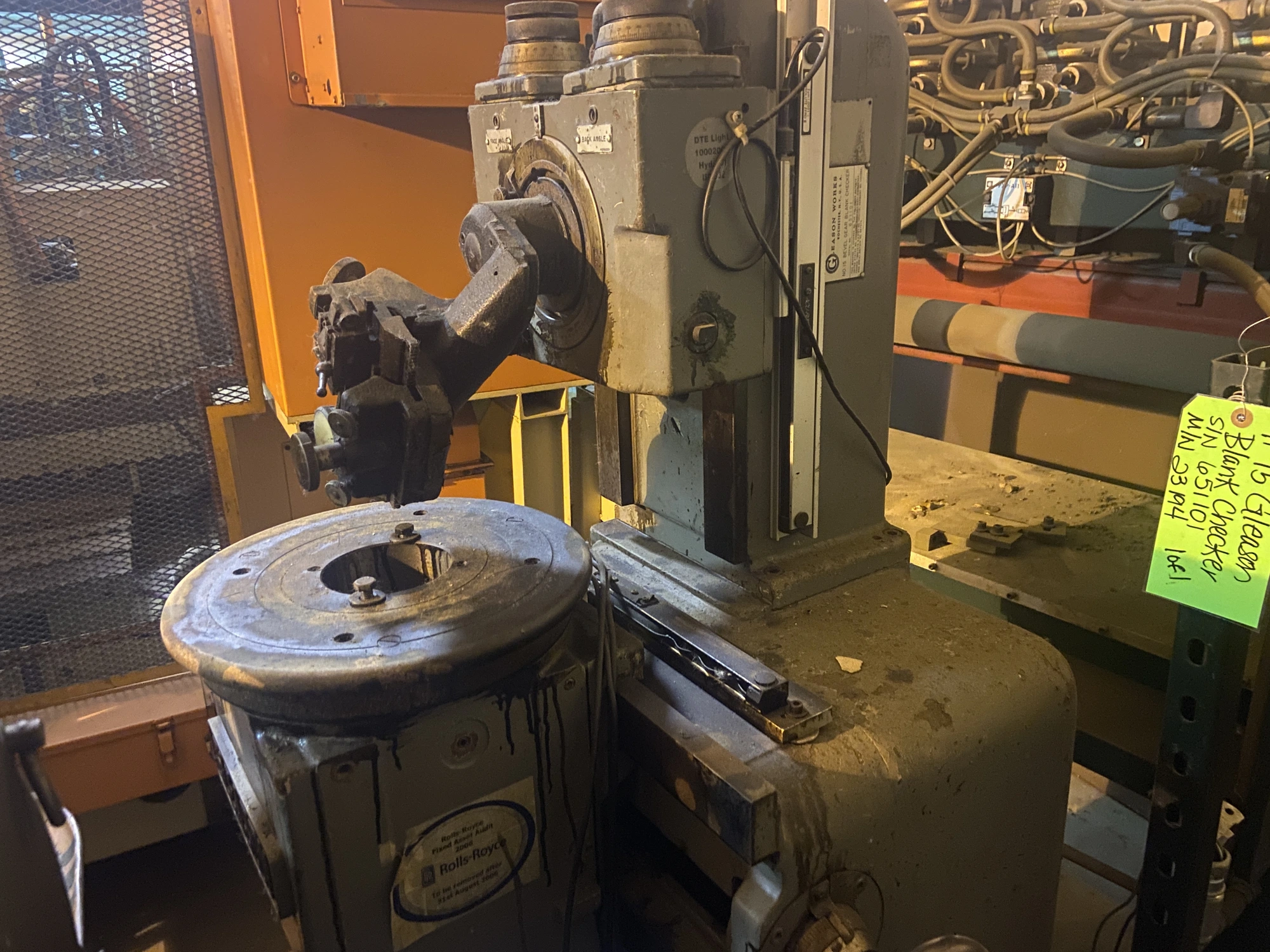

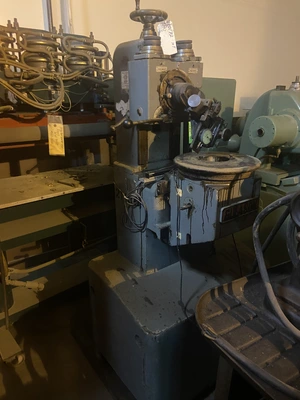

Used Gleason 15 Gear Blank Checker, ideal for precision work with max diameter of 20". Features include adjustable reading accuracy and resolution. Compact 22"x32-11/16" footprint, 68-1/2" height, and weighing 1,900 lbs.
Specs
EQUIPPED WITH:
SPECIFICATIONS:
Max. Diameter:20"
Min. Diameter: 2"
Max. Spindle Nose to Crown: 10"
Min. Spindle Nose to Crown: 2"
Back Angle up to 70 deg.: 4"
Back Angle 70-75 deg.: 4-1/4"
Back Angle 75-80 deg.: 4-1/2"
Back Angle 80-85 deg.: 4-3/4"
Back Angle Over 85 deg.
Travel of Indicator (Face Angle): 2"
Travel of Indicator (Back Angle): 1"
Max. Length Between Centers: 17-3/4"
Min. Length Between Centers: 6-1/2"
Diameter of Taper Bore, Large End: 3-29/32"
Taper Per Foot: 6"
Total Travel Vertical & Horizontal: 8.5", 10.5"
Reading Travel Vertical & Horizontal: 8", 10"
Ratio Display/Travel Vertical & Horizontal: 1/1, 2/1
Reading Accuracy at Sensor: +/-.0005"
Reading Accuracy at Display: +/-.0005"
Reading Resolution: +/-.0001"
Display Reset Adjust to "0" at Any Place in : 8" Travel
Min. High Reading: 7.9999
Floor Space: 22" x 32-11/16"
Height: 68-1/2"
Net Weight: 1,900 lbs
Shipping Weight (Boxed for Export): 2,175 lbs
Size of Case: 48" x 46" x 78"
