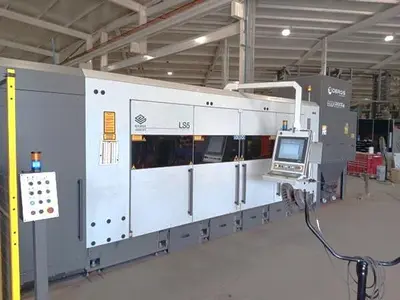

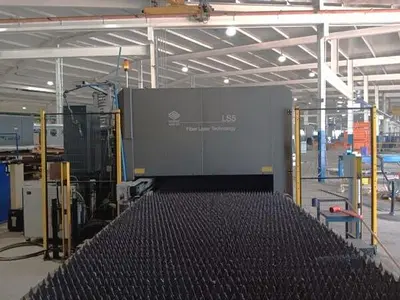

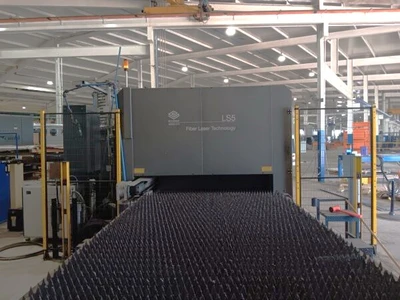

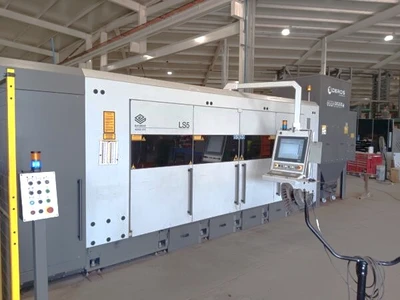

USED 2022 BLM GROUP LS5 12 KW FIBER LASER

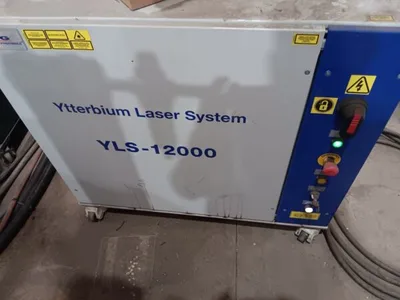

IPG Fiber 12000 Power Source

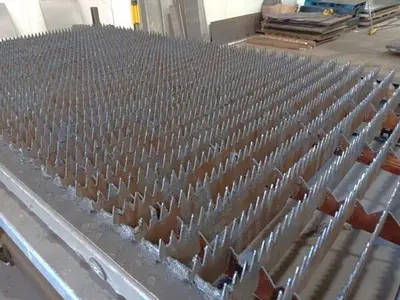

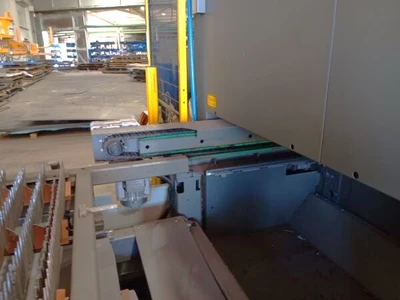

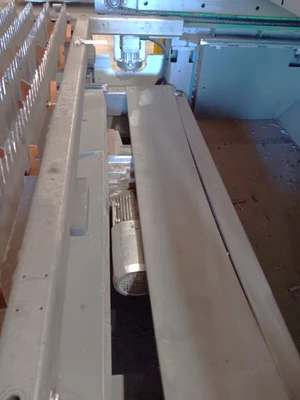

5' X 10' Duel Pallet Shuttle Table
Precitec ProCutter Zoom Cutting Head
IPG Closed Loop Chiller - Provides Laser Resonator Cooling

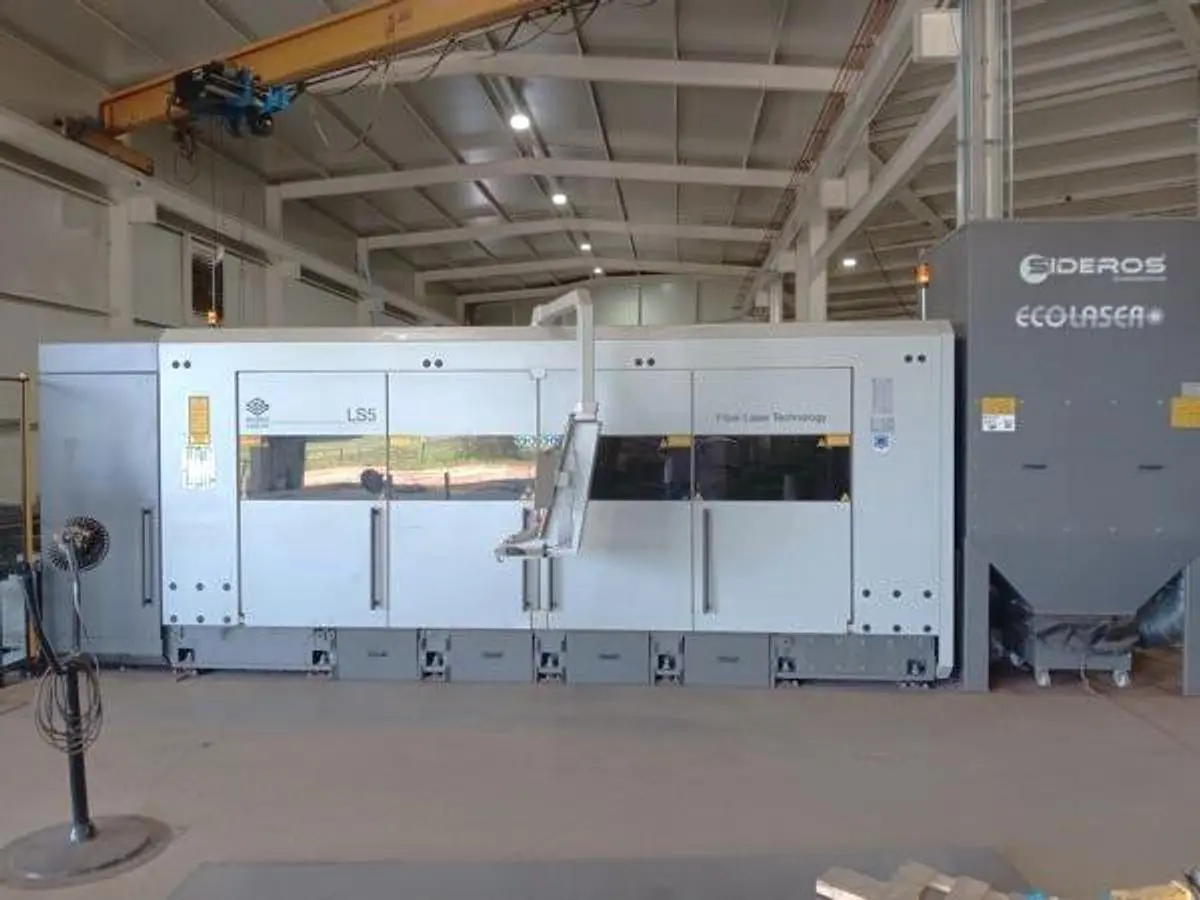

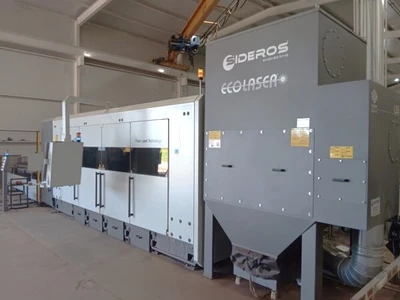

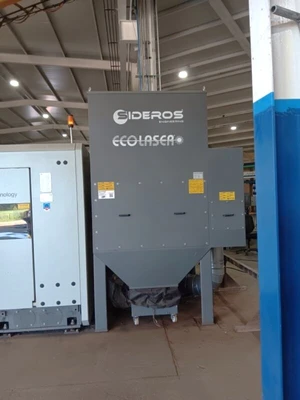

Dust Collector
Active Nozzle Change - 18 Stations
Active Piercing & Cutting Process Control
Lantek Expert On-Board - Allows Nest Modification at Machine

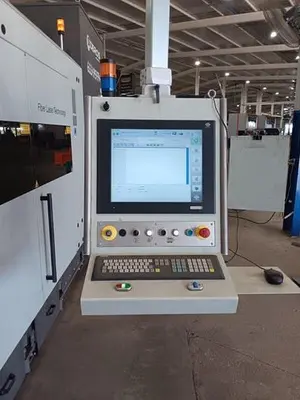

19" Touchscreen Panel
Scrap Collection Trays

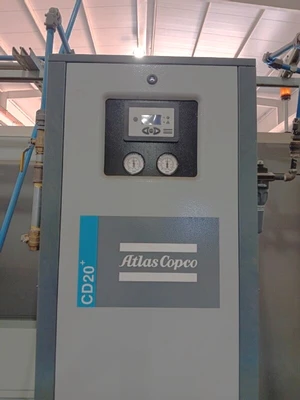

Assist Gas Filtration System
All Available Manuals
Machinable Materials Mild Steel, Stainless Steel, Aluminum, Copper, Brass

**Less than 1000 Production Hours**
**Price New as Equipped at over $820,000**

The 2022 BLM Group Model LS5 is a pre-owned 12 KW Fiber Laser machine built for precision and efficiency in fabrication tasks. It features a Siemens Control system, ensuring intuitive operation and reliability. The machine boasts a generous table size of 120" x 60", accommodating sheets up to 118" x 59", suitable for large-scale projects. With rapid traverse rates of up to 7716 IPM on the X and Y axes, the LS5 promises quick movements across its travel dimensions: 122" for the X-axis, 61" for the Y-axis, and 6" for the Z-axis.

This laser cutter is capable of processing mild steel with a maximum thickness of 1.57", delivering high-quality cuts with an accuracy of +/- .002" and repeatability within +/- .001". The LS5 model is designed to support fast-paced production environments, making it an ideal choice for businesses seeking reliable and high-power laser cutting capabilities.

Machine Control: Siemens Control
Table Size: 120" x 60"
Sheet Size: 118" x 59"
Wattage: 12 KW
X-Axis Travel: 122"
Y-Axis Travel: 61"
Z-Axis Travel: 6"
Repeatability: +/- .001"
Accuracy: +/- .002"
Rapid Traverse Rates X/Y: 7716 IPM
Maximum Cutting Thickness - Mild Steel: 1.57"
