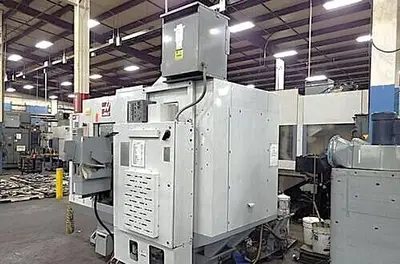

USED 2006 HAAS MDC-500 MILL DRILL CENTER

2 Pallet 180 Degree Type Pallet Changer
Coolant Thru the Spindle
Auxiliary Coolant Pump
Auger Style Chip Conveyor
Rigid Tapping
24 Station Side-Mounted Tool Changer
Flood Coolant System
Coolant System with Tank & Pump
Brushless Servos on All Axes
RS 232 Port Interface
All Available Manuals

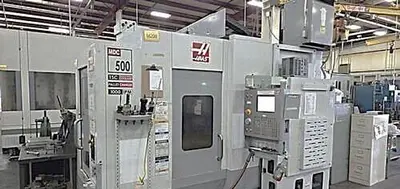

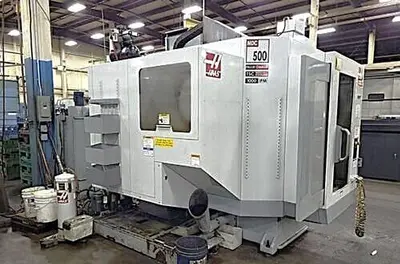

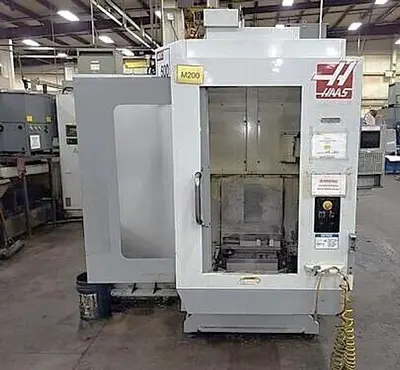

The 2006 Haas MDC-500 Mill Drill Center is a robust CNC Vertical Machining Center equipped to handle demanding tasks with efficiency. It features a dual pallet changer system, enhancing productivity by allowing for simultaneous loading and machining processes. The machine is driven by a Haas CNC control system, ensuring precision and ease of use. With table dimensions of 20"x12.75" and a maximum load capacity of 700 lbs, it provides ample space and support for various workpieces.

The MDC-500 boasts a versatile spindle with a CAT 40 taper, capable of reaching speeds up to 7,500 RPM, powered by a 20 HP motor delivering 75 ft-lb of torque at 1,400 RPM. The machine offers an X-axis travel of 20", Y-axis of 14", and Z-axis of 20", accommodating a range of machining operations. Additionally, it features a 24+1 station side-mounted ATC that facilitates quick tool changes, with a cycle time of just 4.8 seconds, and supports a maximum tool diameter of 3".

Additional features include a coolant-through spindle and a chip auger, contributing to efficient operation and maintenance. The rapid traverse rates of 1,000 IPM enhance productivity, while the machine's overall dimensions (143"x134"x113") and weight (14,000 lbs) reflect its sizeable capability. This used model is ideal for manufacturers seeking reliable performance and a reduction in downtime through its efficient pallet handling and tool management system.

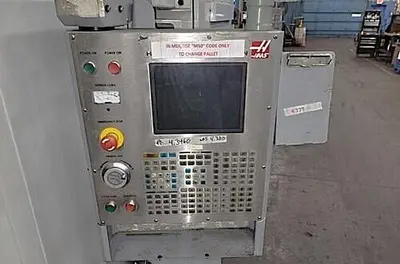

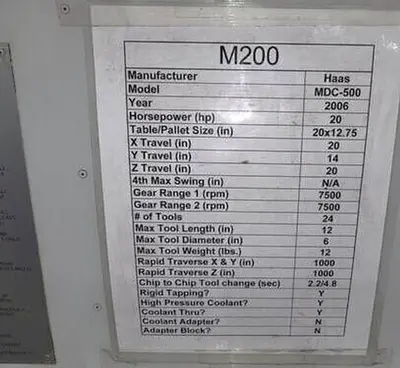

Control: Haas CNC Control

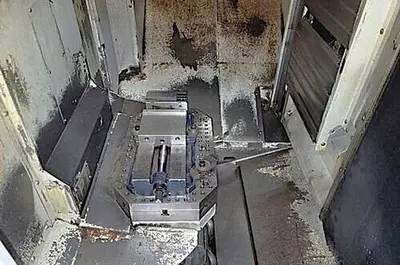

Table Size: 20"x12.75" (2) Pallets
Maximum Table Load: 700 lbs
X-Axis Travel: 20"
Y-Axis Travel: 14"
Z-Axis Travel: 20"

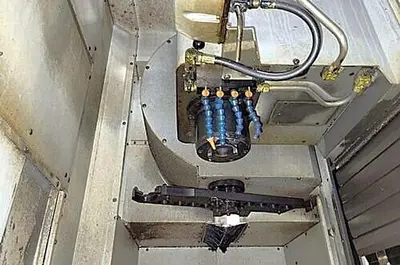

Spindle Taper: CAT 40
Spindle Speed: 7,500 RPM
Spindle Motor: 20 HP
Spindle Torque: 75 ft lb @ 1,400 rpm

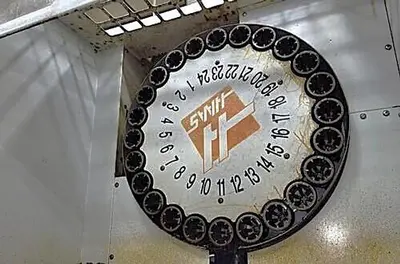

Tool Magazine Capacity: 24+1 Station Side Mounted ATC
Maximum Tool Diameter / Length / Weight: 3 "/ NA / 12 lbs
Tool Change Time Chip to Chip: 4.8 Seconds
Rapid Traverse Rates: 1,000 IPM
Machine Dimensions LxWxH: 143"x134"x113"
Machine Weight: 14,000 lbs
