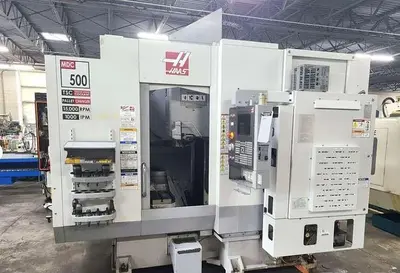

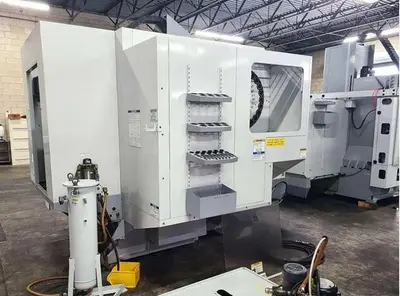

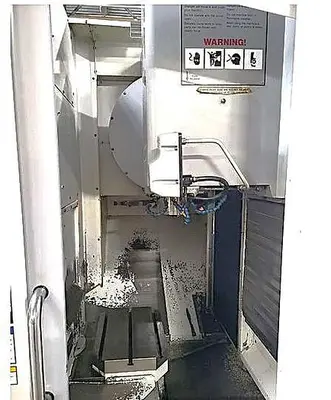

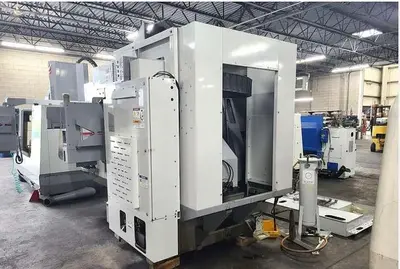

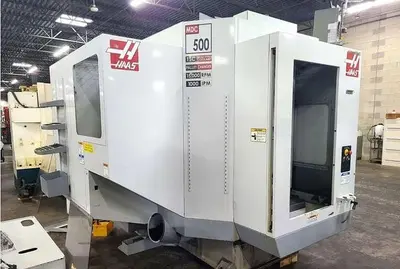

USED 2006 HAAS MDC-500 MILL DRILL CENTER

15,000 RPM Spindle
Coolant Thru the Spindle

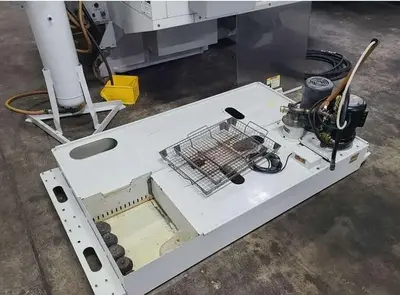

Coolant Filtration System
Auger Style Chip Conveyor
24 Station Side-Mounted Tool Changer
High Speed Machining
Rigid Tapping
Brushless Servos on All Axes
USB Port Interface (3.5" Floppy Disk Drive Conversion Kit)
RS 232 Port Interface
Wired 220V Electrics
All Available Manuals

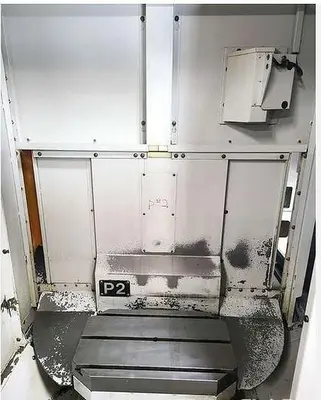

The 2006 Haas MDC-500 Mill Drill Center is a robust and versatile machine designed for efficiency in diverse manufacturing settings. Equipped with a Haas CNC control, it features a dual pallet system, each measuring 20" x 12.75", allowing for streamlined production workflows. The machine supports a maximum table load of 700 lbs, accommodating various workpiece sizes and weights.

This mill drill center offers substantial capabilities with its 20" x-axis travel, 14" y-axis travel, and 20" z-axis travel, powered by a 20 HP spindle motor. The spindle achieves speeds up to 15,000 RPM with a CAT 40 taper, suitable for high-speed machining operations. A coolant through spindle feature enhances precision and prolongs tool life by effectively managing tool temperatures.

Additional highlights include a 24+1 side-mounted automatic tool changer, with a tool change time of 4.8 seconds, and rapid traverse rates of 1,000 inches per minute, optimizing cycle times. With machine dimensions of 133" x 105" x 101" and a weight of 16,000 lbs, this used model offers reliability and performance in a manageable footprint, ensuring it fits a variety of production environments.

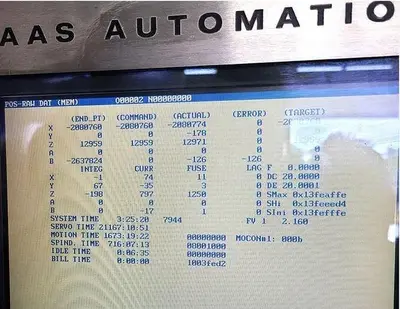

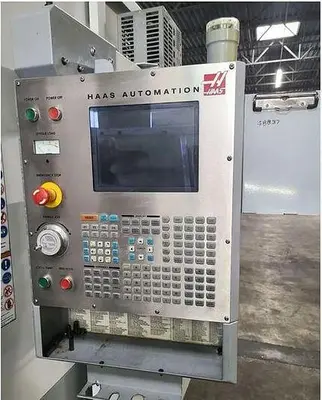

Control: Haas CNC Control
Table Size: 20"x12.75" (2) Pallets
Maximum Table Load: 700 lbs
X-Axis Travel: 20"
Y-Axis Travel: 14"
Z-Axis Travel: 20"
Spindle Taper: CAT 40
Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Torque: 75 ft lb @ 1,400 rpm
Tool Magazine Capacity: 24+1 Side Mounted ATC
Maximum Tool Diameter / Length / Weight: 3 "/ NA / 12 lbs
Tool Change Time Chip to Chip: 4.8 Seconds
Rapid Traverse Rates: 1,000 IPM
Machine Dimensions LxWxH: 133" x 105" x 101"
Machine Weight: 16,000 lbs
