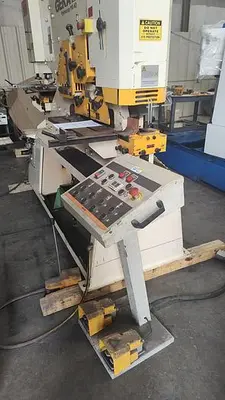

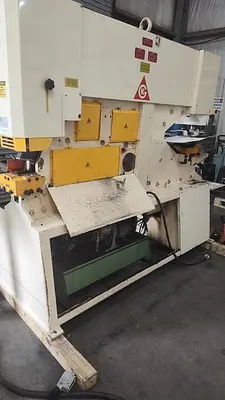

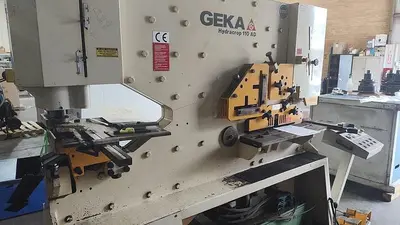

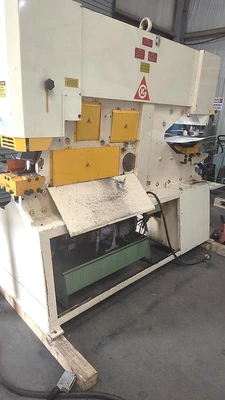

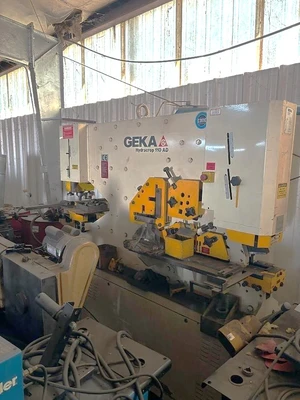

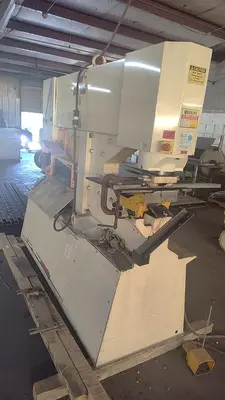

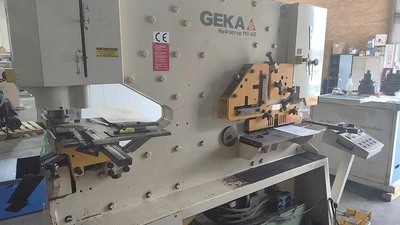

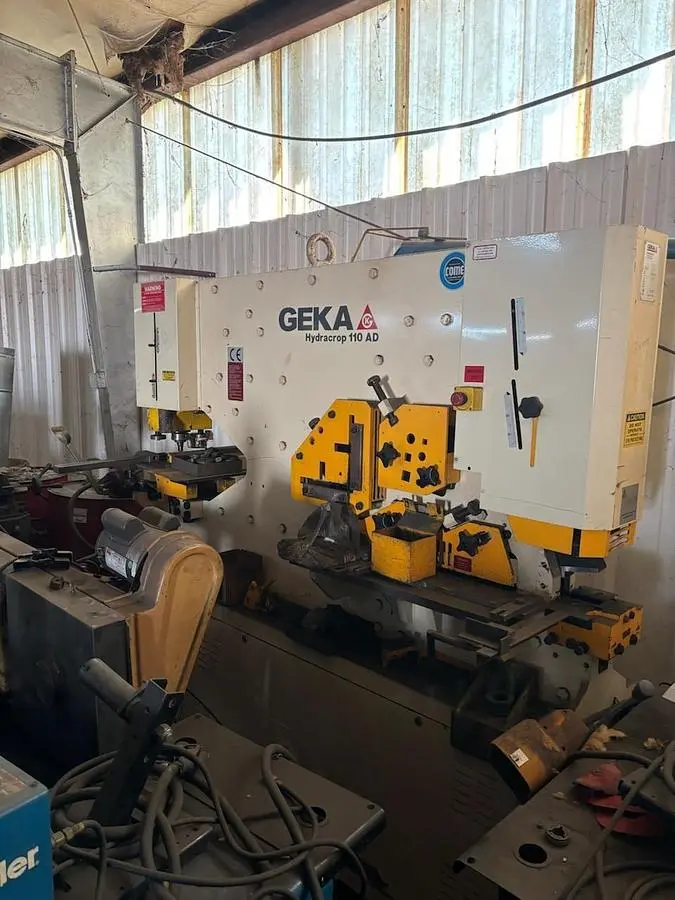

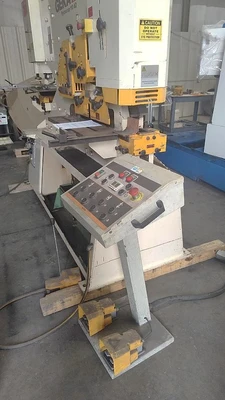

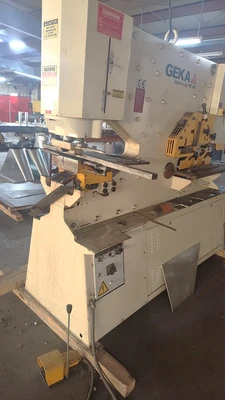

USED 2012 GEKA HYDRACROP 110 AD IRON WORKER

(5) Different Workstations:

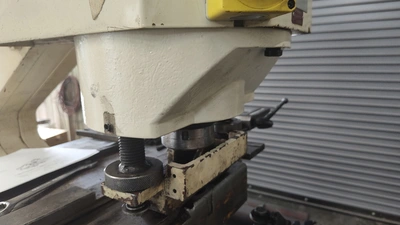

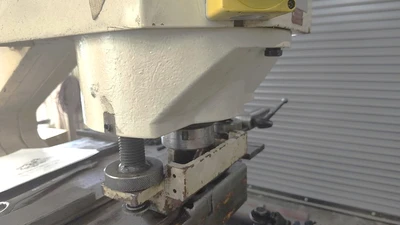

Punching Station
Angle Shearing
Flat Bars Shearing
Bars Cutting

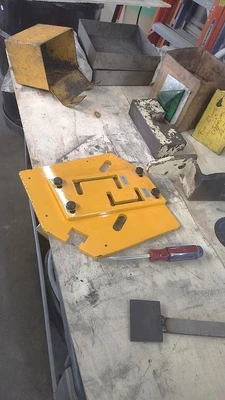

Notching
Has 2 Cylinders which means that it can be used by two workers at the same time to complete two different
Ironworking tasks such as punching and shearing at once.

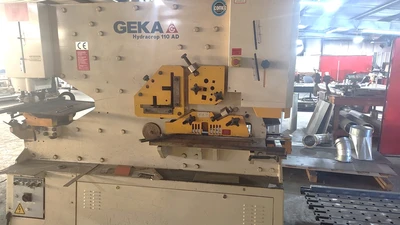

The 2012 Geka Hydracrop 110 AD Iron Worker is a robust fabrication machine designed for reliable performance in heavy-duty applications. It delivers a powerful punching force of 110 tons with a throat depth of 11.8 inches or 24 inches, suitable for handling demanding tasks. The machine can manage a maximum capacity of creating a 1.57-inch hole through material up to 0.79 inches in thickness.

This versatile ironworker is equipped to shear various materials efficiently. It can perform precise shearing of angles at 90 degrees for pieces measuring 5.98 x 5.98 x 0.512 inches. Additionally, it shears flat bars up to 23.62 x 0.59 inches, and both round and square bars up to 1.969 inches. The machine also features rectangular notching capabilities of 3.54 x 2.05 x 0.512 inches, accommodating diverse fabrication needs.

Powered by a 12 HP main motor, the Geka Hydracrop 110 AD offers an excellent blend of power and functionality in a compact design. With dimensions of 98 by 60 by 84 inches and a weight of 3,500 lbs, it is both space-efficient and stable, making it a suitable choice for small to medium-sized workshops aiming to enhance their operational efficacy.

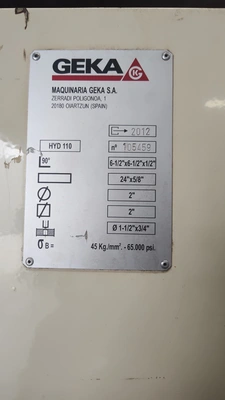

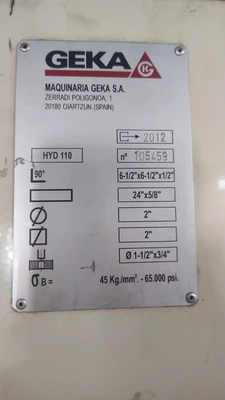

Punching Power: 110 Ton
Throat: 11.8"/24"
Maximum Capacity: 1.57" Hole x .79" Thickness
Shearing Angles at 90 Degrees: 5.98"x5.98"x.512"
Shearing of Flat Bars: 23.62"x.59"
Shearing of Square Bars: 1.969"
Shearing of Round Bars: 1.969"
Rectanglular Notching: 3.54"x2.05"x.512"

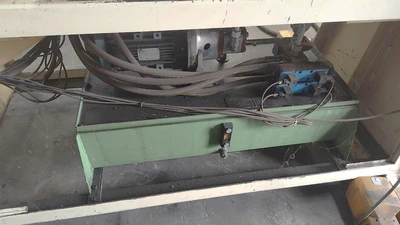

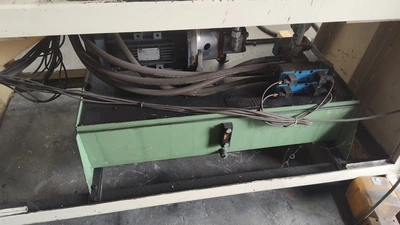

Main Motor: 12 HP
Machine Dimensions LxWxH: 98"x60"x84"
Machine Weight: 3,500 lbs
