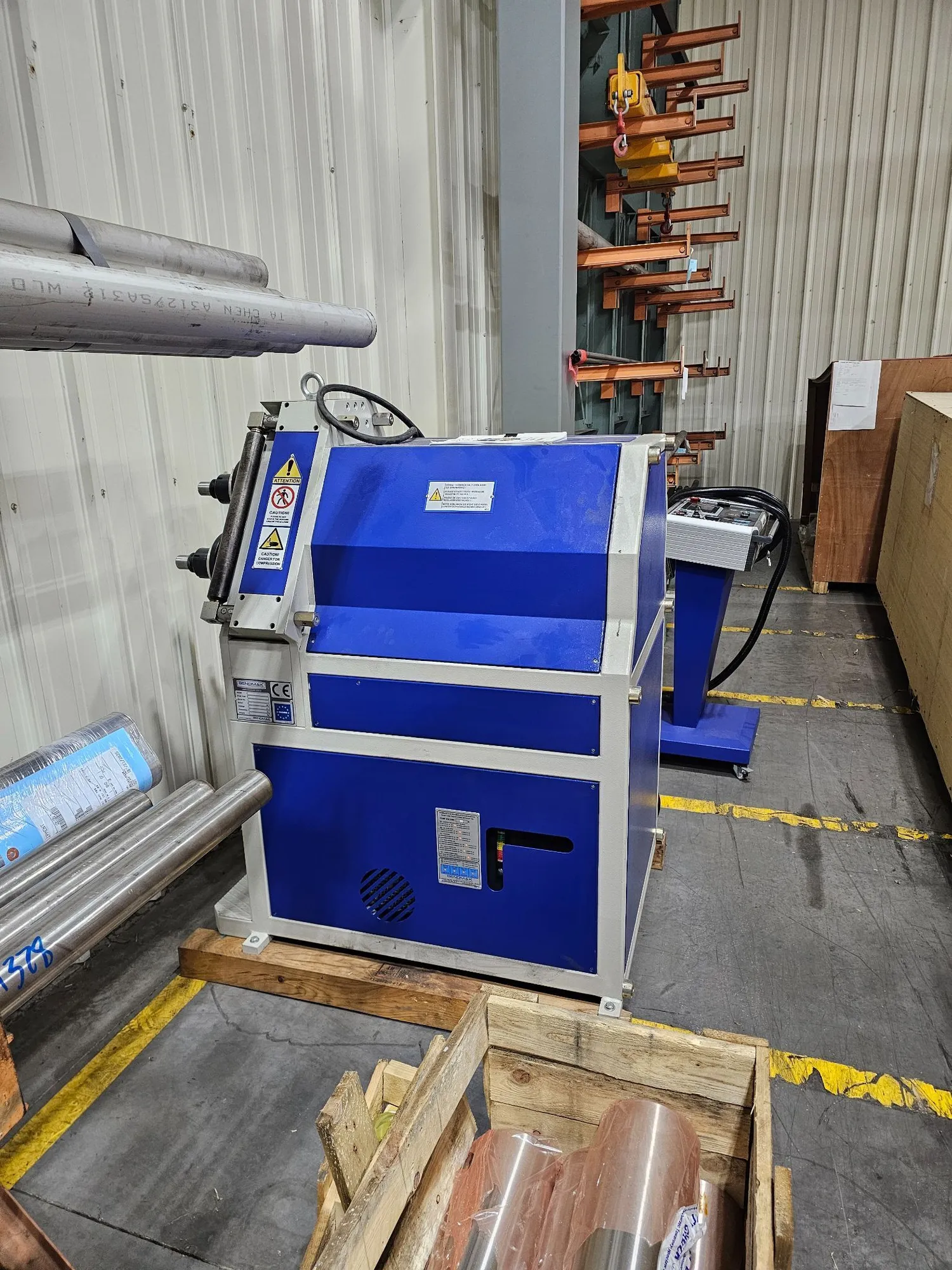

USED 2024 BENDMAK Pro 60

SPECIFICATIONS
TECHNICAL DETAILS
FOR PRO 60
Roll Diameter Ø IN
6.97
”
Shaft Ø IN
2.36” /
2.36”
Bending Speed FT/min
21
Motor Power HP
5.4
Length FT
4.6’
Height FT
4.76’
Width FT
3.12
’
Weight LBS
2,140

PRO60
Section Bending Machine
✓
Machine body is steel (ST-52) construction
✓
On
PRO60
rolls are driven by a hydraulic motor+planetary gearbox and gears
✓
Shafts made of special steel, hardened and grounded
✓
Guide rolls are in one direction manually adjustable
✓
One set standard rolls
✓
Manual lubrication
✓
Lower rolls hydraulic moveable up and down
✓
Digital display for lower rolls
✓
Separate and moveable control panel
✓
Horizontal & vertical working
✓
Suitable for CE
