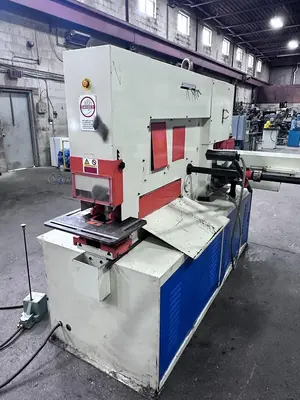

USED 2011 FABMASTER IWNC-110SD

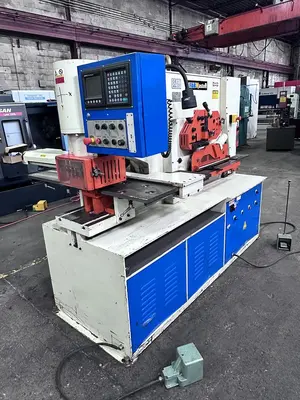

SEMI-AUTOMATIC CNC PUNCHING TABLE

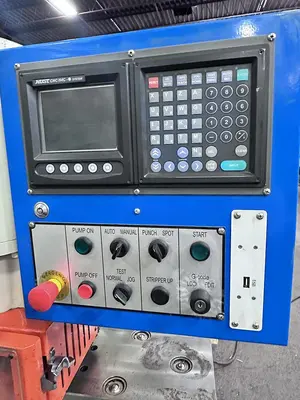

OPERATOR CAN PROGRAM JOBS DIRECTLY ON THE CONTROLLER OR IMPORT FILES FROM OFFLINE SOFTWARE USING FORMATS LIKE DXF OR NC1
BALLSCREW & LINEAR RAILS FOR X & Y AXES, ALLOWIG FOR ACCURATE & REPEATABLE POSITIONING
DUAL CYLINDER OPERATION
DUAL FOOT PEDALS

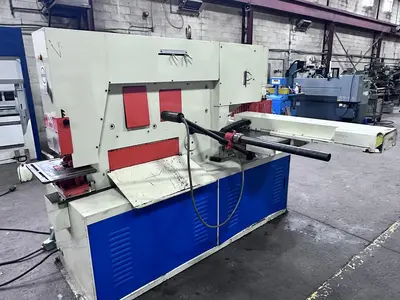

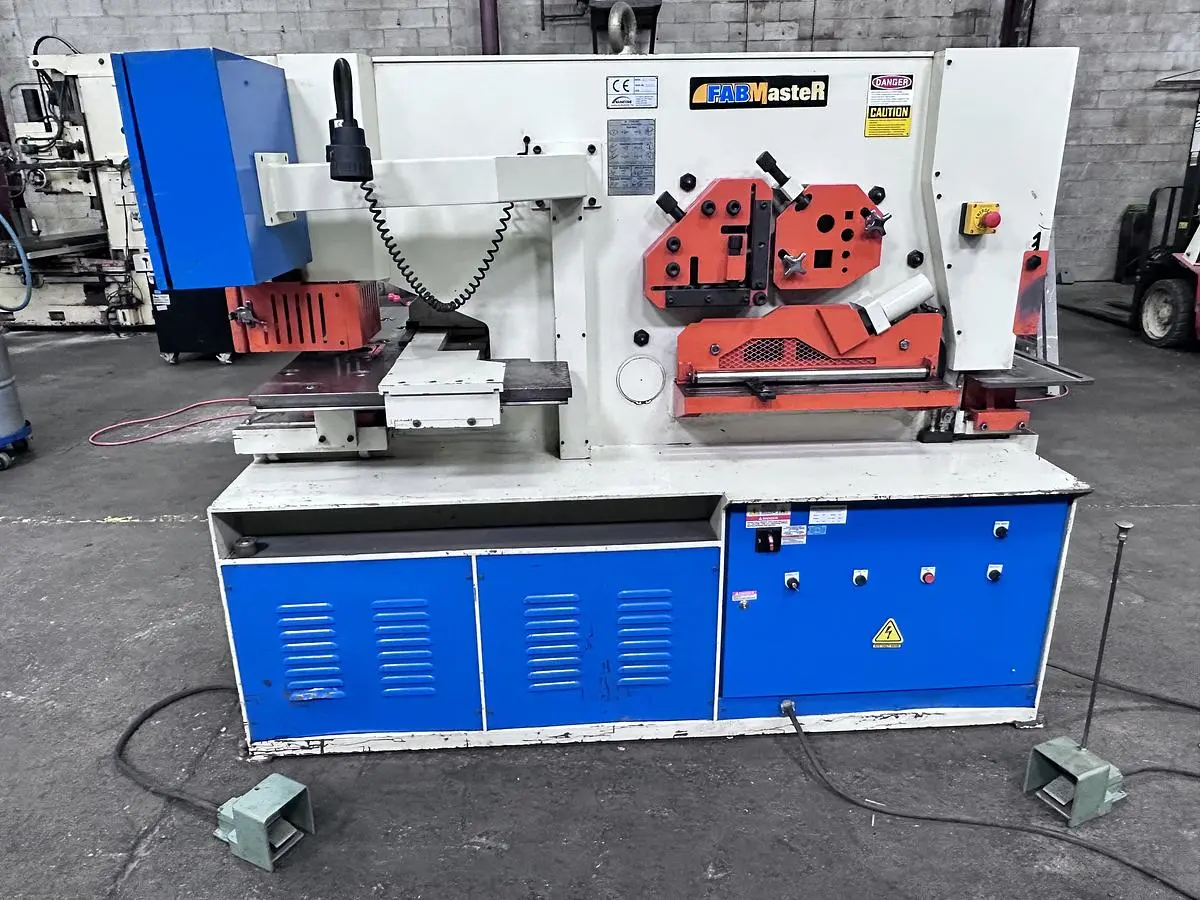

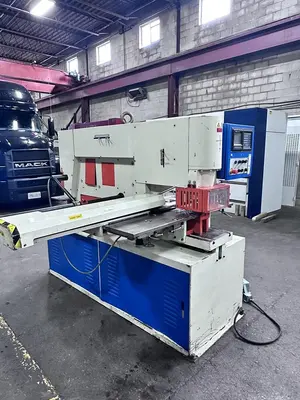

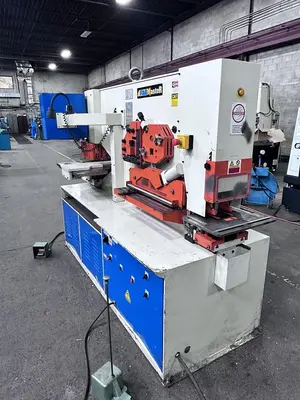

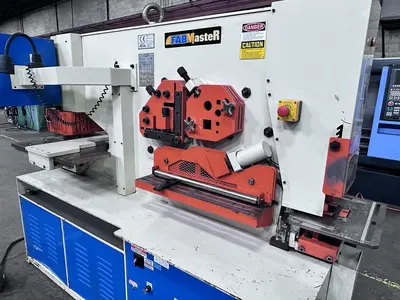

The 110 Ton Fabmaster CNC Hydraulic Ironworker, model IWNC-110SD, is a robust piece of equipment designed for precise and efficient metalworking tasks. This used machine features a semi-automatic CNC punching table, allowing operators to program jobs directly on the controller or import files using standard formats like DXF or NC1. The integration of ballscrew and linear rails for both the X and Y axes ensures accurate and repeatable positioning, making it suitable for demanding industrial applications.

Key specifications include a punching capacity of 110 tons, with the ability to punch a 1-1/8" diameter hole in 1" thick mild steel. The angle shearing station can handle 6" x 6" x 1/2" mild steel, while the flat bar shearing station accommodates materials up to 24" x 5/8" or 14" x 1" thick. The machine also supports cutting 1-3/4" round and square bars, and the notching station can process 2-1/2" x 3-1/2" x 1/2" thick mild steel.

For ease of use, the ironworker is equipped with dual cylinder operation and dual foot pedals, enhancing its operational versatility. Weighing approximately 7,600 lbs., this ironworker combines substantial power with the precision needed for various industrial applications, making it an excellent addition to any metal fabrication facility.
