USED 2014 VAPOR POWER MRG-5907-CHK-500-LN

Used Vapor Power Steam Generator, 17,250 steam lbs/hr, HTG Surface 669 SQ. FT. Fuel Natural Gas/ No. 2 Oil, Model MRG-5907-CHK-500-LN, Built 2014

Vapor Power 500 HP 150 PSI Steam Generator

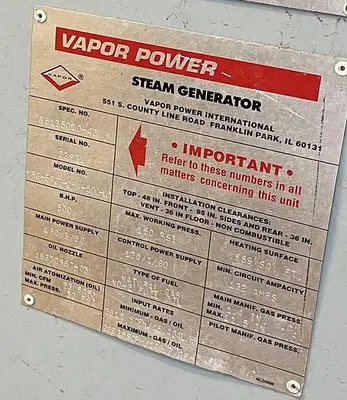

Equipment Description

Manufacturer: Vapor Power
Model: MRG-5907-CHK-500-LN
Horsepower: 500 HP
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Steam Capacity: 17,250 Steam Lbs/HR
Fuel Type: Natural Gas/ No.2 Fuel Oil
Year Built: 2014
Boiler Type: Steam Generator
Specification No: 6513510-43
Oil Nozzle: 46630967-03
Heating Surface: 669 SQ. FT.

Main Power Supply
Volts: 460V
Phase: 3 PH
Hertz: 60Hz

Control Power Supply
Volts: 120V
Phase: 1 PH
Hertz: 60Hz

Min. Circuit Ampacity
Ampacity: 132 AMP

Air Atomization (Oil)
Min. CFM: 23 SCFM
Max. Pressure: 30 PSI

Main Manif. Gas Press
Min: 1.4 IN W.C
Max: 11.5 IN W.C
