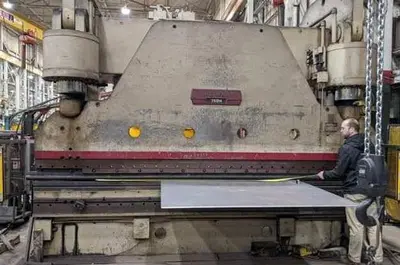

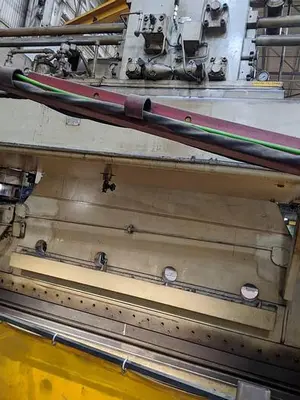

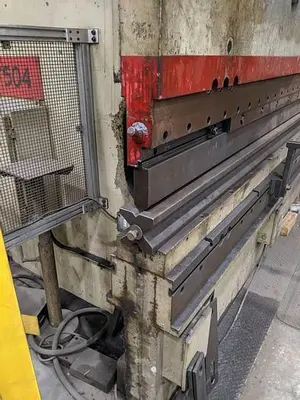

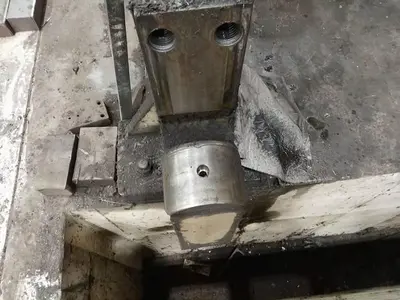

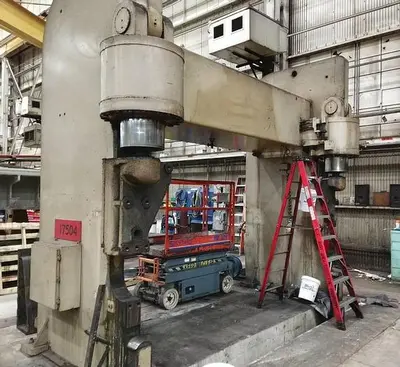

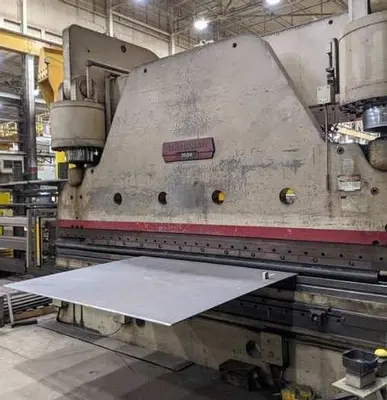

USED 1973 CINCINNATI 750H

Specifications:
Tonnage 750
Bed width 16'
Distance between housings 12'-5 3/4"
Bending capacity 1" x 11' w/ 10" die
Tonnage in fast press 300
Standard stroke 12"
Opening height 22"
Closed height 10"
Rapid advance 85 IPM
Fast press 47 IPM
Full tonnage press 20 IPM
Return speed 35 IPM
Fast return 65 IPM
Horsepower 60
Housing plates 6
Bed plates 6
Ram plates 5"
Weight 108,000 lbs.
Assembled dimensions 17', 4"W x 92" D x 13' 10" H
Below grade 48"

Equipped With:

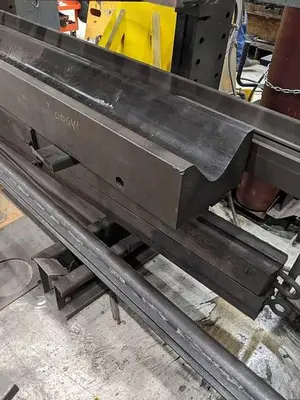

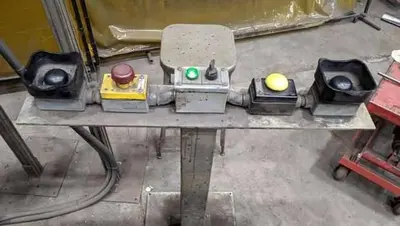

Light Curtain safety, 4 way die with 1", 2", 3" & 4" opening, 16' punch, dual operator palm button stations, or dual foot switches or single switchable, all manuals.

Cincinnati, Brake, Press Brake, Hydraulic, down acting, 750 ton, 16' bending width, 12', 53/4" between housings like

C392021-M512

...

S/N: 39149
