USED 1996 5.9" WOTAN CNC BORING MILL CUTMAX 3

Overview

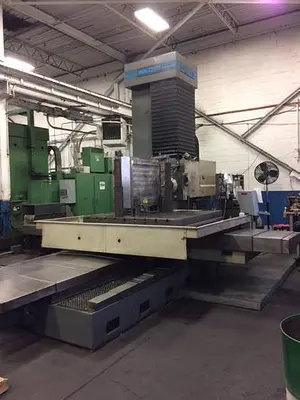

This Wotan 5.9" CNC Boring Mill Model Cutmax 3 is a heavy-duty horizontal boring mill designed for precision machining of large components. Originally manufactured in 1996 and updated with Lemoine 4th axis CNC control in 2013, this machine combines robust German engineering with modern control technology. Featuring a massive 78" x 78" indexing table and 98" of table travel, this boring mill handles large-scale precision work with ease.

Design and Performance

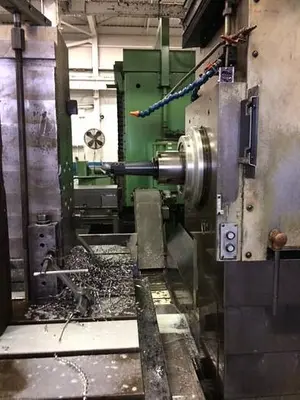

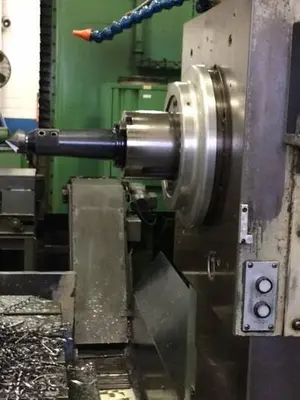

Spindle Size: 5.9 inches

Model: Cutmax 3

Manufacturer: Wotan

Year Built: 1996

Control Update: Lemoine 4th CNC Control (2013)

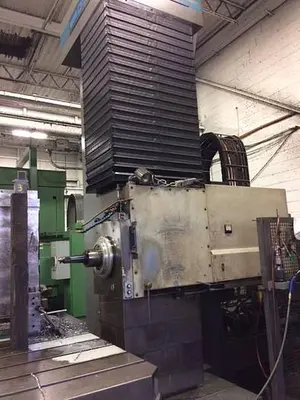

Vertical Travel: 78 inches

Table Travel: 98 inches

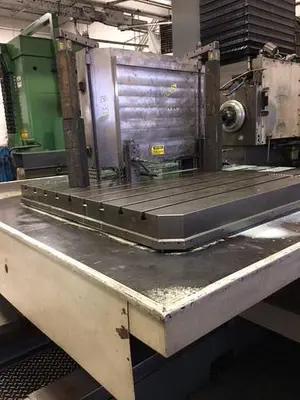

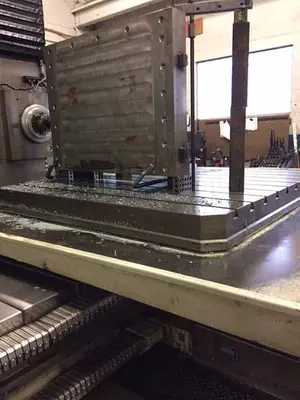

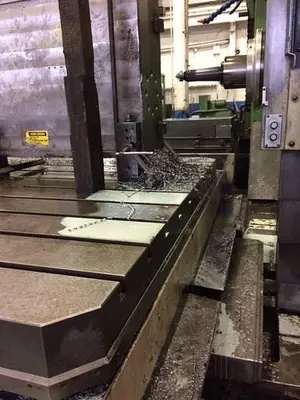

Table Size: 78" x 78" (Indexing)

Reference: HY258

Key Specifications

CNC Control: Lemoine 4th axis (Updated 2013)

Spindle Speed: Up to 2500 RPM

Coolant System: Through-spindle coolant

4th Axis: Full indexing at 360,000 positions

Y-Axis Travel: 78" vertical

X-Axis Travel: 98" horizontal

Rotary Table: 78" x 78" with indexing

Advanced Features

Modern Control: 2013 Lemoine CNC retrofit

Through-Spindle Coolant: Enhanced chip evacuation

4th Axis Indexing: 360,000 degree positions

Large Work Envelope: 78" x 98" x 78"

High Speed Spindle: 2500 RPM capability

Ideal Applications

Large Component Machining
Power Generation Parts
Oil & Gas Components
Heavy Equipment Manufacturing
Mining Equipment Parts
Aerospace Structures
Die & Mold Making
Marine Propulsion Components
Industrial Machinery Parts
Large Precision Boring Operations

Benefits

5.9" spindle handles heavy cutting
Updated 2013 CNC control ensures modern functionality
Massive 78" x 78" table accommodates large parts
98" table travel for extended reach
Through-spindle coolant improves cutting performance
360,000 indexing positions for precise positioning
German Wotan quality and construction
2500 RPM provides versatility
Proven machine with modern control upgrade
Ideal for large, complex components

Additional Information

Condition: Used - With 2013 Control Update

Stock Number: HY258

Original Year: 1996

Control Retrofit: 2013 Lemoine 4th axis

Table Configuration: Rotary indexing

Coolant Feature: Through-spindle system

Indexing Capability: 360,000 positions

Work Envelope: 78" x 98" x 78"

Applications: Large precision boring and milling
