OVERVIEW

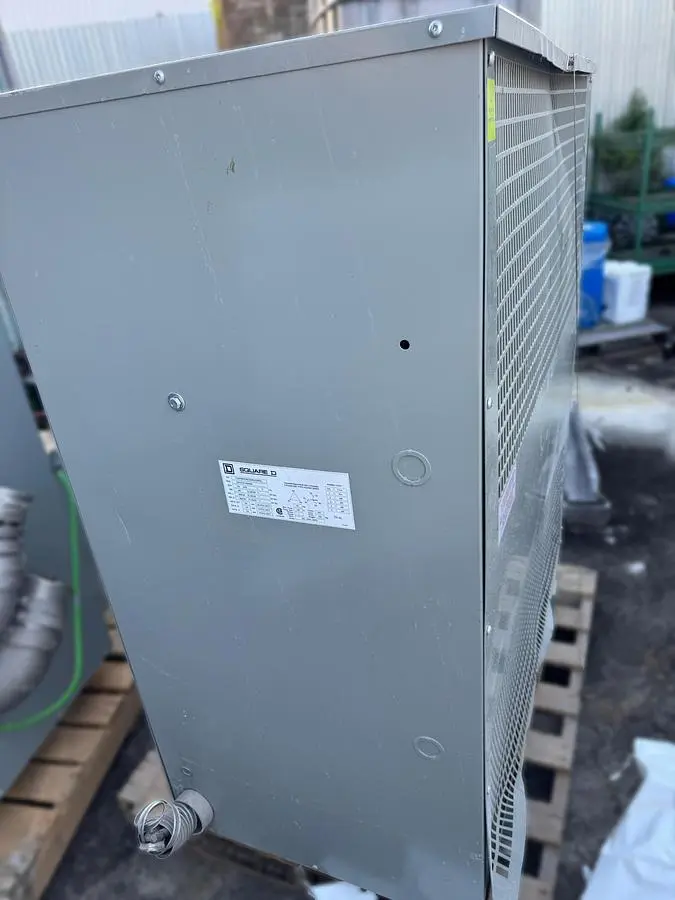

Square D Dry Type Transformer - Model CZTC0150 S000008, Catalog C150T68HFISCUZZNLPXSPCL, 150 kVA capacity, CSA certified LR 53763. Professional-grade three-phase dry type transformer featuring 480V primary voltage, dual secondary voltages of 208/120V, Class 220 insulation system with 135°C temperature rise rating at 135°C ambient elevation temperature. Complete with copper/aluminum connectors and five-position tap configuration (456V-504V). Built to CSA standards with dry-type construction for safe, maintenance-free operation. Ideal for industrial facilities, data centers, healthcare institutions, commercial buildings, or any application requiring clean power isolation and voltage transformation. Weight: 976 kg (2,152 lbs). Asset ID: T-10913.
EQUIPMENT SPECIFICATIONS

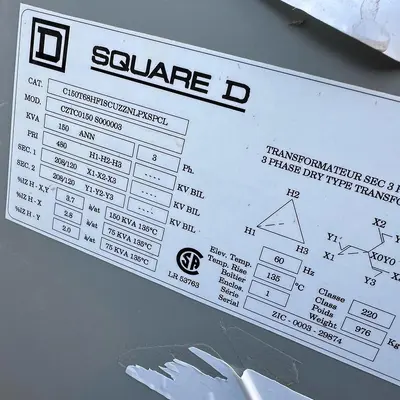

Transformer Model Information:
Manufacturer: Square D (Schneider Electric)
Catalog Number: C150T68HFISCUZZNLPXSPCL
Model Number: CZTC0150 S000008
Capacity: 150 kVA
Configuration: 3-Phase Dry Type Transformer
Weight: 976 kg (2,152 lbs)

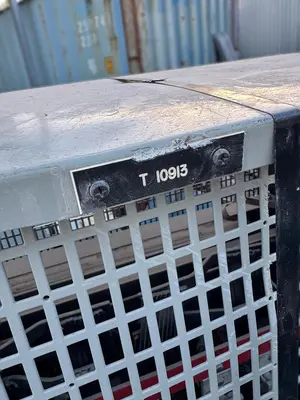

Asset ID: T-10913
CSA Certification: LR 53763
Enclosure Type: 1 (Boitier/Enclos. Série 1)
Serial Number: Z1C-0004-29874
Electrical Specifications - Primary:
Primary Voltage: 480 VAC
Winding Configuration: H1-H2-H3
Phase: 3-Phase (ANN)
Connection: KV BIL
Electrical Specifications - Secondary:
Secondary Voltage 1: 208/120 VAC, X1-X2-X3
Secondary Voltage 2: 208/120 VAC, Y1-Y2-Y3
Phase: 3-Phase
Frequency: 60 Hz
Connection: KV BIL
Insulation & Temperature:
Impedance H-X,Y: 3.8% at 150 kVA 135°C
Impedance H-X: 2.8% at 75 kVA 135°C
Impedance H-Y: 2.0% at 75 kVA 135°C
Elevation Temperature: 135°C
Temperature Rise: 135°C
Insulation Class: 220 (Classe)
Connector Type: CU-AL (Copper/Aluminum)
Available Tap Settings:
Position 1: 504 Volts
Position 2: 492 Volts
Position 3: 480 Volts (Standard)
Position 4: 468 Volts
Position 5: 456 Volts
KEY FEATURES & BENEFITS
Square D Quality Manufacturing:
Premium Schneider Electric brand
Dry type transformer design
150 kVA capacity
CSA LR 53763 certified
Heavy-duty commercial construction
Professional installation quality
976 kg robust build
Type 1 enclosure
High Performance Design:
150 kVA power capacity
480V primary voltage
Dual secondary: 208/120V
Three-phase operation
60 Hz frequency
Five-position tap configuration
Multiple winding impedance ratings
Split secondary capability
Dual Secondary Configuration:
Two independent secondary windings
208/120V output on both secondaries
X1-X2-X3 winding system
Y1-Y2-Y3 winding system
Flexible load distribution
Enhanced system redundancy
Multiple circuit capability
Load balancing options
Dry Type Construction:
No oil or flammable liquids
Fire-resistant operation
Indoor installation approved
Reduced environmental concerns
Minimal maintenance requirements
No leak potential
Safe for occupied spaces
Class 220 insulation system
Voltage Tap Flexibility:
Five tap positions available
456V to 504V adjustment range
480V standard setting
±5% voltage adjustment capability
Compensates for line voltage variations
Optimizes system performance
Field-adjustable configuration
Safety & Compliance:
CSA LR 53763 certified
Class 220 insulation
135°C temperature rise rated
CU-AL connectors
Multiple tap positions
Professional engineering
Type 1 enclosure
Canadian standards compliance
SYSTEM COMPONENTS
Main Transformer:
Square D Model CZTC0150 S000008
150 kVA capacity
Catalog C150T68HFISCUZZNLPXSPCL
Three-phase dry type design
Dry type construction
Class 220 insulation
Type 1 enclosure
Factory-tested assembly
Serial Z1C-0004-29874
Primary Side:
480 VAC input voltage
3-Phase configuration
H1-H2-H3 winding
Five tap positions
Voltage adjustment range: 456V-504V
CU-AL connection lugs
Complete terminations
Secondary Side 1:
208/120 VAC output
X1-X2-X3 winding configuration
3-Phase power
60 Hz frequency
CU-AL connectors
Complete terminations
Secondary Side 2:
208/120 VAC output
Y1-Y2-Y3 winding configuration
3-Phase power
60 Hz frequency
CU-AL connectors
Complete terminations
Enclosure & Protection:
Type 1 enclosure (Series 1)

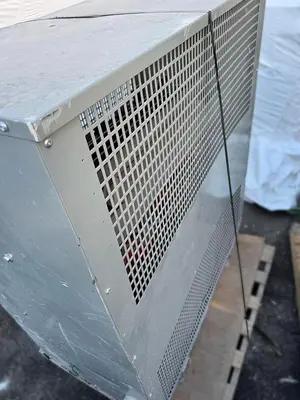

Ventilated design
Protective screening
Lifting provisions
Mounting base included
Access panels
Professional finish
Weather-resistant construction
Connection System:
Copper/Aluminum (CU-AL) lugs
Primary termination points
Dual secondary termination points
Ground connection provisions
Proper clearances
Code-compliant spacing
Thermal Management:
Natural convection cooling

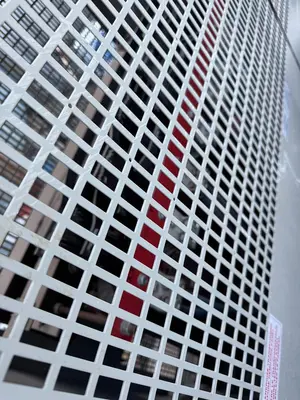

Ventilated enclosure design
135°C temperature rise rating
Class 220 insulation system
Ambient operation to 135°C elevation
Heat dissipation grilles
No forced cooling required
SPECIFICATIONS SUMMARY
Transformer:
Manufacturer: Square D (Schneider Electric)
Catalog: C150T68HFISCUZZNLPXSPCL
Model: CZTC0150 S000008
Capacity: 150 kVA
Weight: 976 kg (2,152 lbs)
Type: 3-Phase Dry Type Transformer
Enclosure: Type 1 (Series 1)
Configuration: 3-Phase
CSA: LR 53763
Serial: Z1C-0004-29874
Primary Electrical:
Voltage: 480 VAC
Phase: 3-Phase (ANN)
Winding: H1-H2-H3
Taps: 456V, 468V, 480V, 492V, 504V
Connection: KV BIL
Secondary Electrical:
Voltage 1: 208/120 VAC (X1-X2-X3)
Voltage 2: 208/120 VAC (Y1-Y2-Y3)
Phase: 3-Phase
Frequency: 60 Hz
Connection: KV BIL
Insulation & Rating:
Class: 220
Temperature Rise: 135°C
Ambient: 135°C elevation temp
Impedance H-X,Y: 3.8% at 150 kVA
Impedance H-X: 2.8% at 75 kVA
Impedance H-Y: 2.0% at 75 kVA
Connectors: CU-AL
Physical:
Construction: Dry type
Cooling: Natural convection
Standards: CSA LR 53763 certified
Mounting: Structural base
Finish: Industrial gray
Enclosure: Type 1 (Series 1)
ADDITIONAL INFORMATION
Condition: Used - Reconditioned
Manufacturer: Square D (Schneider Electric)
Catalog Number: C150T68HFISCUZZNLPXSPCL
Model: CZTC0150 S000008
Capacity: 150 kVA
Configuration: Three-Phase Dry Type Transformer
Weight: 976 kg (2,152 lbs)
Primary Voltage: 480 VAC, 3-Phase, H1-H2-H3 winding
Secondary Voltage 1: 208/120 VAC, 3-Phase, X1-X2-X3 winding, 60 Hz
Secondary Voltage 2: 208/120 VAC, 3-Phase, Y1-Y2-Y3 winding, 60 Hz
Tap Positions: Five taps available - 504V, 492V, 480V (standard), 468V, 456V
Insulation Class: 220
Temperature Rating: 135°C temperature rise at 135°C ambient elevation temperature
Impedance Ratings:
H-X,Y: 3.8% at 150 kVA 135°C
H-X: 2.8% at 75 kVA 135°C
H-Y: 2.0% at 75 kVA 135°C
Connectors: CU-AL (Copper/Aluminum compatible)
Enclosure: Type 1 (Boitier/Enclos. Série 1)
Serial Number: Z1C-0004-29874
Asset Identification: T-10913
Features:
Dry type transformer design
Dual independent secondary windings
Five-position voltage tap adjustment
Split secondary voltage capability (208/120V on both secondaries)
Type 1 enclosure
Class 220 high-temperature insulation system
Copper/aluminum connection compatibility
CSA LR 53763 certified construction
Natural convection cooling
Maintenance-free operation
Multiple impedance ratings for flexible loading
Suitable for indoor installation
Ideal for commercial and industrial loads
Load balancing capability with dual secondaries
Enhanced system redundancy
* Manufacturer: Square D (Schneider Electric)
* Catalog Number: C150T68HFISCUZZNLPXSPCL
* Model Number: CZTC0150 S000008
* Capacity: 150 kVA
