USED 2020 DAIKIN DPS012AHHE2DW-4 & DPS015AHHE2DW-6

Overview

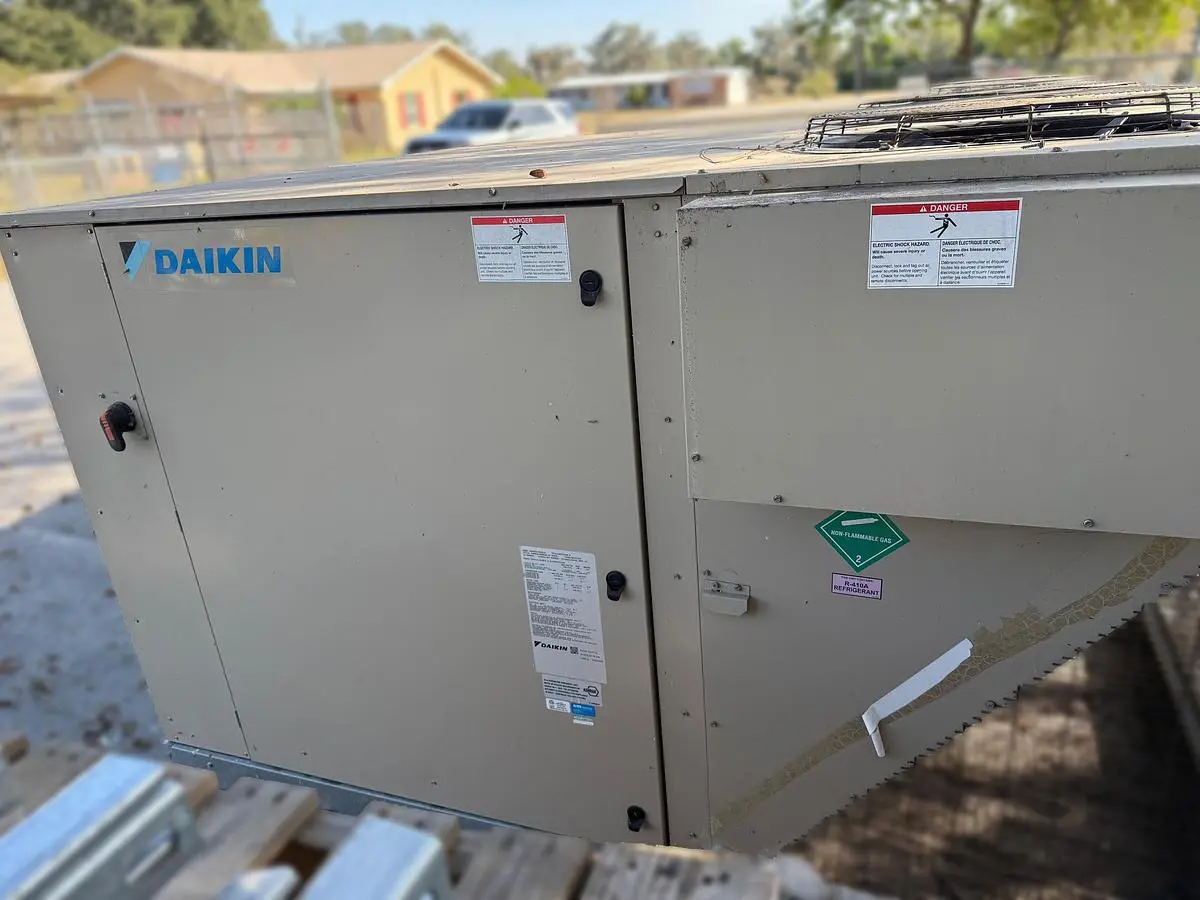

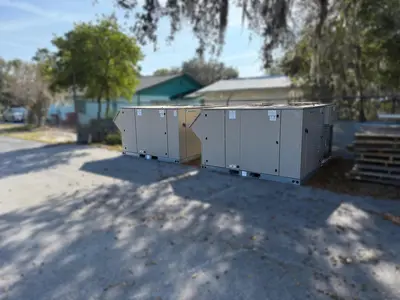

Matched pair of Daikin packaged rooftop HVAC units removed from the same facility. These commercial-grade air conditioning systems feature R410A refrigerant, 208V 3-phase power, electric heat, and ASHRAE 90.1-2016 compliance. Both units manufactured in 2020 and assembled in USA. Model DPS012AHHE2DW-4 delivers 10 tons cooling with 18 kW electric heat, while Model DPS015AHHE2DW-6 provides 12.5 tons cooling with 18 kW electric heat. Ideal for commercial buildings, offices, light industrial facilities, retail spaces, or multi-zone applications requiring reliable climate control.

Unit #1: DPS012AHHE2DW-4 (10 Ton)

Equipment Specifications

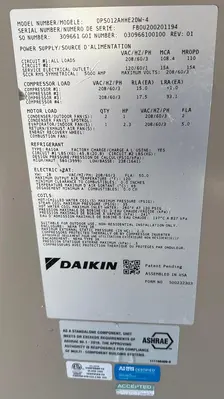

Model Number: DPS012AHHE2DW-4

Serial Number: FB0U200201194

SO Number: 309661

GOI Number: 030966100100 REV: 01

Form Number: 500232303

Year Built: 2020

Manufacturer: Daikin

Country of Origin: Assembled in USA

Certification: ASHRAE 90.1-2016 compliant

Additional Certifications: ETL Listed to UL STD 1995, Certified to CAN/CSA STD C22.2 NO. 236, AHRI Certified

Performance Data

Cooling Capacity: 10 Tons (120,000 BTU/HR nominal)

Electric Heat: 18 kW (50.0 FLA)

Refrigerant Type: R410A

Factory Charge: YES

Design Pressure: HIGH/HAUT: 580 (3995) LOW/BASSE: 238 (1641) PSIG/kPa

Maximum Output Air Temperature: 120°F

Minimum Clearance to Combustibles: 0.0 inches

Temperature Maximum D'Air Sortant: 49°C

Degagement Minimum A' Combustibles: 0.0 CM

Electrical Specifications

Power Supply: 208/60/3 VAC/Hz/PH

Circuit #1 (All Loads): 108.4 MCA, 110 MROPD

Circuit #2: 125 MROPD

Service Electrical Outlet: 120/60/1, 15A Maximum, 15A Max Volts

SCCR RMS Symmetrical: 5000 AMP Maximum Volts: 208/60/3

Compressor Specifications

Compressor #1: 208/60/3 VAC/Hz/PH, 15.0 RLA(EA), <1.0 LRA(EA)

Compressor #3: 208/60/3 VAC/Hz/PH, 17.5 RLA(EA), 93.1 LRA(EA)

Motor Specifications

Condenser/Outdoor Fan(s): Quantity: 2, 1 HP, 208/60/3 VAC/Hz/PH, 2 FLA

Evaporator/Indoor Fan(s): Quantity: 1, 2.3 HP, 208/60/3 VAC/Hz/PH, 5.0 FLA

Coil Specifications

Hot/Chilled Water Coil(s) Maximum Pressure: PSIG

Steam Coil Maximum Pressure: 35 PSIG

Hot Water Coil Maximum Inlet Water: 280°F at 120 PSIG

Pression Maximale De Bobine A Vapeur: kPa: 241

Pression Maximale De Bobine D'Eau Chaude/Froide: kPa: 137°C A 827 kPa

Eau D'Admission Maximale De Bobine D'Eau Chaude: kPa

Physical Specifications

Enclosure Type: NEMA Type 3R (outdoor use, non-residential)

Maximum External Static Pressure: 2.0 in WC

Configuration: Packaged rooftop unit

Mounting: Factory curb-mounted design

Cabinet Finish: Beige/tan powder-coated steel

Suitable For: Outdoor use, non-residential installation only

Refrigeration Features

Compressor Protection: Thermal and overcurrent protected by compressor or inverter

Refrigerant: R410A (non-flammable gas)

Factory Charged: Yes

Appropriate Only For: Outdoor use, exterior non-residential use

Unit #2: DPS015AHHE2DW-6 (12.5 Ton)

Equipment Specifications

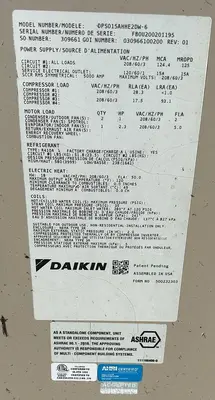

Model Number: DPS015AHHE2DW-6

Serial Number: FB0U200201195

SO Number: 309661

GOI Number: 030966100200 REV: 01

Form Number: 500232303

Year Built: 2020

Manufacturer: Daikin

Country of Origin: Assembled in USA

Certification: ASHRAE 90.1-2016 compliant

Additional Certifications: ETL Listed to UL STD 1995, Certified to CAN/CSA STD C22.2 NO. 236, AHRI Certified

Performance Data

Cooling Capacity: 12.5 Tons (150,000 BTU/HR nominal)

Electric Heat: 18 kW (50.0 FLA)

Refrigerant Type: R410A

Factory Charge: YES

Design Pressure: HIGH/HAUT: 580 (3995) LOW/BASSE: 238 (1641) PSIG/kPa

Maximum Output Air Temperature: 120°F

Minimum Clearance to Combustibles: 0.0 inches

Temperature Maximum D'Air Sortant: 49°C

Degagement Minimum A' Combustibles: 0.0 CM

Electrical Specifications

Power Supply: 208/60/3 VAC/Hz/PH

Circuit #1 (All Loads): 124.4 MCA, 125 MROPD

Circuit #2: (Not specified)

Service Electrical Outlet: 120/60/1, 15A Maximum, 15A Max Volts

SCCR RMS Symmetrical: 5000 AMP Maximum Volts: 208/60/3

Compressor Specifications

Compressor #1: 208/60/3 VAC/Hz/PH, 28.3 RLA(EA), <1.0 LRA(EA)

Compressor #3: 208/60/3 VAC/Hz/PH, 17.5 RLA(EA), 93.1 LRA(EA)

Motor Specifications

Condenser/Outdoor Fan(s): Quantity: 2, 1 HP, 208/60/3 VAC/Hz/PH, 2 FLA

Evaporator/Indoor Fan(s): Quantity: 1, 2.3 HP, 208/60/3 VAC/Hz/PH, 5.0 FLA

Coil Specifications

Hot/Chilled Water Coil(s) Maximum Pressure: PSIG

Steam Coil Maximum Pressure: 35 PSIG

Hot Water Coil Maximum Inlet Water: 280°F at 120 PSIG

Pression Maximale De Bobine A Vapeur: kPa: 241

Pression Maximale De Bobine D'Eau Chaude/Froide: kPa: 137°C A 827 kPa

Eau D'Admission Maximale De Bobine D'Eau Chaude: kPa

Physical Specifications

Enclosure Type: NEMA Type 3R (outdoor use, non-residential)

Maximum External Static Pressure: 2.0 in WC

Configuration: Packaged rooftop unit

Mounting: Factory curb-mounted design

Cabinet Finish: Beige/tan powder-coated steel

Suitable For: Outdoor use, non-residential installation only

Refrigeration Features

Compressor Protection: Thermal and overcurrent protected by compressor or inverter

Refrigerant: R410A (non-flammable gas)

Factory Charged: Yes

Appropriate Only For: Outdoor use, exterior non-residential use

System Overview

Why Buy as a Matched Pair?

Matching serial numbers (FB0U200201194 & FB0U200201195) indicate same production run
Same 309661 SO number confirms factory coordination
Both manufactured in 2020 from same facility
Identical electrical requirements (208V 3-phase)
Same mounting specifications and curb requirements
Matching control voltages and accessories
Unified parts inventory and service procedures
Consistent performance characteristics
Single-source documentation package

Combined System Capacity

Total Cooling: 22.5 Tons (270,000 BTU/HR)

Total Electric Heat: 36 kW

Total Connected Load: Approximately 232.8 MCA combined

Power Requirements: 208V, 3-Phase, 60Hz for both units

Refrigerant: R410A (both units factory charged)

Key Specifications Summary

Unit #1 (10 Ton) Quick Reference

Model: DPS012AHHE2DW-4

Serial: FB0U200201194

Year: 2020

Cooling: 10 Tons

Heat: 18 kW Electric

Power: 208/60/3, 108.4 MCA, 110 MROPD

Refrigerant: R410A (factory charged)

Compressors: 15.0 RLA + 17.5 RLA

Fans: (2) 1 HP condenser, (1) 2.3 HP evaporator

Unit #2 (12.5 Ton) Quick Reference

Model: DPS015AHHE2DW-6

Serial: FB0U200201195

Year: 2020

Cooling: 12.5 Tons

Heat: 18 kW Electric

Power: 208/60/3, 124.4 MCA, 125 MROPD

Refrigerant: R410A (factory charged)

Compressors: 28.3 RLA + 17.5 RLA

Fans: (2) 1 HP condenser, (1) 2.3 HP evaporator

Combined System

Total Capacity: 22.5 Tons cooling + 36 kW heat

Total Estimated Weight: 2,000-3,000 lbs (both units)

Power Required: 208V 3-Phase 60Hz

Combined MCA: 232.8 Amps minimum

Refrigerant Type: R410A (both factory charged)

Certification: ASHRAE 90.1-2016, AHRI Certified

Ideal Applications

Commercial Buildings

Office buildings and business parks
Retail stores and shopping centers
Medical offices and clinics
Professional service facilities
Bank branches and credit unions
Government buildings
Educational facilities

Light Industrial

Warehouse offices
Manufacturing administrative areas
Distribution center offices
Light assembly facilities
Technology and data centers
Research facilities

Multi-Tenant Applications

Strip malls and commercial plazas
Multi-office complexes
Mixed-use developments
Business incubators
Co-working spaces

Institutional Facilities

Schools and daycare centers
Community centers
Religious facilities
Libraries and learning centers
Healthcare clinics

Hospitality & Service

Restaurants and bars
Fitness centers and gyms
Salons and spas
Auto dealership showrooms
Service centers

System Benefits

Matched Pair Advantages

Factory-coordinated equipment from same production run
Identical installation requirements and procedures
Simplified parts inventory and maintenance
Consistent performance characteristics
Unified control and monitoring systems
Single-source technical documentation
Matching warranty and service history
Bundle pricing vs. separate purchase
Simplified contractor bidding and installation

Daikin Quality Features

2020 USA assembly with quality components
ASHRAE 90.1-2016 energy efficiency compliance
AHRI certified performance ratings
R410A environmentally-preferred refrigerant
Factory charged and leak tested
ETL and CSA safety certifications
Proven Daikin commercial reliability
Professional-grade construction
Weather-resistant NEMA 3R enclosures

Operational Benefits

Electric heat eliminates gas piping requirements
Packaged design simplifies installation
Rooftop mounting saves valuable floor space
208V 3-phase common commercial voltage
Dual compressors for staging and redundancy
Energy recovery wheels (if equipped)
Return/exhaust air fan capability
2.0" external static capability for ductwork

Additional Information

Condition: Used - 2020 Manufacture

Manufacturer: Daikin

Country of Origin: Assembled in USA

Models: DPS012AHHE2DW-4 (10 Ton) & DPS015AHHE2DW-6 (12.5 Ton)

Serial Numbers: FB0U200201194 & FB0U200201195

Year Built: 2020

Total Cooling Capacity: 22.5 Tons (270,000 BTU/HR combined)

Total Electric Heat: 36 kW (combined)

Power Requirements: 208V, 3-Phase, 60Hz

Refrigerant: R410A (factory charged both units)

Certification: ASHRAE 90.1-2016, AHRI Certified, ETL Listed

Estimated Weight: 2,000-3,000 lbs (both units combined)
