Overview
This listing includes two pad-mounted transformers manufactured in July 2014, both configured for 4160V primary to 480Y/277V secondary voltage. The package includes one MEC 3 MVA transformer and one Sunbelt Transformer Ltd. 1500 KVA transformer, both with West Coast Switchgear pad-mounted enclosures with integrated disconnect switches. Both complete systems are mounted on concrete pads and feature oil-filled construction with radiator cooling fins for outdoor installation.
Design and Performance
Transformer #1 - MEC CTM-8:

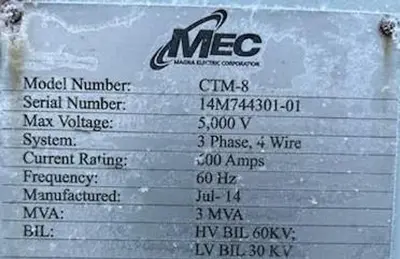

Manufacturer: MEC (Magnetek Electric Corporation)
Model: CTM-8
Serial Number: 14M744301-01
Manufacturing Date: July 2014 (Jul-14)
Capacity: 3 MVA
Primary Voltage: 4160V
Secondary Voltage: 480Y/277V
System: 3-Phase, 4-Wire
Frequency: 60 Hz
Current Rating: 600 Amps
Maximum Voltage: 5,000V
High Voltage BIL: 60 KV
Low Voltage BIL: 30 KV
Transformer #2 - Sunbelt:

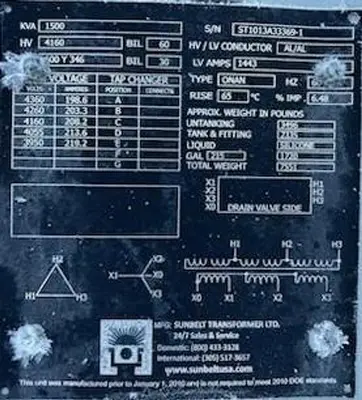

Manufacturer: Sunbelt Transformer Ltd.
Capacity: 1500 KVA
Primary Voltage: 4160V
Secondary Voltage: 480Y/277V
System: 3-Phase, 4-Wire
Frequency: 60 Hz
Manufacturing Date: 2014
Switchgear Specifications:
Manufacturer: West Coast Switchgear Inc.
Location: Cerritos, CA 90703
Address: 13837 Bettencourt St.
Construction:

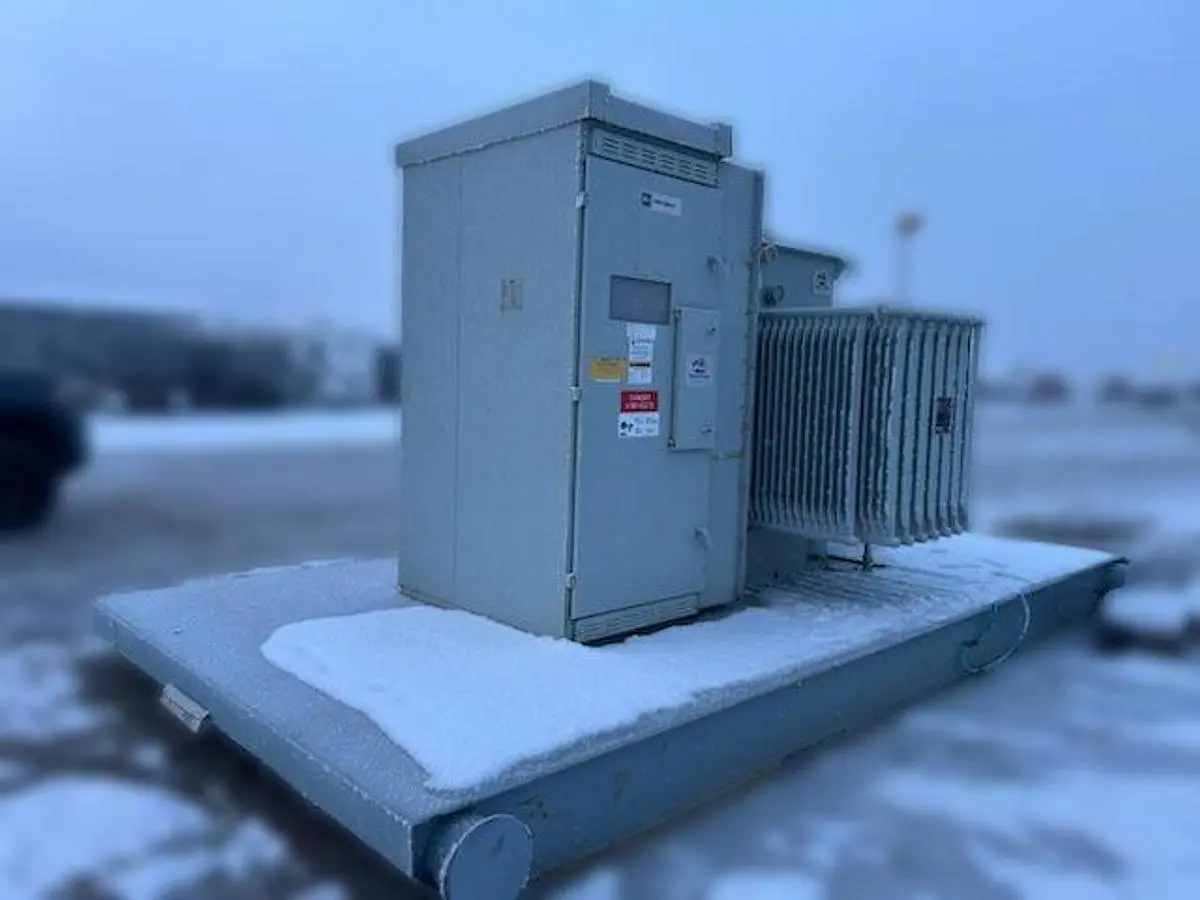

Type: Pad-mounted oil-filled transformers
Enclosure: Gray steel weatherproof cabinets
Cooling: Radiator fins with oil cooling
Primary Compartment: High voltage section with disconnect
Secondary Compartment: Low voltage section
Mounting: Concrete pad bases
Finish: Gray painted steel
System Components (Both Units):
Oil-filled transformer cores
West Coast Switchgear enclosures
Primary disconnect switches
Secondary disconnect switches
Radiator cooling fins
Oil-filled tanks
Concrete mounting pads
High voltage bushings
Low voltage terminals
Ground connections
Lockable access doors
Safety Features:
Cutler-Hammer components
Hazard Category 4 warning labels
4160 Volts danger signage
Lockable compartments
Arc flash protection rated
Ground fault protection
Weatherproof NEMA enclosures
Key Specifications
Condition: Used - 2014 Manufacture
Quantity: 2 Transformers
Equipment Type: Pad-Mounted Distribution Transformers
Transformer #1 - MEC CTM-8:
Brand: MEC (Magnetek Electric Corporation)
Model: CTM-8
Serial Number: 14M744301-01
Capacity: 3 MVA (3,000 KVA)
Primary: 4160V
Secondary: 480Y/277V
Phase: 3-Phase, 4-Wire
Frequency: 60 Hz
Current Rating: 600 Amps
Max Voltage: 5,000V
HV BIL: 60 KV
LV BIL: 30 KV
Transformer #2 - Sunbelt:
Brand: Sunbelt Transformer Ltd.
Capacity: 1500 KVA
Primary: 4160V
Secondary: 480Y/277V
Phase: 3-Phase, 4-Wire
Frequency: 60 Hz
Physical Specifications:
Type: Pad-mounted oil-filled
Enclosure: NEMA rated steel cabinets
Color: Gray
Cooling: Radiator fins with oil
Mounting: Concrete pads
Switchgear: West Coast Switchgear Inc.
Ideal Applications
Industrial Facilities
Manufacturing Plants
Commercial Buildings
Data Centers
Distribution Substations
Shopping Centers
Office Complexes
Hospitals and Healthcare
Educational Institutions
Municipal Utilities
Water Treatment Plants
Wastewater Facilities
Large Retail Operations
Benefits
2014 manufacture (both units)
Two transformer package
Combined capacity: 4500 KVA total
3 MVA and 1500 KVA units
4160V to 480Y/277V transformation
3-phase power distribution
Oil-filled cooling systems
Radiator fin design
Pad-mounted configuration
Weatherproof enclosures
Integrated switchgear
Primary and secondary disconnects
Lockable compartments
Safety labeled
Ready for outdoor installation
Concrete pads included
Complete systems
Additional Information
Condition: Used - 2014 Manufacture
Quantity: 2 Pad-Mounted Transformers
Switchgear Manufacturer: West Coast Switchgear Inc., Cerritos, CA 90703
Manufacturing Date: July 2014
Transformer #1 Specifications:
Manufacturer: MEC (Magnetek Electric Corporation)
Model: CTM-8
Serial: 14M744301-01
Capacity: 3 MVA
Primary: 4160V
Secondary: 480Y/277V
Current: 600 Amps
Max Voltage: 5,000V
HV BIL: 60 KV / LV BIL: 30 KV
Transformer #2 Specifications:
Manufacturer: Sunbelt Transformer Ltd.
Capacity: 1500 KVA
Primary: 4160V
Secondary: 480Y/277V
3-Phase, 4-Wire, 60 Hz
Construction:
Type: Oil-filled pad-mounted transformers
Cooling: Radiator fins
Enclosure: NEMA rated weatherproof steel
Mounting: Concrete pad bases
Components: Cutler-Hammer switchgear
Safety:
Hazard Category 4 rated
4160 Volts danger signage
Lockable access compartments
Arc flash protection
* Manufacturer: MEC (Magnetek Electric Corporation), Sunbelt Transformer LTD
* Model: CTM-8
* Serial Number: 14M744301-01
* Manufacturing Date: July 2014 (Jul-14)
* Capacity: 3 MVA
* Primary Voltage: 4160V
* Quantity: 2 Transformers
