Overview

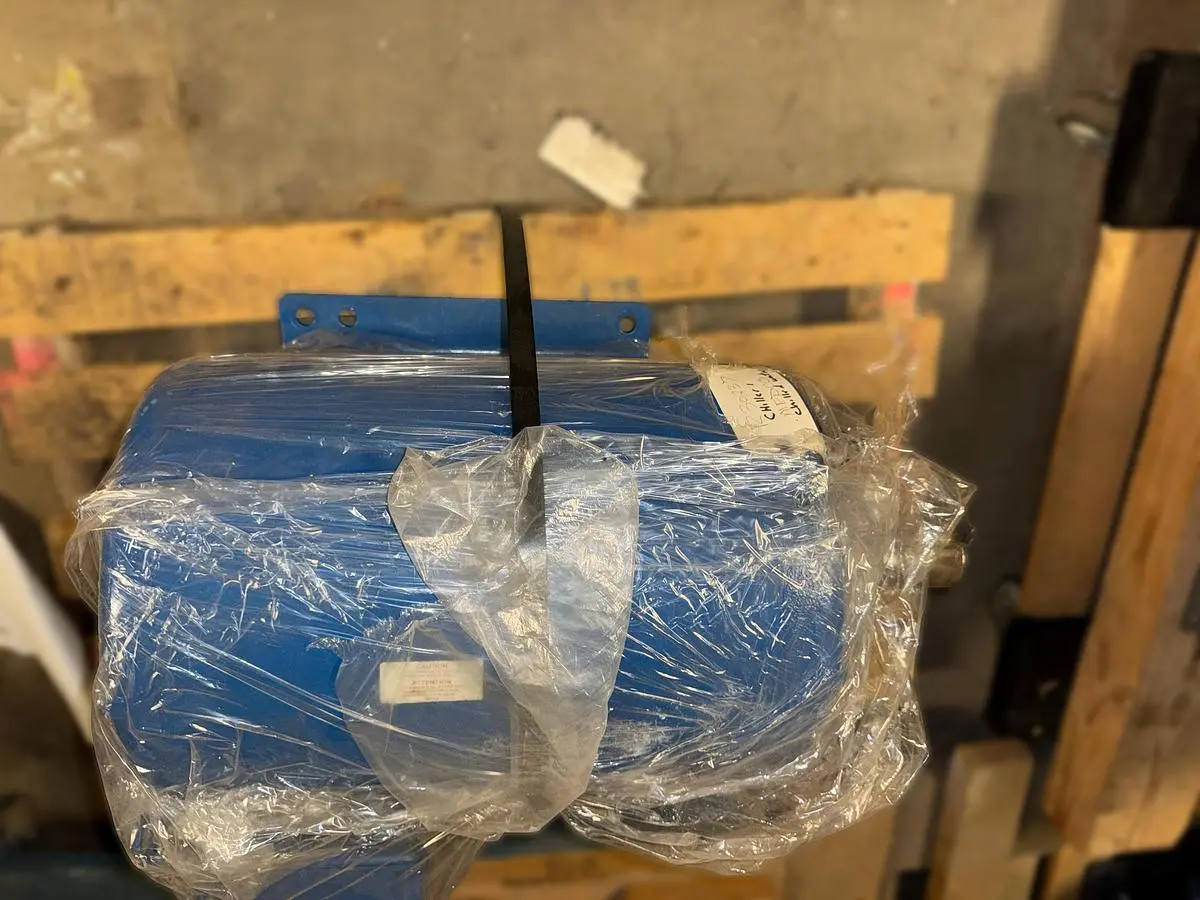

This Baldor industrial motor is a 40 horsepower three-phase electric motor manufactured by Baldor Electric Company in Fort Smith, Arkansas. Model H2539T with specification 40H005W275H1 and frame 324T, this motor operates at 1775 RPM and is rated for 230/460 volt dual voltage operation. The motor remains in protective plastic wrapping.
Design and Performance

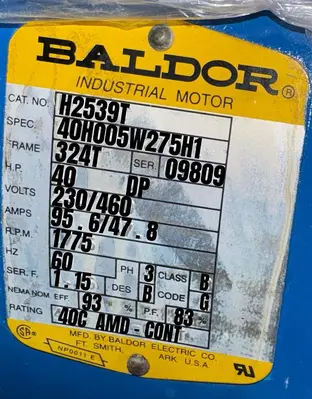

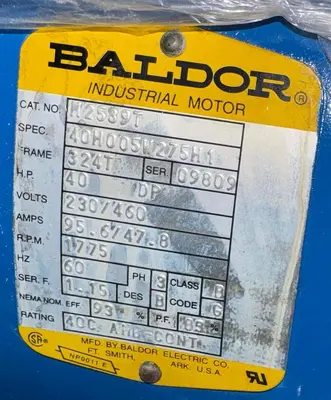

Model Specifications:
Catalog No.: H2539T
Specification: 40H005W275H1
Frame: 324T
Serial Number: 09809
Manufacturer: Baldor Electric Company
Made in: Fort Smith, Arkansas, USA
Performance Specifications:
Horsepower: 40 HP
Voltage: 230/460V
RPM: 1775
Frequency: 60 Hz
Amps: 95.6/47.8
Phase: 3
Service Factor: 1.15
Design: B
Class: B
Code: G
NEMA Nominal Efficiency: 93%
Power Factor: 83%
Rating: 40°C AMD - CONT
Construction:
Blue painted steel frame
Frame type: 324T
Foot mount configuration
Protective plastic wrapping
Electrical Specifications:
Voltage: 230/460V (3-phase)
Full Load Amps: 95.6A at 230V / 47.8A at 460V
Frequency: 60 Hz
Phase: 3
Service Factor: 1.15
Design Code: B
Insulation Class: B
NEMA Code: G
Performance Data:
Speed: 1775 RPM
NEMA Nominal Efficiency: 93%
Power Factor: 83%
Duty Rating: 40°C AMD - CONT
Safety & Certifications:
UL Listed
CSA Certified
Key Specifications
Condition: Protective Wrapping
Brand: Baldor
Model: H2539T
Specification: 40H005W275H1
Serial Number: 09809
Equipment Type: Three-Phase Industrial Electric Motor
Performance Data:
Horsepower: 40 HP
Speed: 1775 RPM
Voltage: 230/460V
Frequency: 60 Hz
Phase: 3-Phase
Full Load Amps: 95.6A @ 230V / 47.8A @ 460V
Physical Specifications:
Frame Size: 324T
Finish: Blue painted steel
Mounting: Foot mounted
Electrical Ratings:
Service Factor: 1.15
NEMA Efficiency: 93%
Power Factor: 83%
Insulation Class: B
Design Code: B
NEMA Code: G
Rating: 40°C AMD - CONT
Ideal Applications
Pumps and Compressors
Conveyors and Material Handling
Machine Tools
Fans and Blowers
Industrial Processing Equipment
Manufacturing Machinery
HVAC Systems
Food Processing Equipment
Packaging Machinery
Woodworking Equipment
Metal Working Machines
General Industrial Applications
Benefits
Baldor manufacturing
40 HP power
Dual voltage (230/460V)
93% NEMA nominal efficiency
1.15 service factor
Class B insulation
Continuous duty rated
UL and CSA certified
Made in USA
Protective wrapping
Additional Information
Condition: In Protective Wrapping
Manufacturer: Baldor Electric Company
Made In: Fort Smith, Arkansas, USA
Catalog No.: H2539T
Specification: 40H005W275H1
Serial Number: 09809
Frame: 324T
Horsepower: 40 HP
Speed: 1775 RPM
Voltage: 230/460V
Frequency: 60 Hz
Phase: 3-Phase
Full Load Amps: 95.6A @ 230V / 47.8A @ 460V
Service Factor: 1.15
NEMA Efficiency: 93%
Power Factor: 83%
Insulation Class: B
Design Code: B
NEMA Code: G
Duty Rating: 40°C AMD - CONT
Finish: Blue painted steel
Certifications: UL Listed, CSA Certified
* Brand: Baldor
* Model: H2539T
* Frame: 324T
* Serial Number: 09809
* Horsepower: 40 HP
* RPM: 1775
* Voltage: 230/460V
* Equipment Type: Three-Phase Industrial Electric Motor
