CST Storage Industrial Silo System 4-Tank 16,560 Cu Ft Total Capacity 2021

Overview

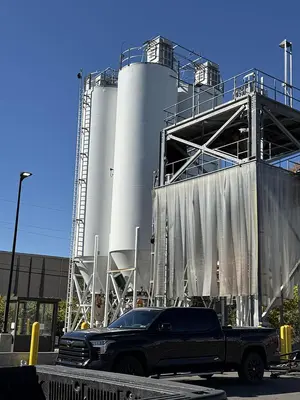

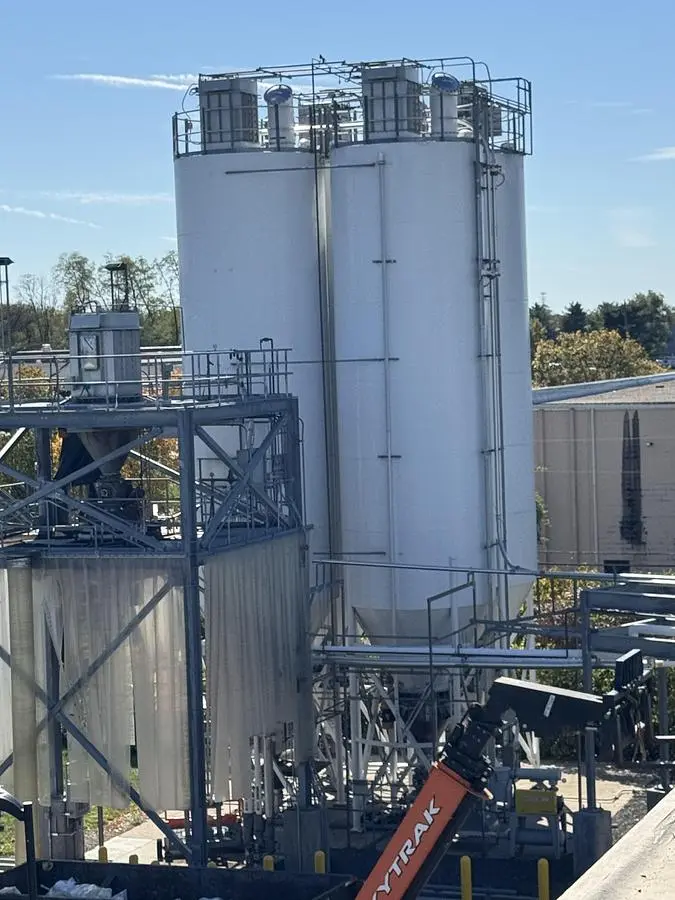

This CST Storage industrial silo system consists of four vertical storage tanks manufactured in August 2021. Each silo measures 11'-11" in diameter and stands 52'-7" tall, providing 4,140 cubic feet of nominal capacity. Designed for finished product storage with fluidized flow loads, these silos feature access ladders, top-mounted equipment, and cone-bottom discharge with support structures.

Design and Performance

Tank Specifications:

Date: 08/2021
Project I.D.: USP003777_005
S.O. #: 21-7766
Diameter: 11'-11"
Height: 52'-7"
Nominal Capacity: 4,140 Cu. Ft. (per tank)
Manufacturer: CST Storage

Design Data:

Product: Finished Product
Compacted Density: 30 PCF
Designed For: Fluidized Flow Loads
Max Operating Pressure: Do Not Exceed
Pressure: 8.09 oz/sq in
Vacuum: 1.01 oz/sq in

Construction:

Vertical cylindrical tanks
Cone-bottom design
External ladder access
Top-mounted equipment
Safety railings
Support leg structures
Corrugated panel sections visible
Discharge hopper support structures

System Components:

Four vertical storage silos
Access ladders with cages
Top-mounted equipment
Platforms and railings
Cone-bottom discharge hoppers
Support leg structures
Corrugated metal panels
Structural steel support framework

Safety Features:

Roof Concentrated Load: 500 lbs. per 10 sq. ft.
Ladder safety cages
Platform railings
Pressure and vacuum specifications
Warning labels

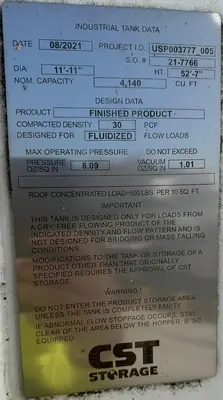

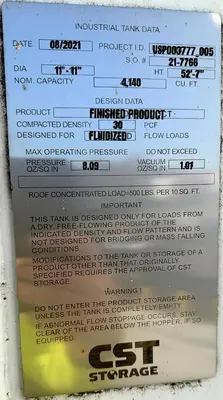

Important Design Limitations (per nameplate):

Tank designed only for loads from dry, free-flowing product of indicated density and flow pattern
Not designed for bridging or mass falling conditions
Modifications to tank or storage of products other than originally specified requires CST Storage approval
Do not enter product storage area unless tank is completely empty
If abnormal flow stoppage occurs, stay clear of area below hopper

Key Specifications

Condition: Used - 2021 Build
Brand: CST Storage
Date Built: 08/2021
Equipment Type: Industrial Vertical Storage Silos
Quantity: 4 Silos
Diameter: 11'-11"
Height: 52'-7"
Nominal Capacity: 4,140 Cu. Ft. per tank
Total System Capacity: 16,560 Cu. Ft.

Design Specifications:

Product Type: Finished Product
Compacted Density: 30 PCF
Flow Type: Fluidized Flow Loads
Maximum Pressure: 8.09 oz/sq in
Maximum Vacuum: 1.01 oz/sq in
Roof Load Rating: 500 lbs. per 10 sq. ft.

Physical Specifications:

Tank Configuration: Vertical cylindrical with cone bottom
Access: Ladder with safety cage
Top Equipment: Mounted equipment visible
Bottom Discharge: Cone hopper with support legs
Safety Features: Railings, platforms, warning labels

Ideal Applications

Cement and Concrete Plants
Aggregate and Sand Storage
Food Processing Facilities
Grain and Feed Mills
Plastic Pellet Storage
Chemical Powder Storage
Pharmaceutical Manufacturing
Industrial Mineral Storage
Construction Material Storage
Manufacturing Facilities
Batch Plant Operations
Dry Bulk Material Handling

Benefits

2021 manufacture
Four-tank silo system
16,560 total cubic feet capacity
Fluidized flow design
Complete access systems
Cone-bottom discharge
Safety-compliant design
Heavy-duty construction
Professional installation ready

Additional Information

Condition: Used - 2021 Manufacture
Manufacturer: CST Storage
Date Built: 08/2021
Project I.D.: USP003777_005
S.O. Number: 21-7766
Quantity: 4 Silos
Diameter: 11'-11"
Height: 52'-7"
Capacity Per Tank: 4,140 Cu. Ft.
Total System Capacity: 16,560 Cu. Ft.
Product Design: Finished Product
Density: 30 PCF
Flow Type: Fluidized Flow Loads
Max Pressure: 8.09 oz/sq in
Max Vacuum: 1.01 oz/sq in
Roof Load Rating: 500 lbs. per 10 sq. ft.
Configuration: Vertical with cone-bottom discharge
