USED 2021 CLEAVER BROOKS SD-45-1105/1200-2X2G

Manufacturer: Cleaver-Brooks of Canada Limited (Stratford, Ontario)

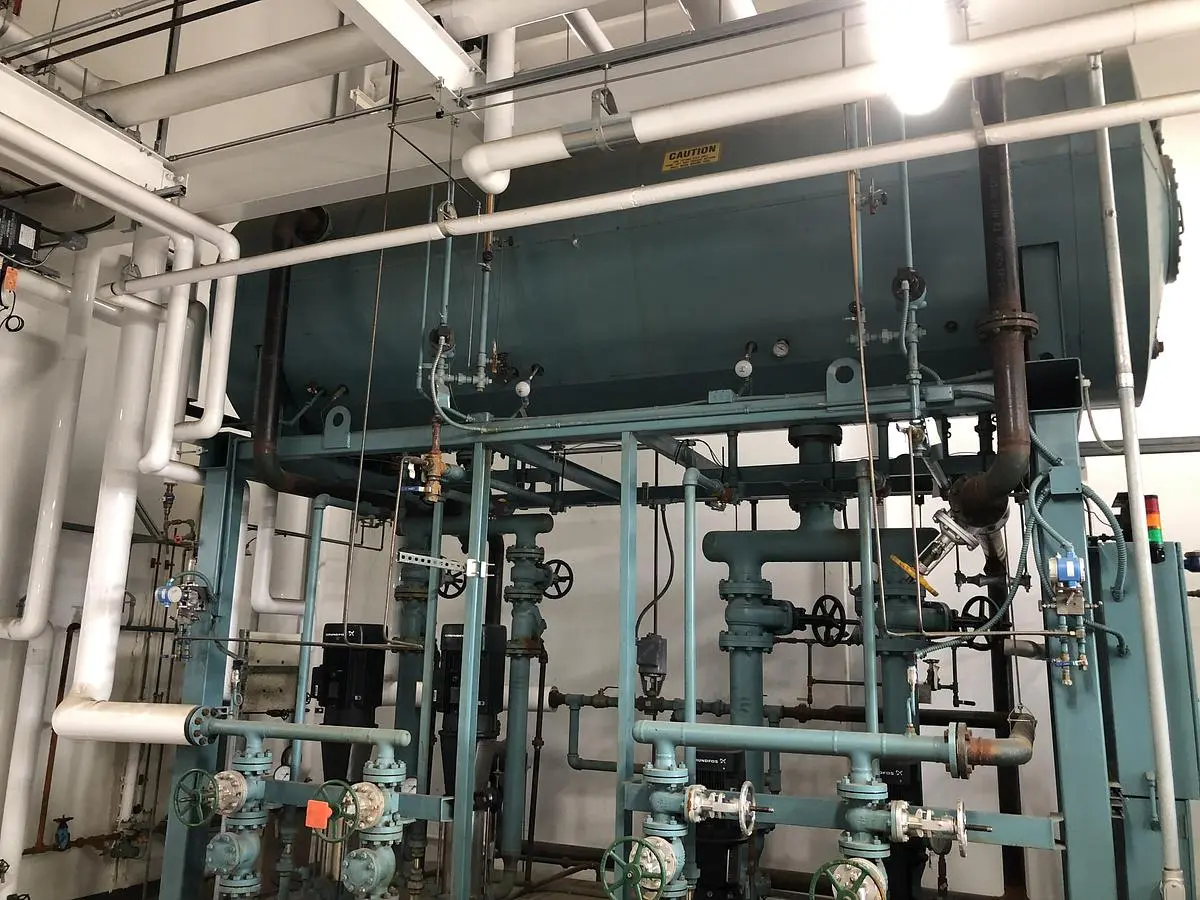

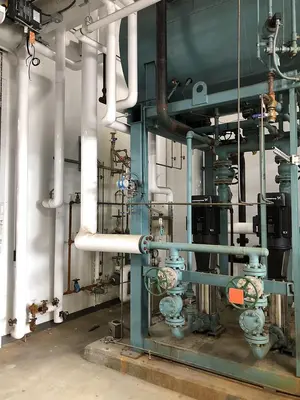

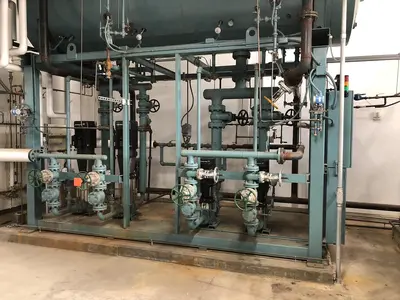

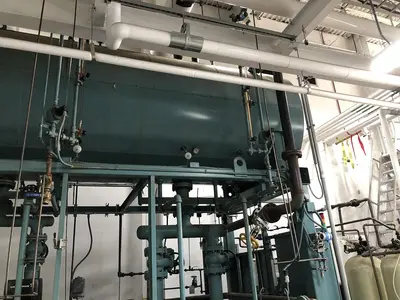

Equipment: SPRAYMASTER DEAERATOR

Model: SD-45-1105/1200-2X2G

Serial No.: T7946-1

Capacity: 45,000 lbs/hr

Date Shipped: Jan/2001

Top plate doc/code: 118-02063

Electrical Requirements (lower plate):

Main Power Supply: 120 V, 1-phase, 60 Hz, 10 A

Short-circuit current rating: (boxes blank on the tag)

Largest motor – HP / FLA: (blank)

Largest motor control circuit (V / PH / Hz): (blank)

Enclosure type: 4/12

Wiring diagram: 118-1874

Capacity: Your tag shows 45,000 lb/hr — that’s the maximum feedwater throughput it can deaerate.
Removes gases: By heating the incoming makeup/condensate to (about) saturation temperature with steam, it drives off dissolved O₂ to low ppb levels and CO₂ from bicarbonates.

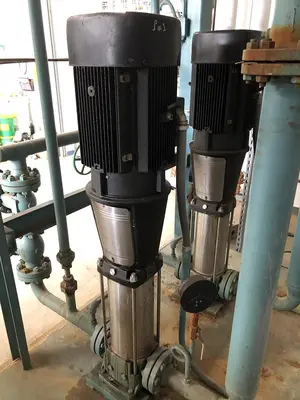

Provides hot storage: Deaerated water falls into the storage section so the boiler feed pumps have steady, hot water with good NPSH.
Vents for non-condensables: A small continuous vent allows the released gases to escape (never cap this).

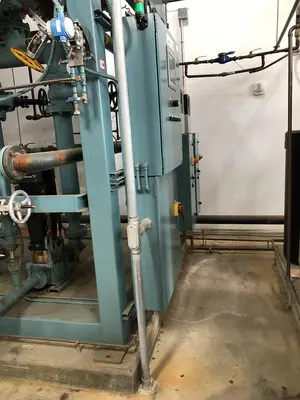

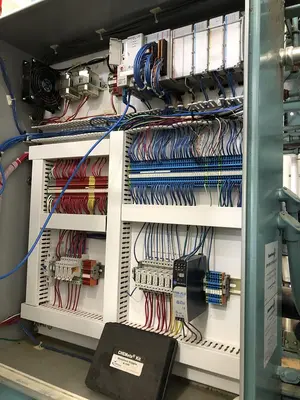

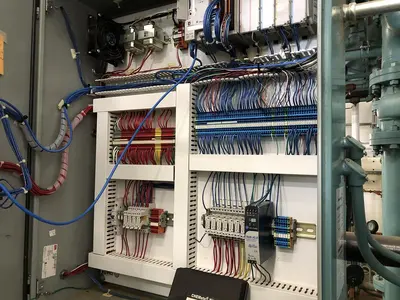

Controls & power: The control panel/valves/level instruments run on 120 V, 1-phase, 60 Hz (per the lower tag).
