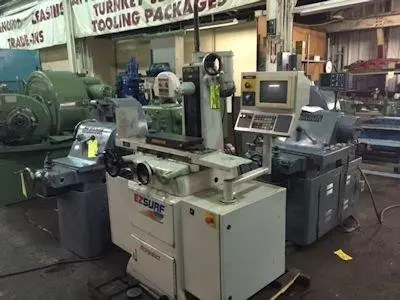

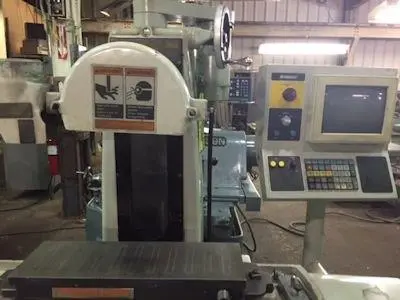

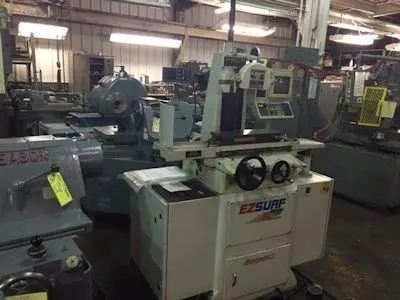

6" X 18" BRIDGEPORT "EZ SURF" SURFACE GRINDER
| Power | 1.5 hp | 1.1 kW |
| Grinding Wheel Width | 0" | 0 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Control | CNC (Bridgeport) | CNC (Bridgeport) |
| Dimensions | 70" x 65" | 70" x 65" |
| Weight | 2,250# | 2,250# |
Specifications:
Capacity: 6" x 18"
Longitudinal Table Travel: 20"
Max. Crossfeed Travel: 6.75"
Distance From Spindle Center to Table: 12"
Variable Speed: 3-70 FPM
Min. Feed Increment: 0.0001"
Rapid Traverse Rate: 100" IPM
Spindle Drive: 1.5 HP
Spindle Speed: 3450 RPM
Wheel Diameter: 8" x 1 1/4" x 1 1/4" Bore
Floor Space: 70" x 65"
Approx. Weight: 2,250 lbs
Bridgeport Control
6" x 18" Browne & Sharpe Magnetic Chuck
Variable Feed
Programmable Wheel Speed
Wheel Guard
Manuals
