USED 2006 ALFA LAVAL MX25-BFG

Overview

This used Alfa Laval MX25-BFG Plate & Frame Heat Exchanger offers an impressive 7,572 square feet of heat transfer surface area, making it ideal for large-scale industrial thermal management applications. Certified by Alfa Laval in Richmond, VA, and manufactured in 2006, this unit provides efficient heat transfer capabilities for demanding industrial processes with a maximum working pressure of 150 PSI at 300°F.

Design and Performance

Model: MX25-BFG

Heat Transfer Area: 7,572.00 sq ft

Frame Dimensions: 1474MM w/ 481 x 0.50MM plates

Maximum Working Pressure: 150 PSI at 300°F

Minimum Design Metal Temperature: -20°F at 150 PSI

Year Built: 2006

Serial Number: 30110-67351

Order Number: 643161

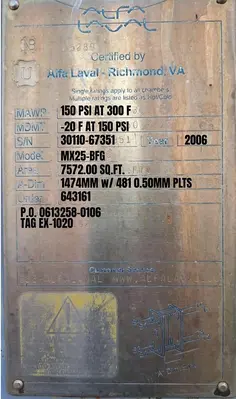

Certification: Alfa Laval - Richmond, VA

Key Specifications

Condition: Used - Industrial Grade

Manufacturer: Alfa Laval

Model: MX25-BFG

Serial Number: 30110-67351

Type: Plate & Frame Heat Exchanger

Total Surface Area: 7,572 sq ft

Number of Plates: 481 plates

Plate Thickness: 0.50MM

Frame Width: 1474MM (approximately 58 inches)

ASME/NB Certified: Yes (NB stamp visible)

Single/Multiple Ratings: Listed as Hot/Cold capable

Ideal Applications

Large Industrial Process Cooling/Heating
Chemical Processing Plants
Petroleum Refineries
Power Generation Facilities
District Heating/Cooling Systems
Large HVAC Systems
Food & Beverage Processing
Pharmaceutical Manufacturing
Pulp & Paper Mills
Marine Applications
Waste Heat Recovery Systems
Industrial Refrigeration

Benefits

Massive 7,572 sq ft heat transfer area for high-capacity applications
Plate & frame design allows for easy maintenance and cleaning
Expandable capacity by adding or removing plates
High efficiency heat transfer with minimal footprint
150 PSI pressure rating suitable for most industrial applications
Wide temperature range from -20°F to 300°F
ASME certified construction for safety and reliability
Proven Alfa Laval quality and engineering
Gaskets can be replaced without special tools
Counter-current flow for maximum thermal efficiency

Additional Information

Purchase Order: 0613258-0106

Tag Number: EX-1020

Certification Body: Alfa Laval - Richmond, VA

ASME Certification: NB stamped

Frame Material: Industrial grade construction

Plate Material: Typically stainless steel (verify specific material)

Temperature Range: -20°F to 300°F operating range

Pressure Rating: 150 PSI maximum working pressure

Maintenance: Plates can be removed for cleaning or replacement

Flexibility: Capacity can be modified by changing plate configuration
