USED 2007 PALMER 2-TK-2015

Overview

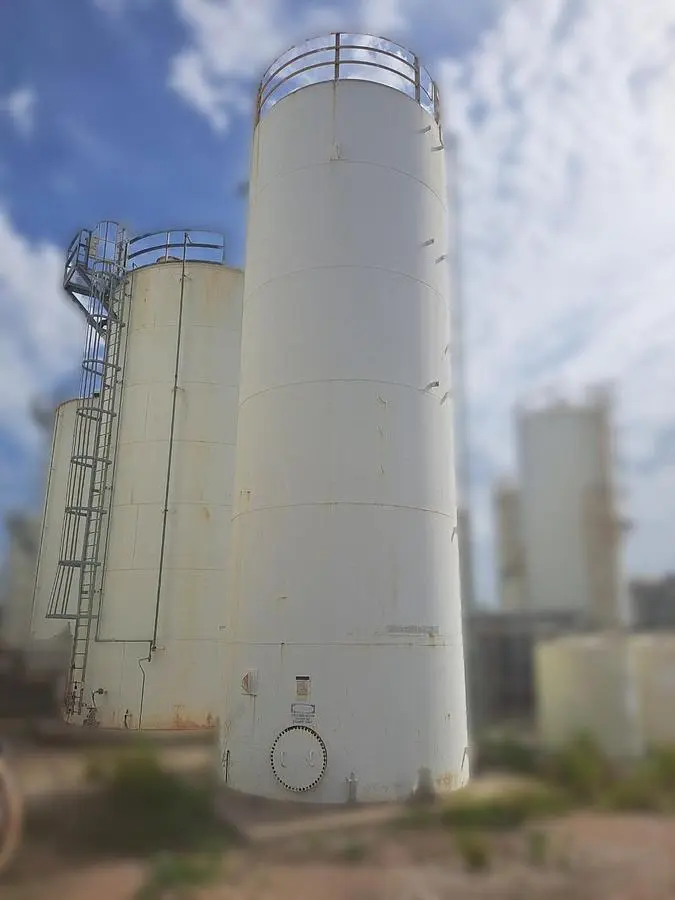

This used 30,000 Gallon Water Recovery Surge Tank manufactured by Palmer MFG & Tank Inc. is designed for industrial water recovery and surge capacity applications. Built in 2007, this atmospheric pressure tank provides substantial storage capacity for water/acid recovery systems with corrosion-resistant construction suitable for mildly acidic conditions.

Design and Performance

Tank Name: Water Recovery Surge Tank

Tank Tag Number: 2-TK-2015

Capacity: 30,000 Gallons

Diameter: 12'-0"

Height: 35'-0"

Year Built: 2007

Serial Number: 41761

Operating Temperature: 25-150°F

Design/Working Pressure: Atmospheric

Specific Gravity: 1.0

Key Specifications

Condition: Used - Industrial Grade

Manufacturer: Palmer MFG & Tank Inc. (Garden City, KS)

Material: SA-36 Carbon Steel

Shell Thickness: 1/4"

Top Thickness: 1/4"

Bottom Thickness: 5/16"

Contents: Water/Acid (1/16" Corrosion Allowance)

Customer: Gemma Power

Customer Reference: 0617258-0102

Construction Details

Shell Material: SA-36 Carbon Steel

Corrosion Allowance: 1/16" for acid service

Shell Plate Thickness: 1/4" (6.35mm)

Bottom Plate Thickness: 5/16" (7.94mm)

Top Plate Thickness: 1/4" (6.35mm)

Emergency Relief Venting: 587,000 cubic feet per hour minimum

Annular Space Venting: N/A cubic feet per hour

Ideal Applications

Industrial Water Recovery Systems
Process Water Surge Capacity
Wastewater Treatment Plants
Chemical Processing Facilities
Mining Operations Water Management
Industrial Cooling Water Systems
Plant Utility Water Storage
Emergency Water Supply
Process Water Buffer Storage
Acid Dilution Systems
Industrial Wash Water Recovery
Manufacturing Process Water Storage

Benefits

Large 30,000-gallon capacity for substantial surge protection
Corrosion allowance designed for mildly acidic water service
Atmospheric pressure design for simple operation
SA-36 carbon steel construction for durability
Thicker bottom plate (5/16") for extended service life
Emergency relief venting for safety compliance
Proven design from established tank manufacturer
Suitable for wide temperature range (25-150°F)
Standard dimensions allow for easy site planning

Additional Information

Manufacturer: Palmer MFG & Tank Inc.

Location: Box 1195, 2814 West Jones, Garden City, KS

Phone: 620-275-7461, 1-800-835-9136

Tank Type: Vertical Atmospheric Storage Tank

Service: Water Recovery with Acid Compatibility

Design Code: Atmospheric tank design

Inspection Requirements: Regular inspection recommended for corrosion monitoring

Maintenance: Periodic thickness testing recommended due to acid service

Foundation: Requires appropriate concrete pad for 30,000-gallon load
