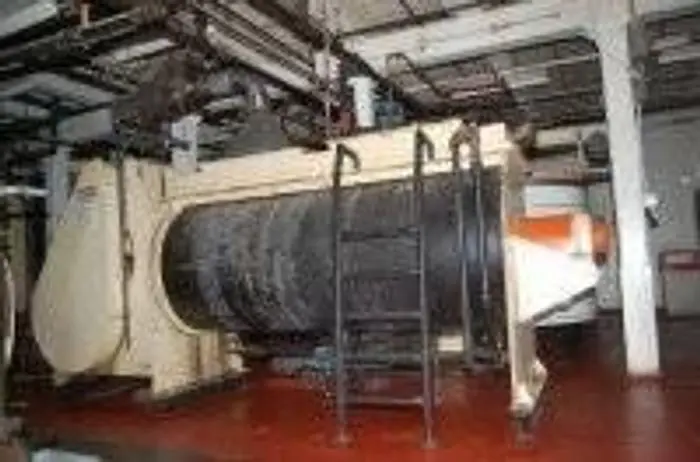

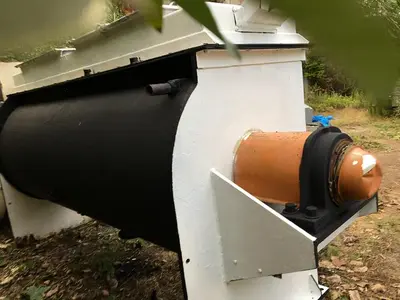

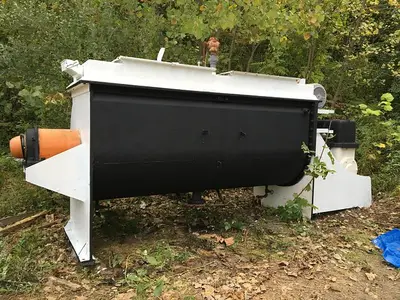

Steam Jacketed 500 Gallon Agitated Steel Tank

3/4" thick solid carbon steel, working used horizontal
jacketed sanitary process/hold tank

500 gl capacity with mixing paddles
rated for upto 5,000 lbs
belt driven with 40hp electric motor

3 phase
bradford axle gear

4″ discharge on bottom
steam injection capable jacket (probably 2″)

4x 2″ ports on bottom
2x 2″ port on top of each side

see picture for top ports, 1 main bottom discharge,

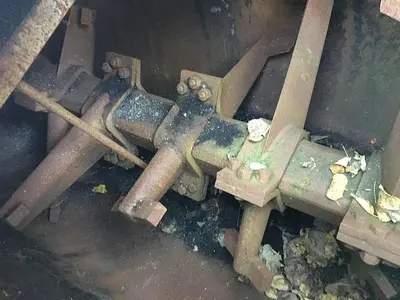

agitation axle gear/grease fittings on end

Exterior completely professionally painted,
fully treated and primed.

C392021-M609

...
