Overview

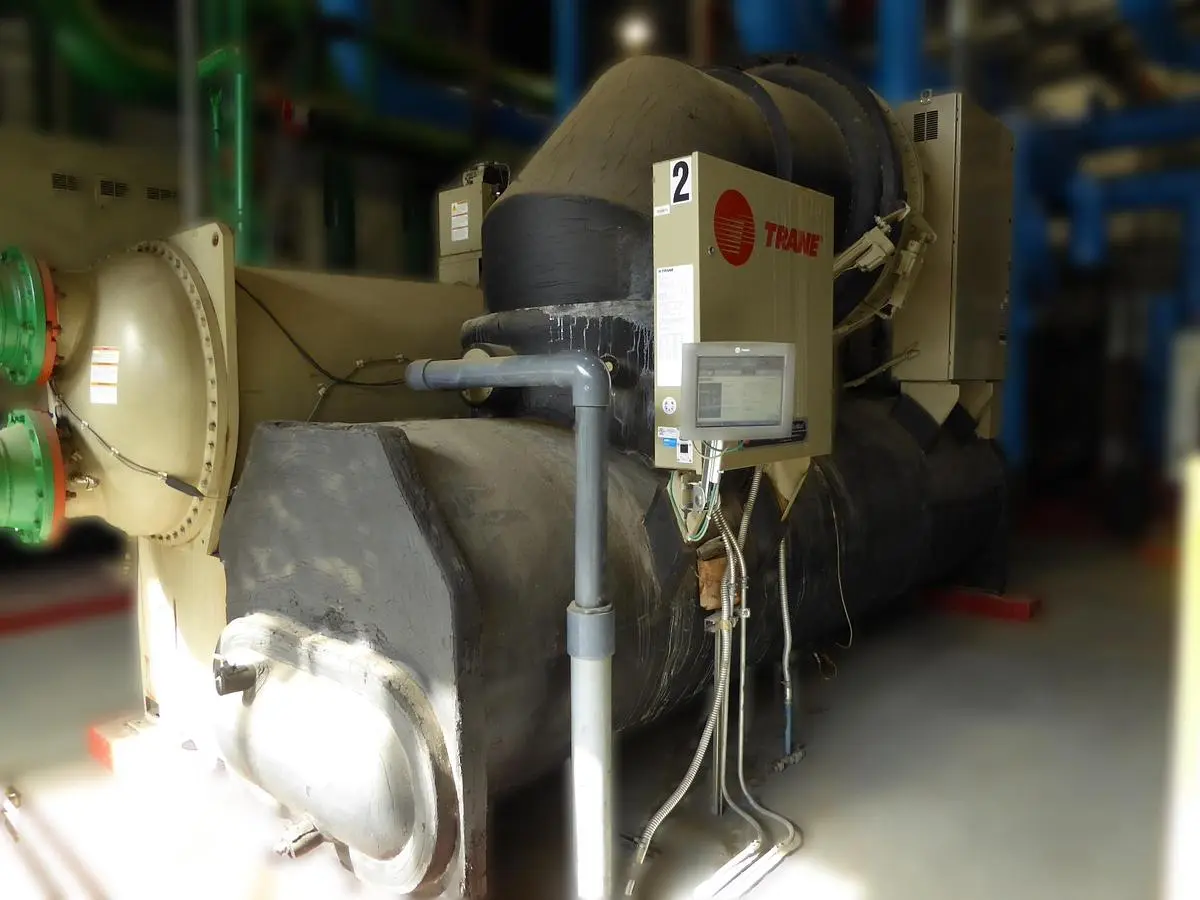

This Trane CenTraVac CVHF1300 Water-Cooled Centrifugal Chiller is designed for large-scale commercial and industrial cooling applications requiring reliable, high-capacity chilled water production. This unit delivers exceptional cooling performance with proven Trane centrifugal compressor technology and advanced control systems. Manufactured in 2011, this chiller provides efficient operation for facilities requiring substantial cooling capacity with environmentally responsible HCFC-123 refrigerant and modern digital controls.
Design and Performance
Cooling Capacity: 800 Tons (Nominal)
Model: CVHF1300
Serial Number: L13K03158
Voltage: 460 Volts
Electrical Characteristics: 3 Phase, 60Hz
Full Load Amps (FLA): 799 Amps

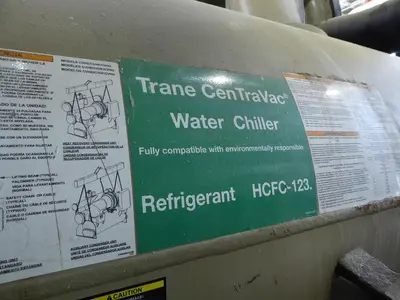

Refrigerant Type: HCFC-123 (Environmentally Responsible)
Control System: Trane Digital Touch Screen Interface
Compressor Type: Centrifugal
Minimum Circuit Ampacity: 1000 Amps
Maximum Overcurrent Protective Device: 1600 Amps
Running Hours: 36,614 Hours
Compressor Starts: 946
Operating Parameters
Evaporator Leaving Water Temperature: 56.3°F
Chiller Control Signal: 0.0% (Currently Stopped)
Average Motor Current (% RLA): 0.0%
Oil Differential Pressure: 0.00 PSID
Oil Pump Discharge Pressure: -5.1 PSIG
Oil Tank Pressure: -4.9 PSIG
Compressor Running Time: 36,614:21 Hr:Min
Current Status: Stopped (Available for Immediate Startup)
Key Specifications
Condition: Used - Operational
Manufacturer: Trane (Industry Leader in HVAC)
Chiller Type: Water-Cooled Centrifugal
Nominal Capacity: 800 Tons
Date of Manufacture: 15-06-11 (June 15, 2011)
Maximum Motor Current: 875 Amps
Control Circuit: 115V, 60Hz, 1 Phase
Oil Tank Heater: 115V
Carbon Tank Heater: 115/110V, 60/50Hz
Purge Compressor: 115/110V, 60/50Hz
Electrical Specifications
Main Power Requirements: 460V, 3 Phase, 60Hz
Full Load Amps: 799A
Maximum Amps: 875A
Control Power: 115V Single Phase
Motor Type: High-Efficiency Centrifugal Compressor Motor
Line Current: 414-506 VAC
Nameplate kW: 546 kW
Ideal Applications
Large Commercial Office Buildings
Hospital and Healthcare Facilities
Data Centers and Technology Parks
Industrial Process Cooling
District Cooling Plants
University Campus Cooling Systems
Manufacturing Facilities
Pharmaceutical Production
Convention Centers and Hotels
Airport Terminal Buildings
Benefits
High-capacity 800-ton rating for large-scale cooling applications
Environmentally responsible HCFC-123 refrigerant
Advanced digital control system with touch screen interface
Proven reliability with 36,614 operational hours
Variable capacity control for efficient part-load operation
Factory-tested and certified performance
Recent shutdown indicates well-maintained unit
Trane's industry-leading service and support network
Compact footprint relative to cooling capacity
Additional Information
Condition: Used - Fully Operational (Currently in Standby)
Current Location: Industrial Facility
Operating Hours: 36,614 Hours (Well-Maintained)
Refrigerant Charge: HCFC-123 (Full Charge)
Control Interface: Modern Touch Screen Display
Maintenance Status: Recently Serviced (Clean Shutdown)
Safety Features: Multiple pressure and temperature safeties
Certifications: ASHRAE 90.1 Compliant (2007 Add M)
