USED 2012 CARRIER 23XRV5568NRAA50-S

Overview

Available now is a Carrier 23XRV Series Water-Cooled Centrifugal Chiller, model 23XRV5556NRAA50-S, with high-efficiency, oil-free magnetic bearing technology. Manufactured in 2012, this chiller is an excellent fit for commercial HVAC systems requiring reliable, large-capacity cooling.

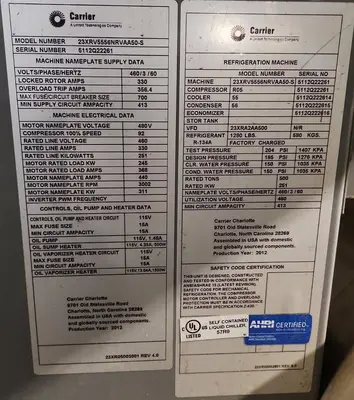

Technical Specifications

Model: 23XRV5556NRAA50-S

Serial Number: 5112022261

Capacity: 500 Tons

Refrigerant: R-134a (Factory Charge: 1280 lbs / 580 kg)

Voltage: 460V / 3 Phase / 60 Hz

Production Year: 2012

Electrical Details

Locked Rotor Amps: 330 A

Overload Trip Amps: 356.4 A

Max Fuse/Circuit Breaker Size: 700 A

Min Circuit Ampacity: 413 A

Motor Rated Load Amps: 265 A

Compressor 100% Speed: 480V

Rated Input Power: 350 kW

Refrigeration Data

Cooler Test Pressure: 204 PSIG

Condenser Test Pressure: 186 PSIG
Design Pressures:
Cooler: 186 PSIG (1276 kPa)
Condenser: 150 PSIG (1035 kPa)

VFD Model: 23XRA2A500

Compressor Type: R05
AHRI Certified
UL Listed: 57799

Heater & Pump Circuit Details

Controls, Oil Pump & Heater Circuit: 115V

Oil Pump: 115V, 1.48A

Oil Sump Heater: 115V, 4.35A, 500W

Oil Vaporizer Heater: 115V, 10.34A, 1500W

Features & Benefits

Oil-Free Magnetic Bearing Compressor – reduced maintenance and high energy efficiency

VFD-Driven – allows dynamic load control and energy savings

Factory-Charged & Fully Packaged – quick installation

Built in the USA – Carrier Charlotte facility

Applications

Central chilled water plants
Large commercial buildings
Hospitals and data centers
Industrial process cooling
