USED 2012 CARRIER 23XRV5568NRAA50-S

Overview

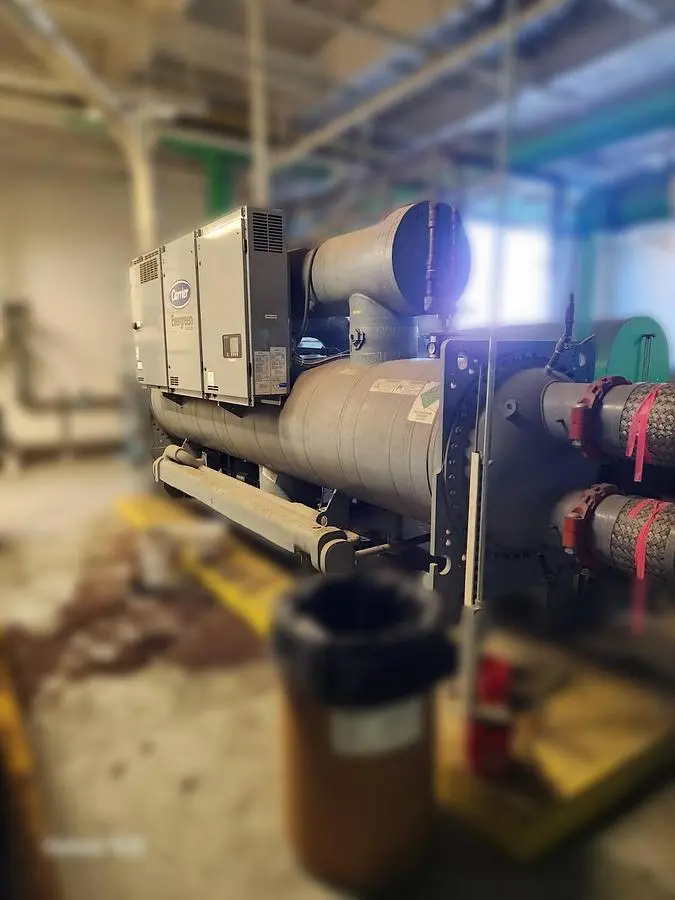

For sale is a Carrier 23XRV Series Water-Cooled Centrifugal Liquid Chiller, model 23XRV5568NRAA50-8, featuring oil-free magnetic bearing technology for ultra-efficient performance. This unit was manufactured in 2012 and is ideal for large commercial or industrial HVAC applications.

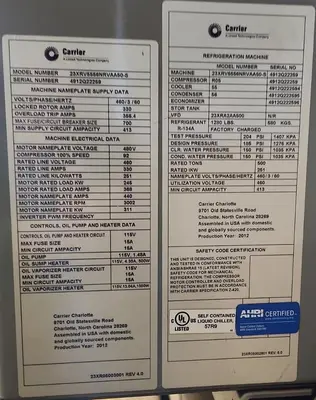

Key Specifications

Model: 23XRV5568NRAA50-S

Serial Number: 4912027226

Capacity: 500 Tons

Refrigerant: R-134a (Factory Charge: 1200 lbs / 580 kg)

Voltage: 460V / 3 Phase / 60 Hz

Compressor Type: Oil-free centrifugal
Design Pressure:
Cooler: 186 PSIG
Condenser: 186 PSIG
Oil: 250 PSIG
Test Pressure:
Cooler: 280 PSIG
Condenser: 280 PSIG
Oil: 300 PSIG

Electrical Specs

Locked Rotor Amps: 705 A

Overload Trip Amps: 366 A

Max Fuse/Breaker Size: 700 A

MCA (Min Circuit Ampacity): 444 A

Motor Nameplate HP: 480V

Compressor Full Load Amps: 366 A

Oil Pump: 115V, 1.4A / 500W

Oil Sump Heater: 115V, 0.9A

Oil Vaporizer Heater: 115V, 10.4A, 1500W

Certifications

AHRI Certified

UL Listed – Self-contained liquid chiller

Assembled in USA – Charlotte, North Carolina

Condition

Year of Manufacture: 2012
Used, professionally maintained
Sold as-is

Applications

Large commercial buildings
Industrial cooling systems
Hospitals and data centers
Central chilled water plants
