Overview

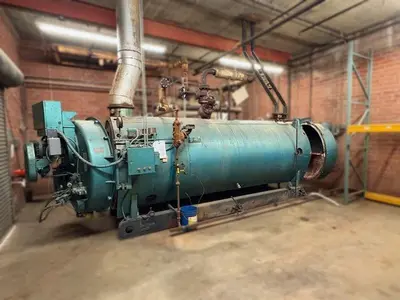

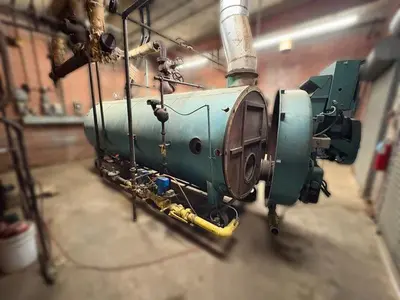

This Cleaver Brooks CB-100-200 packaged steam boiler was manufactured on August 5, 1981. With 200 horsepower capacity (8,369,000 BTU/HR input) and 150 PSI maximum working pressure, this natural gas-fired steam boiler includes integrated burner assembly, 10 HP blower motor, control systems, and factory-insulated jacket on skid-mounted base.
Design and Performance

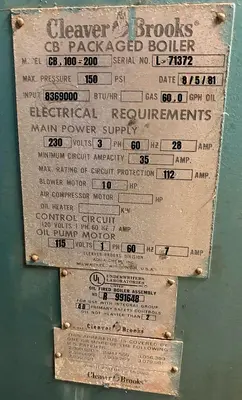

Boiler Specifications:
Manufacturer: Cleaver Brooks
Model: CB-100-200
Serial Number: L-71372
Manufacturing Date: 8/5/81
UL File Number: R-991648
Pressure and Capacity Ratings:
Maximum Pressure: 150 PSI
Input Rating: 8,369,000 BTU/HR
Horsepower: 250 HP (calculated)
Fuel Type: Natural Gas / Diesel.
Blower Motor: 10 HP
Electrical Requirements:
Main Power Supply: 230 Volts, 3-Phase, 60 Hz, 28 Amp
Minimum Circuit Ampacity: 35 Amp
Maximum Rating of Circuit Protection: 112 Amp
Control Circuit: 120 Volts, 1-Phase, 60 Hz, 7 Amp
Oil Pump Motor: 115 Volts, 1-Phase, 60 Hz, 7 Amp
Construction:
Packaged steam boiler design
Insulated jacket panels
Skid-mounted base
Front access door
Rear access panels
Aqua/teal painted finish
Integrated burner assembly
Pressure gauge mounting points
Sight glass ports
System Components:
Cleaver Brooks CB-100-200 steam boiler

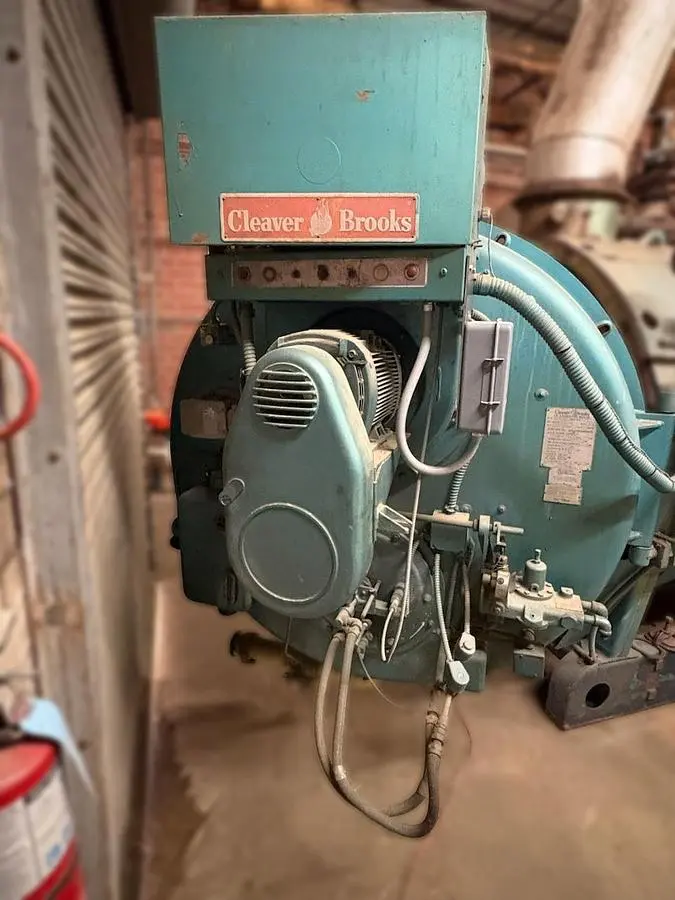

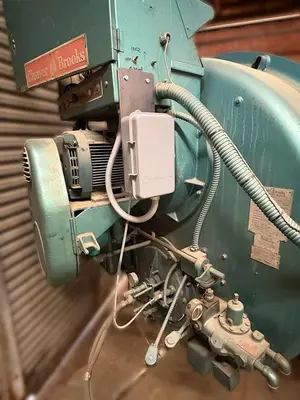

Integrated natural gas burner
10 HP blower motor assembly
Control panel with switches
Oil pump motor system
Pressure gauges
Safety valve
Electrical junction boxes
Insulated jacket panels
Sight glass viewing ports
Valve manifolds and piping connections
Control Features:

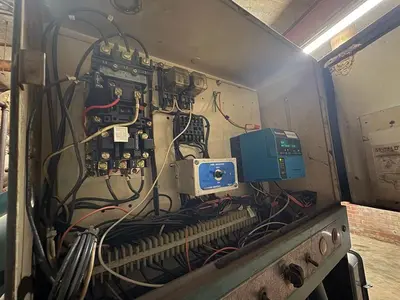

Integrated control panel
Flame safeguard system
Operating indicator lights
Burner management controls
Safety switches
Safety Features:
UL Listed (File #R-991648)
Integral primary safety controls
Pressure relief valve
Flame monitoring
Circuit protection systems
Safety interlocks
Key Specifications
Condition: Used - 1981 Manufacture
Brand: Cleaver Brooks
Model: CB-100-200
Serial Number: L-71372
UL File: R-991648
Manufacturing Date: 8/5/81
Equipment Type: Packaged Steam Boiler
Performance Data:
Horsepower: 200 HP
Input: 8,369,000 BTU/HR
Maximum Pressure: 150 PSI
Fuel Type: Natural Gas diesel
Blower Motor: 10 HP
Electrical Specifications:
Main Supply: 230V, 3-Phase, 60Hz, 28A
Minimum Circuit Ampacity: 35A
Maximum Circuit Protection: 112A
Control Circuit: 120V, 1-Phase, 60Hz, 7A
Oil Pump Motor: 115V, 1-Phase, 60Hz, 7A
Physical Specifications:
Configuration: Packaged steam boiler
Mounting: Skid base
Jacket: Insulated panel construction
Color: Aqua/teal painted finish
Access: Front and rear doors/panels
Burner Specifications:
Type: Integrated natural gas burner
Gas Input: 8,369,000 BTU/HR
Blower Motor: 10 HP
Controls: Flame safeguard system
Ideal Applications
Commercial Buildings
Institutional Facilities
Manufacturing Plants
Schools and Universities
Hospitals and Healthcare Facilities
Office Buildings
Apartment Complexes
Food Processing Plants
Laundries and Dry Cleaners
Warehouses
District Heating Systems
Process Steam Requirements
Industrial Process Applications
Benefits
1981 Cleaver Brooks manufacture
200 HP steam capacity
Natural gas fired / Diesel
150 PSI maximum pressure
8.369 MMBtu input
UL Listed for safety
Packaged design
10 HP blower motor included
Integrated control system
Insulated jacket construction
Skid-mounted base
Factory-assembled unit
Sight glass viewing capability
Front and rear access
Additional Information
Condition: Used - 1981 Manufacture
Manufacturer: Cleaver Brooks,
Model: CB-100-200
Serial Number: L-71372
Manufacturing Date: 8/5/81
UL File Number: R-991648
Capacity Ratings:
Horsepower: 200 HP
Maximum Pressure: 150 PSI
Input: 8,369,000 BTU/HR
Fuel Type: Natural Gas / Diesel
Blower Motor: 10 HP
Electrical Requirements:
Main Power: 230 Volts, 3-Phase, 60 Hz, 28 Amp
Minimum Circuit Ampacity: 35 Amp
Maximum Circuit Protection Rating: 112 Amp
Control Circuit: 120 Volts, 1-Phase, 60 Hz, 7 Amp
Oil Pump Motor: 115 Volts, 1-Phase, 60 Hz, 7 Amp
Construction: Packaged steam boiler with factory-insulated jacket on skid base
Made In: USA (Milwaukee, Wisconsin)
Patents: U.S. Patents 3,205,865, 3,941,566, 3,056,389, 3,079,881
* Brand: Cleaver Brooks
* Model: CB-100-200
* Serial Number: L-71372
* Manufacturing Date: 8/5/81
* UL File Number: R-991648
* Fuel Type: Natural Gas
* Horsepower: 200 HP
* Maximum Pressure: 150 PSI
* Equipment Type: Packaged Steam Boiler
