USED 2010 TOROMONT CIMCO C6-W08AHE

Overview

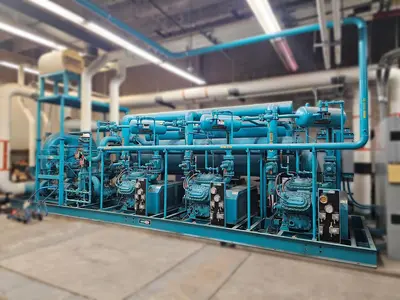

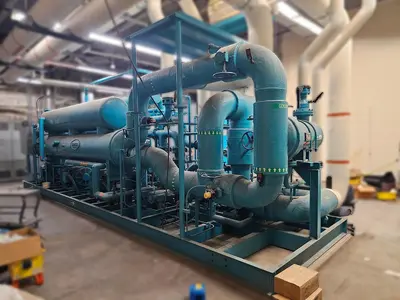

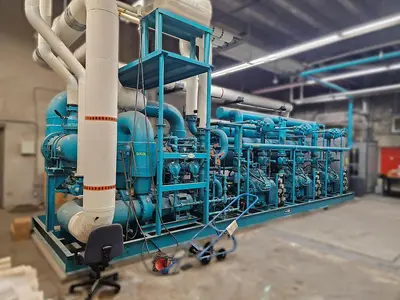

This Toromont CIMCO industrial refrigeration system is a complete skid-mounted chiller package built in 2010. Manufactured in Canada by CIMCO, a division of Toromont Industries Ltd., this system features multiple C6-W08AHE compressors with 300-ton refrigeration capacity, utilizing R-717 (ammonia) refrigerant. The package includes heat exchangers, Armstrong shell and tube units, integrated controls, and a comprehensive piping system, all mounted on a heavy-duty steel frame with turquoise finish.

Design and Performance

Model Components:

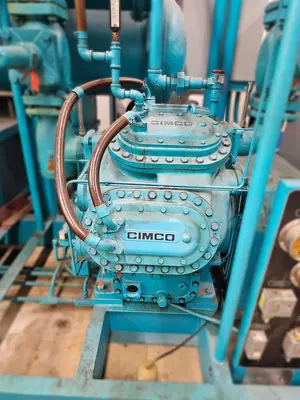

Compressor Units: C6-W08AHE (Serial Numbers visible: 10301, 10302, 10303)
Additional Compressor: C6-W08A (Serial 10303)
Auxiliary Unit: MAP 300 (Serial 8014191)
Heat Exchanger: Armstrong Model WD-183-212-2 (Serial 645592)
Year Built: 2010
Manufacturer: CIMCO - Division of Toromont Industries Ltd., Toronto, Ontario, Canada

Control Features:

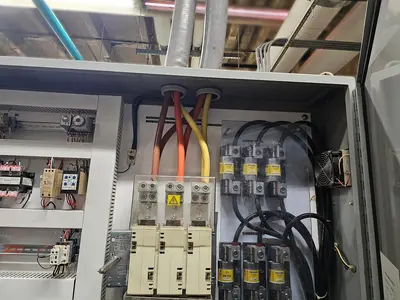

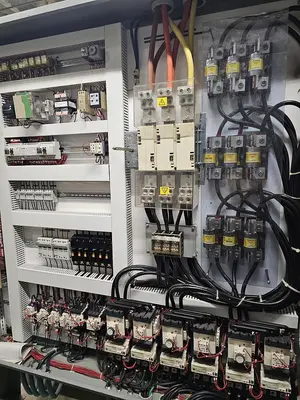

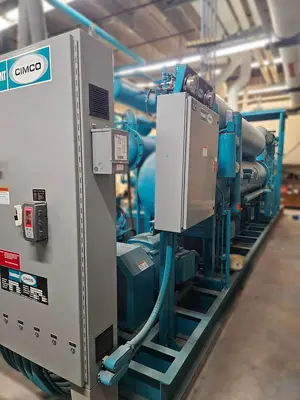

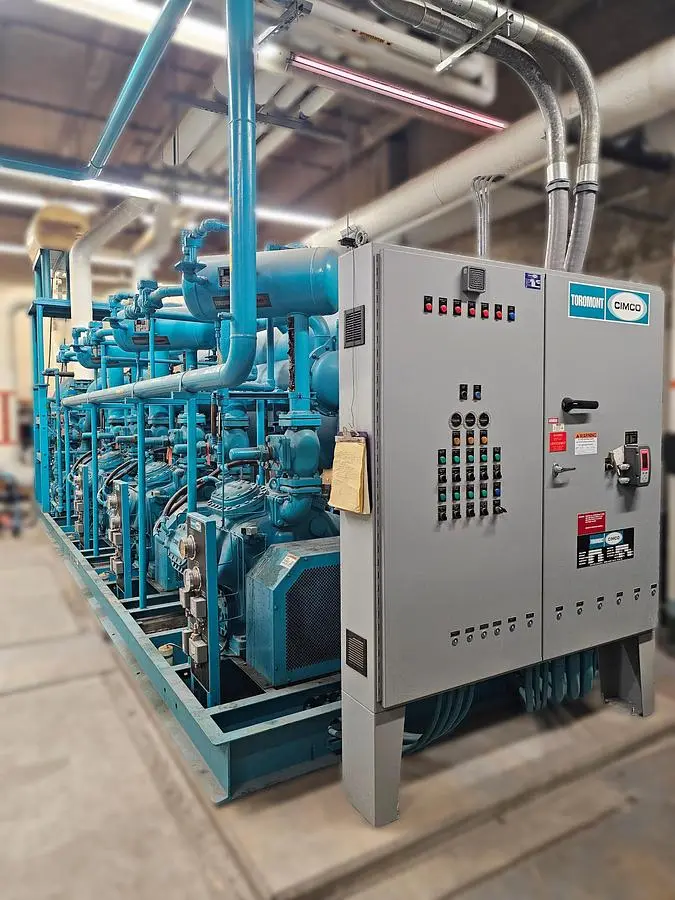

Electrical control panel with CIMCO branding
Individual compressor control stations

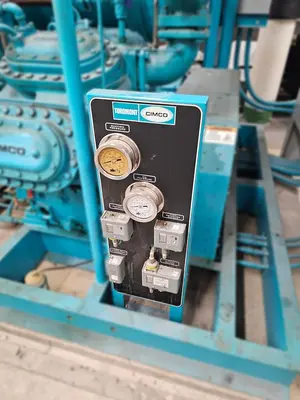

Pressure gauges and indicators
Safety switches
Control buttons and switches
Toromont CIMCO control interfaces

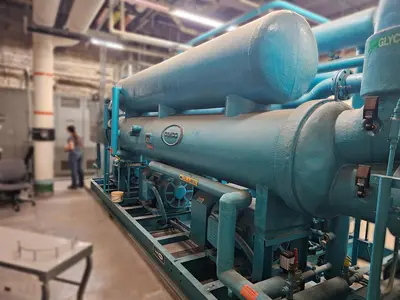

Construction:

Heavy-duty steel skid-mounted frame
Turquoise painted finish
Multiple pressure vessel components
Piping throughout system
Industrial valves and fittings
Safety relief valves

System Components:

Multiple C6-W08AHE compressor units
MAP 300 auxiliary unit
Armstrong WD-183-212-2 heat exchanger
Pressure vessels
Refrigerant piping network
Control electrical panel
Pressure monitoring gauges
Interconnecting piping manifolds
Steel mounting skid

Safety Features:

Pressure relief valves
Pressure monitoring gauges
Safety control systems

Key Specifications

Condition: Used - 2010 Build

Brand: CIMCO (Toromont Industries)

Primary Model: C6-W08AHE Compressor System

Auxiliary Model: MAP 300

Heat Exchanger: Armstrong WD-183-212-2

Year Built: 2010

Equipment Type: Industrial Ammonia Refrigeration System

Refrigeration Capacity: 300 Tons (1055 kW)

Refrigerant Type: R-717 (Ammonia)

Refrigerant Charge: 800 lbs (364 kg)

Prime Movers: 3 x 150 HP (3 x 112 kW)

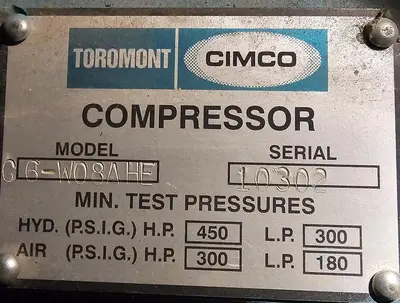

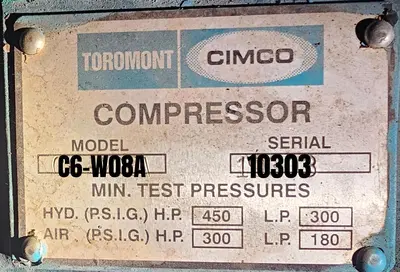

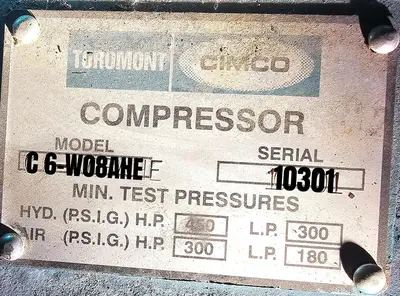

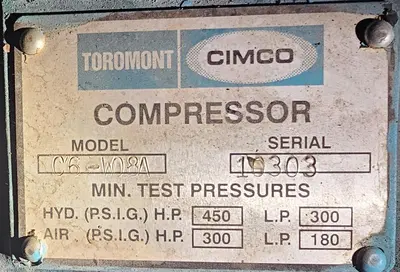

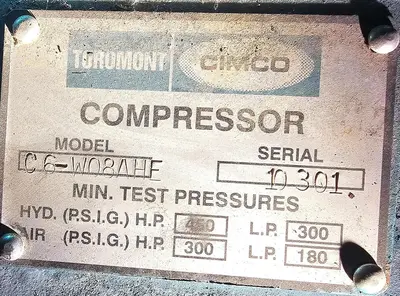

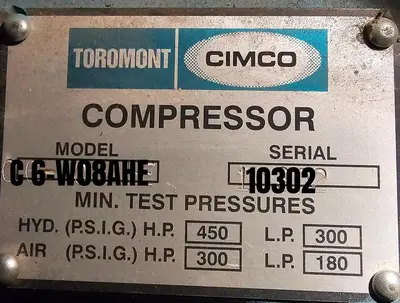

Compressor Specifications (C6-W08AHE Units):

Minimum Test Pressures:
Hydraulic (P.S.I.G.) H.P.: 450 (High Pressure), 300 (Low Pressure)
Air (P.S.I.G.) H.P.: 300 (High Pressure), 180 (Low Pressure)
Serial numbers visible: 10301, 10302, 10303

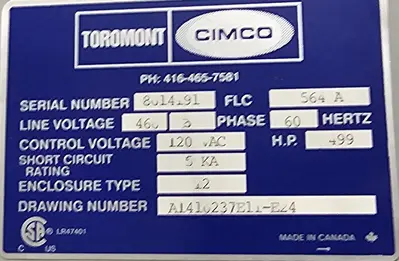

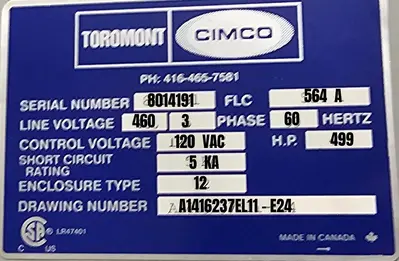

MAP 300 Unit Specifications:

Model Number: MAP 300
Serial: 8014191
FLC: 564 A
Line Voltage: 460V, 3-Phase, 60 Hertz
Control Voltage: 120 VAC
H.P.: 499
Short Circuit Rating: 5 KA
Enclosure Type: 12
Drawing Number: A1416237EL11-E24

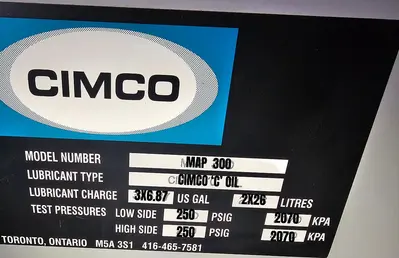

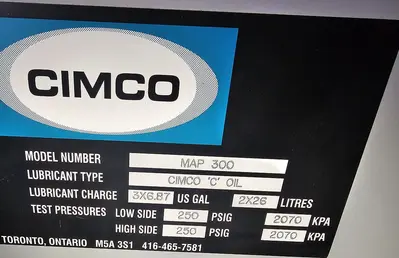

Lubricant Type: CIMCO C OIL
Lubricant Charge: 3 x 6.67 US GAL (2126 Litres)
Test Pressures Low Side: 250 PSIG (2070 KPA)
Test Pressures High Side: 250 PSIG (2070 KPA)

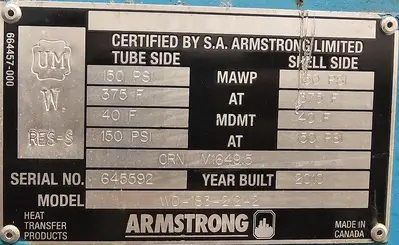

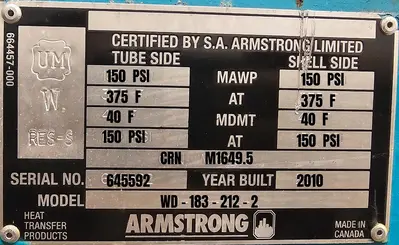

Armstrong Heat Exchanger Specifications:

Manufacturer: S.A. Armstrong Limited
Model: WD-183-212-2
Serial No.: 645592
Year Built: 2010
CRN: M1649.5
Tube Side: 150 PSI at 375°F, MDMT 40°F at 150 PSI
Shell Side: MAWP 150 PSI at 375°F, MDMT 40°F at 150 PSI
ASME U-stamp certified
Made in Canada

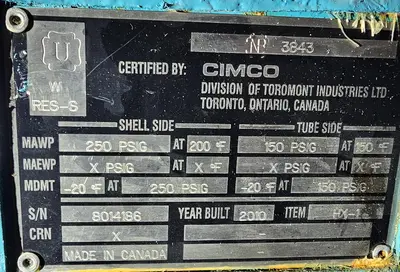

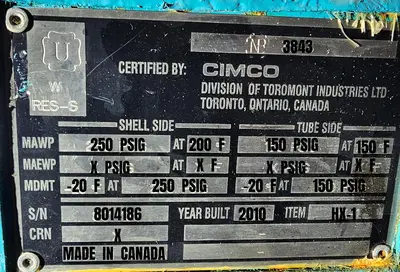

CIMCO Pressure Vessel Data:

National Board No.: 3843
MAWP Shell Side: 250 PSIG at 200°F
MAWP Tube Side: 150 PSIG at 150°F
MDMT: -20°F at 250 PSIG (Shell), -20°F at 150 PSIG (Tube)
Serial No.: 8014186
Year Built: 2010
Item: HX-1
Made in Canada
Certified by: CIMCO Division of Toromont Industries Ltd., Toronto, Ontario, Canada

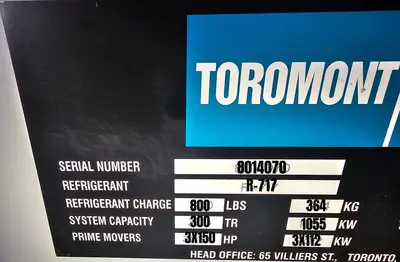

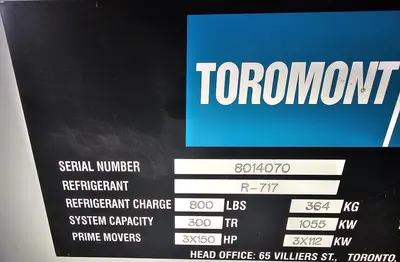

Chiller System Data (Toromont):

Serial Number: 8014070
Refrigerant: R-717
Refrigerant Charge: 800 LBS (364 KG)
System Capacity: 300 TR (1055 KW)
Prime Movers: 3 x 150 HP (3 x 112 KW)

Electrical Specifications:

System Voltage: 460V, 3-Phase, 60Hz
Control Voltage: 120 VAC
FLC (MAP 300): 564 A
Short Circuit Rating: 5 KA

Physical Specifications:

Skid-mounted industrial configuration
Turquoise painted steel framework
Multiple compressor arrangement
Integrated piping manifolds
Control panel mounted on frame
Heavy-duty steel base construction

Ideal Applications

Large-Scale Food Processing
Cold Storage Warehouses
Ice Rink Facilities
Industrial Process Cooling
Chemical Processing Plants
Brewery Operations
Pharmaceutical Manufacturing
Large Commercial Buildings
Data Center Cooling
Manufacturing Process Cooling
District Cooling Systems
Food Distribution Centers

Benefits

2010 Canadian manufacture
300-ton refrigeration capacity
Ammonia (R-717) refrigeration system
Multiple compressor configuration
Complete skid-mounted package
Armstrong heat exchanger included
ASME certified
Heavy-duty industrial construction
Integrated control systems
Ready for installation
Proven Toromont CIMCO design
Canadian-built quality

Additional Information

Condition: Used - 2010 Manufacture

Manufacturer: CIMCO - Division of Toromont Industries Ltd.

Location: Toronto, Ontario, Canada

Model Numbers: C6-W08AHE, MAP 300, WD-183-212-2

Serial Numbers: 10301, 10302, 10303, 8014191, 8014186, 645592, 8014070

National Board Number: 3843

Pressure Rating: 150-250 PSI depending on component

Refrigerant: R-717 (Ammonia)

Refrigerant Charge: 800 lbs (364 kg)

Capacity: 300 Tons (1055 kW)

Total Horsepower: 499 HP (MAP 300 unit)

Prime Movers: 3 x 150 HP (3 x 112 kW)

Installation Type: Skid-mounted industrial package

Finish: Turquoise painted steel

Control System: Integrated 460V 3-phase with 120V controls

Certification: ASME U-stamp, CRN M1649.5

Made In: Canada
